Meaning of the LEDs at the initialisation phase: when the tool is started, the CPUCVIC initialises and checks
all the slave MODCVICs that are connected.
During this phase, the LEDs provide the following information:
LEDs 5 to 9 number of module checked (in binary coding, Led 9 = bit 1).
LEDs 1 to 4 status of module checked (in binary coding, Led 4 = 1 bit).
1 initial status.
15 module checked and in operation.
Numbers 2 to 14 indicate intermediate initialisation phases.
When this procedure is over, Led 1 (ready) and the Led which corresponds to the number of the selected cycle
light up.
ready to operate
motor running
torque and angle within tolerances
error different from «torque and angle out of
tolerances» (e.g.: SCY stop during the cycle)
number of cycle in progress
3.2.3 - CPUCVIC LEDs

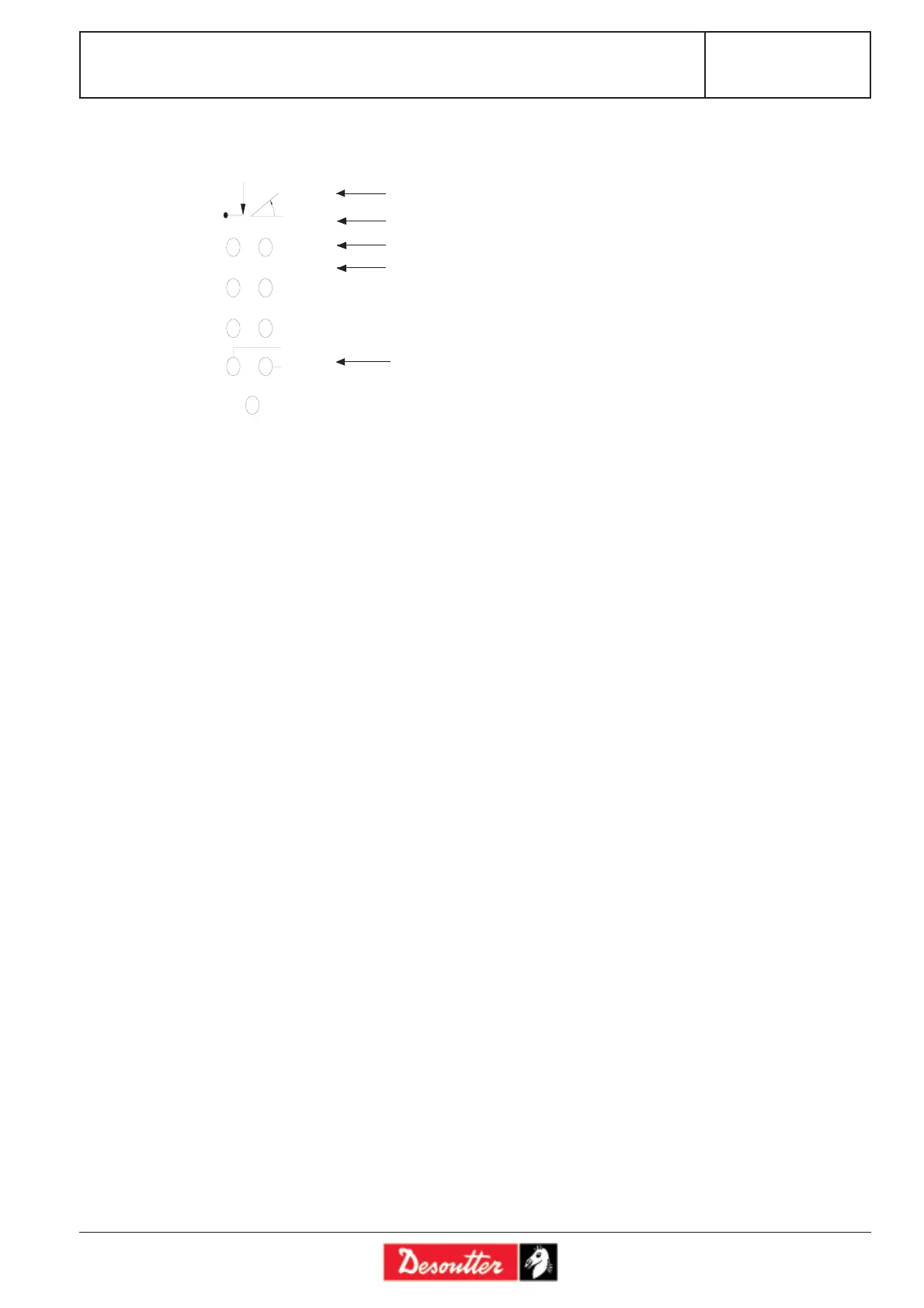

The LEDs show the operation of the slave MODCVICs that are connected:
N O K
O N
R E A D
M I N
M A X
O K
=
