General instructions:
All connections between the filter and the servodrives shall be provided by means of shielded cables. At the passage
of these cables through an electrical component (contactor, circuit-breaker, etc.), ground the shielding as shortly as
possible through a grounding rod.
It is also necessary to shield the 230 V feeder cable of the control part if it is close to other disturbing cables. It must
be noted that an input filter is integrated in the MODCVIC for this control part.
Connect the shielding of motor cables to the cabinet ground (at the cabinet input). This contact can be made by
stripping the cable on a short length and securing it to a grounding rod by means of a clamp.

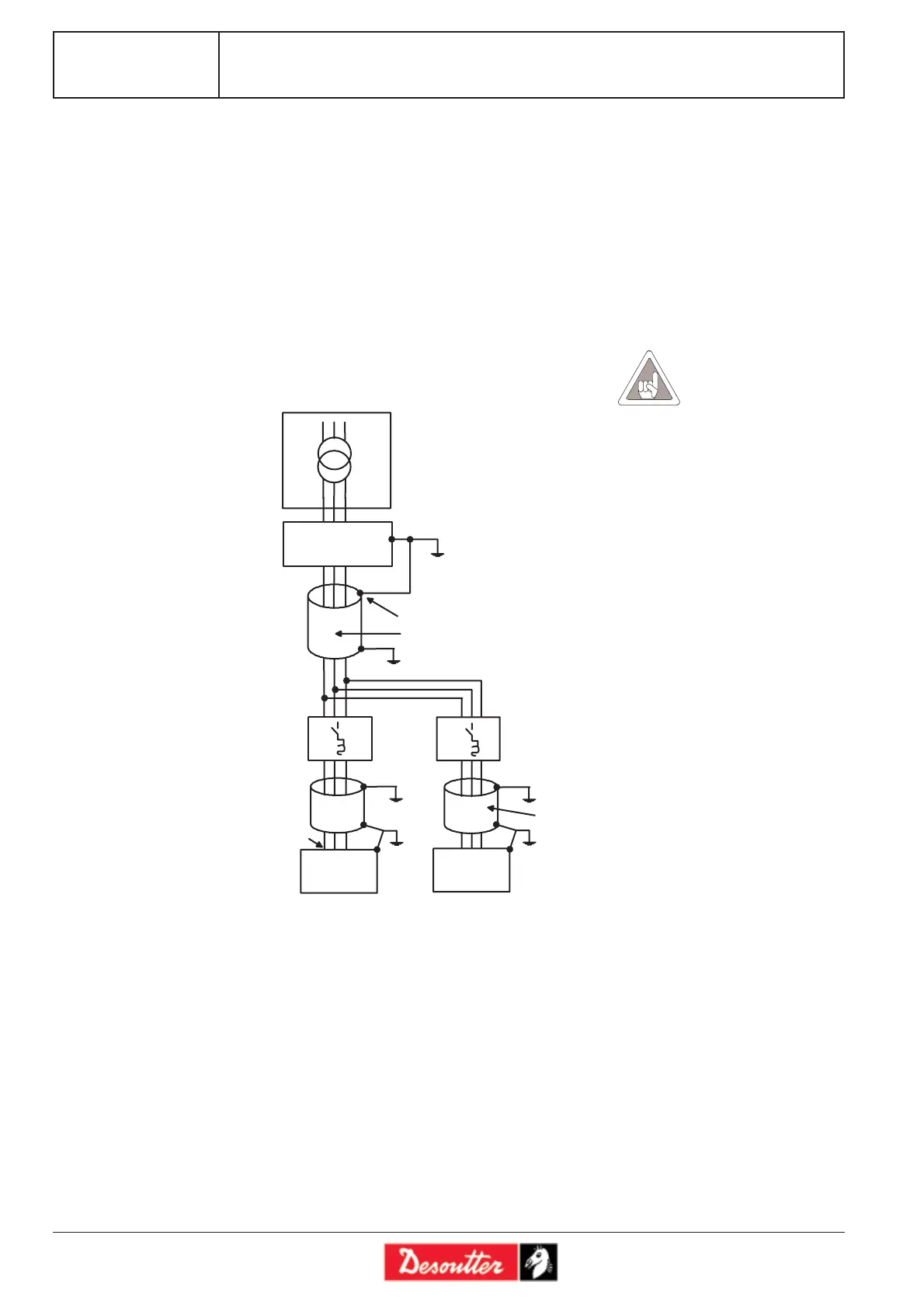

MODCVIC 1
MODCVIC 2
Three-phase main power
Supply 115 V or 230 V
Transformer
1 kVA per channel
Input filter
Shielding
Magneto-thermal
circuit breaker
Main power supply
Shielded cable 3x2.5 mm²
Shielded cable 3x2.5 mm²
The transformer
must comply with
EN 61558.
