User Manual DEV 2190
46 Copyright DEV Systemtechnik GmbH 2009-2017
Note:
If changes of settings (which are to be saved explicitly) are applied in a panel of
the Control Tab (or within an entry of the Setup Tab, please refer to
chapter 5.4.7), they are highlighted in yellow. If a different panel within the
Control Tab (or if a different entry within the Setup Tab) is selected without
saving the change(s) in the current panel or entry, a corresponding warning

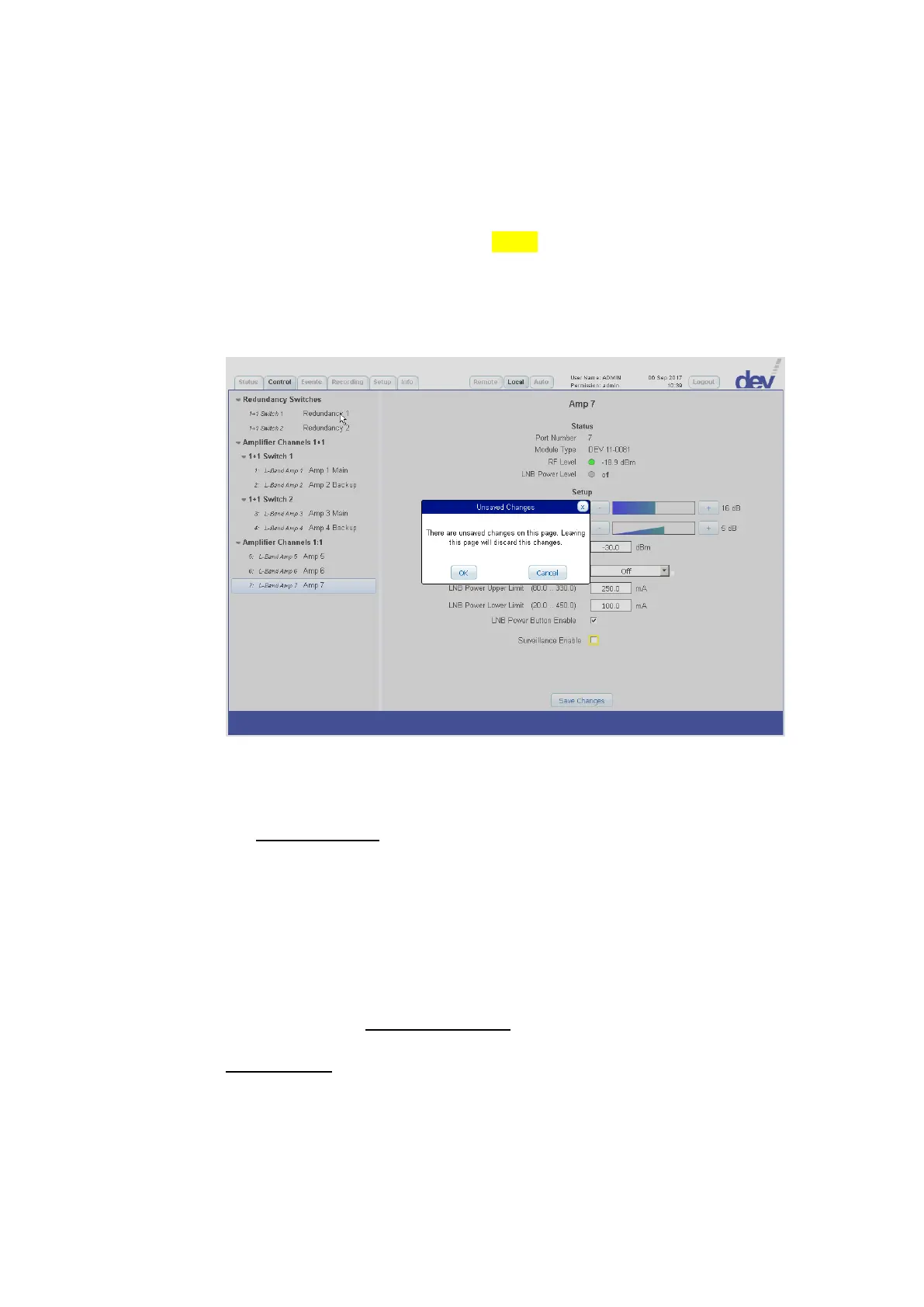

message pops up. The following figure shows this situation for selecting the
"1+1 Switch 1" panel after deactivating the "Surveillance Enable" check box in the
"7: L-Band Amp 7" panel:
On the left side of the Control Tab the appearing functionality items, the
appearing module functionality with the entity counting, and the appearing
default descriptive designator naming are dependent on the configuration and
on the module population of the device:
The functionality item "Redundancy Switches" appears only for devices with applied
redundancy switching functionality; these devices provide a second
functionality item: "Amplifier Channels 1+1". These functionalities are subdivided for
each redundancy unit, here the sub-functionality items "1+1 Switch 1" and
"1+1 Switch 2" are shown containing the amplifier modules being member of the
corresponding redundancy unit.
If no redundancy switching functionality is installed or if there are installed
additional amplifier modules being not part of a redundancy unit, the
(additionally) appearing functionality item is "Amplifier Channels 1:1".
With respect to the module functionality, the switch functionality of a
redundancy unit is named "1+1 Switch X". The "X" in "1+1 Switch X" indicates the
entity counting, i.e. the number of the redundancy unit. The module
functionality of amplifier modules is named "P: L-Band Amp P".
The "P" indicates the port number (and the entity counting) of the module
functionality, as a reference to the index of the SNMP .portTable (chapter
5.5.4.3.9) and if port specific error messages are to be identified within the
Events Tab (chapter 5.4.5). Only slots are considered in counting which are
