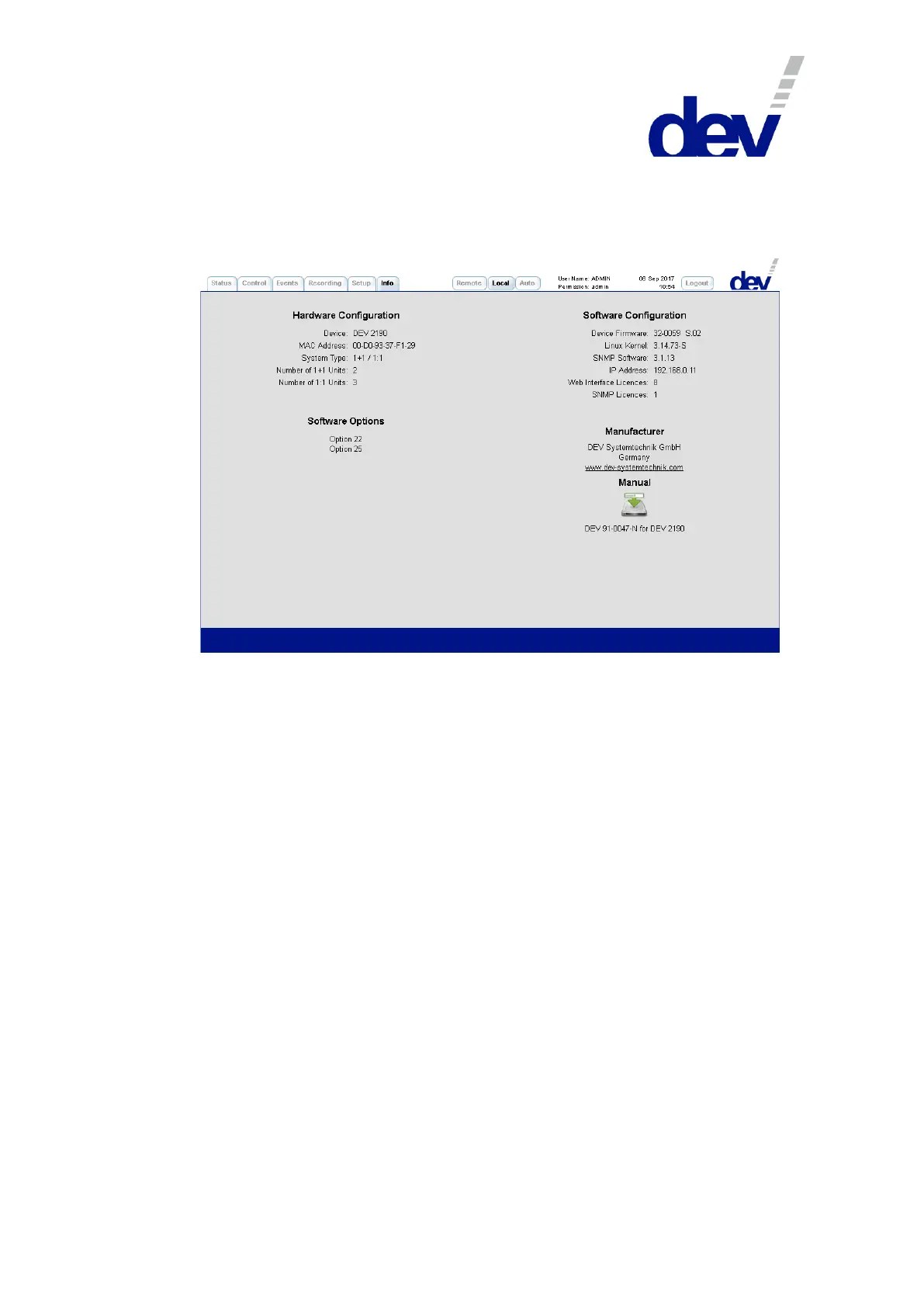

5.4.8 Info Tab
The Info Tab provides information regarding configuration and setup of the device.
This information is mainly intended for support purposes; part of this information
may be requested when contacting DEV Systemtechnik.
In the left column, first the "Hardware Configuration" is described:
Device, here: DEV 2190
MAC Address, here: 00-D0-93-37-F1-29
System Type, here: 1+1 / 1:1
• since this is a mixed system, the number of 1+1 redundancy units (here: 2)
and of amplifier modules in 1:1 configuration (here: 3) are listed.
The second section in the left column describes the "Software Options"; here the
device is equipped with Option 22 and with Option 25.
In the right column on the top, the "Software Configuration" is described:
Device Firmware version, here: 32-0059 S.02
Linux Kernel version, here: 3.14.73-S
SNMP Software version, here: 3.1.13
the current IP Address of the device, here: 192.168.0.11
Web Interface Licenses, here: 8
SNMP Licenses, here: 1
An icon is located on the bottom of the right column for downloading the elec-
tronic version of the user manual.
Finally, in the right column in the middle the manufacturer's name, country, and
hyperlink are listed.
