System statusLEDs
Digi devices have several LEDsthat indicate system status, link activity, port activity, and diagnostics.

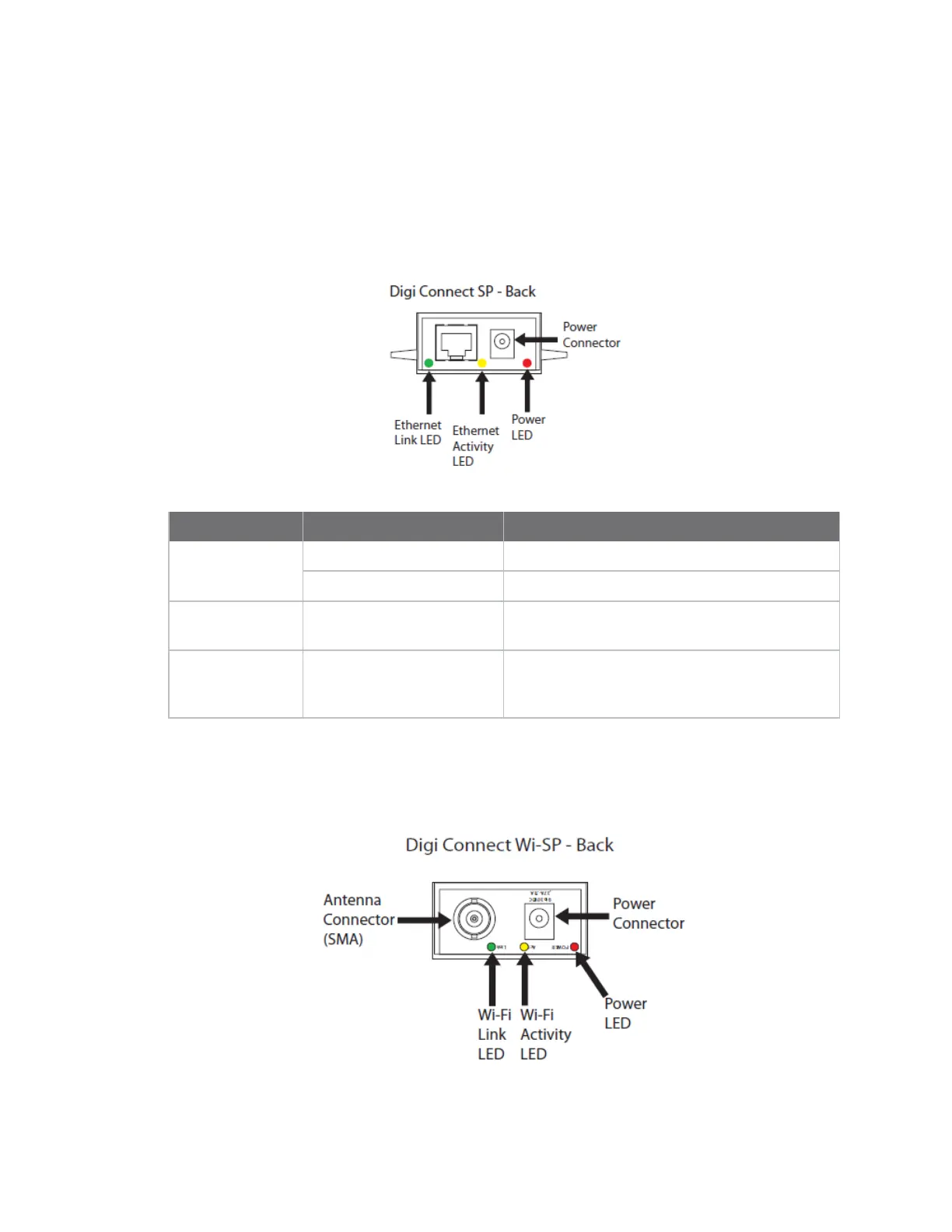

Digi Connect SP
Digi Connect SPhas three LEDs: Ethernet Link and Ethernet Activity, which are connected directly to
the hardware; and thePower LED, which issoftware programmable.
LED/button Color and Light Pattern Description
Ethernet Link LED Off Ethernet link isnot powered or down.
Solid green Ethernet link isup.
Ethernet Activity
LED
Blinking yellow Ethernet traffic is on the link.
Power LED Red (labeled PWR) This LEDissoftware programmable. By default,
thisLEDindicatespower (and is therefore always
on).
Digi Connect WI-SP
Digi Connect Wi-SPhas three LEDs: Wi-Fi Link and Wi-Fi Activity, which are connected directly to the
hardware; and the Power LED, which issoftware programmable.
