Get started with Digi Connect and ConnectPort TS
Family products
ConnectPort TS8/16: Verify thecomponentsand connect
the hardware
Digi Connect Family and ConnectPort TSFamily
23
will be needed if thedevice isfactory reset and you want to access the web UI on the
device or to register the device with Digi Remote Manager. If the device was already
registered with Remote Manager at the timeof the factory reset, you do not need the
unique password to access the device in Remote Manager.

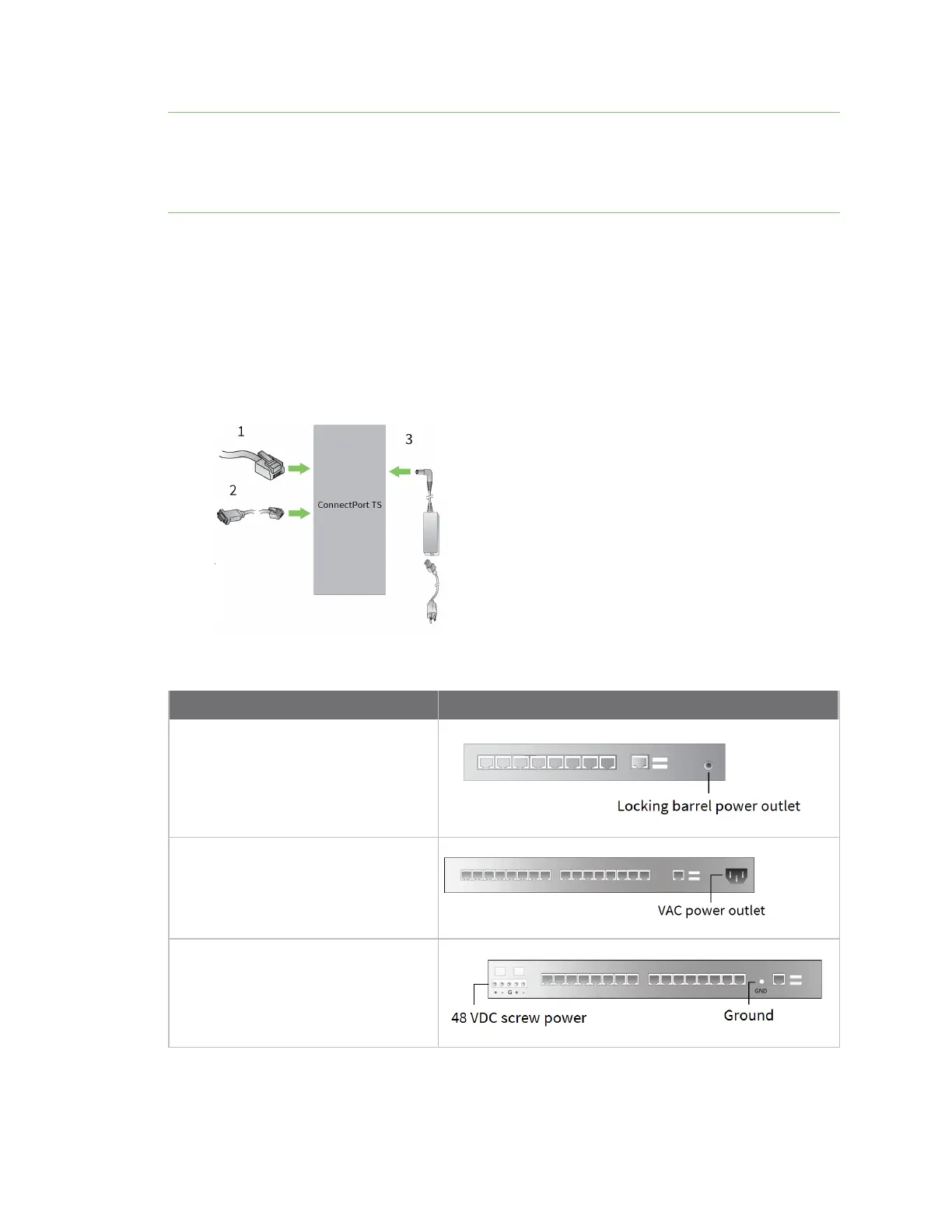

Connect the ConnectPort TS hardware
This section explainshow to connect the ConnectPort TShardware.
1. Connect theEthernet cable.
2. Connect theserial devices. For pin-position information, see Pin positionsfor serial devices
connected to a ConnectPort TS.
3. Connect thepower supply.
Power supply connection points:
Model Power supply
ConnectPort TS8 (EIA-232 and
MEI models)
ConnectPort TS16 (EIA-232 and
MEI AC models)
ConnectPort TX16/48 VDCmodel
