Get started with Digi Connect and ConnectPort TS
Family products
ConnectPort TS8/16: Verify thecomponentsand connect
the hardware
Digi Connect Family and ConnectPort TSFamily
24

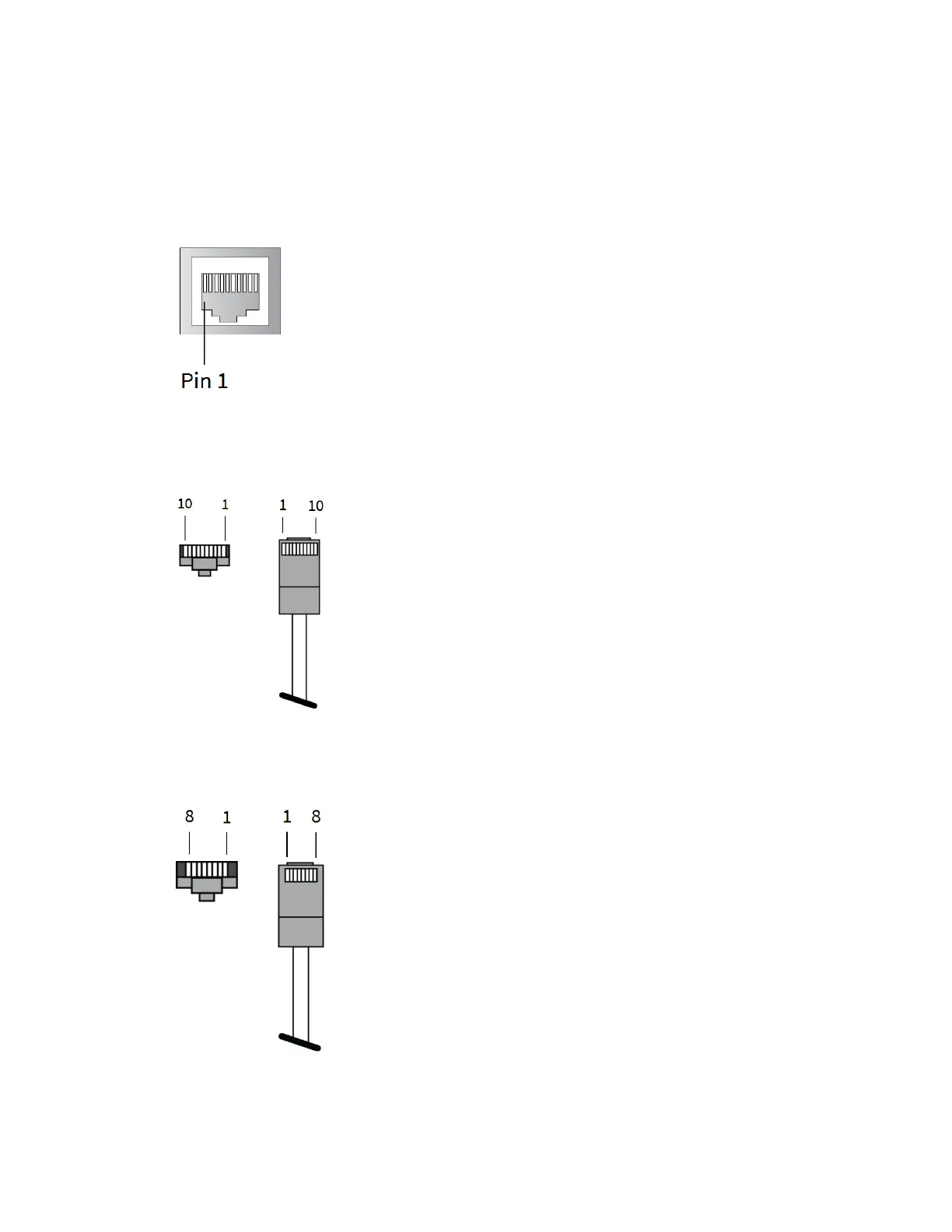

Pin positionsfor serial devicesconnected to a ConnectPort TS
This section shows the pin positionsfor serial devicesconnected to your device.
10-wire jack (female)
ConnectPort TSproducts use an RJ-45 10-wire jack (female), with Pin 1in the following location:
10-wire connector (male)
8-wire connector (male)
