Hardware Replace Connect EStime-lag fuses

Digi Connect Family and ConnectPort TSFamily

162

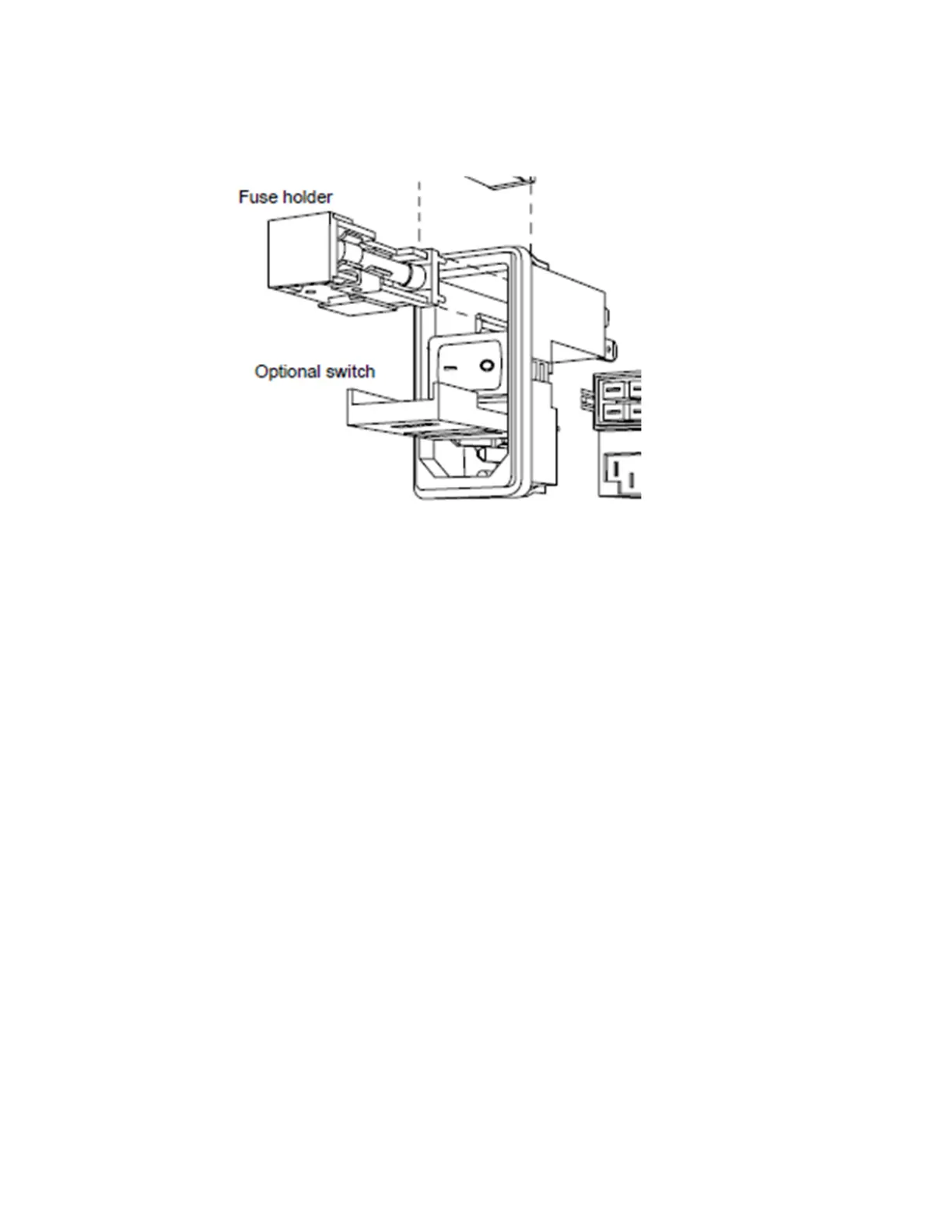

3. Lift the fuse holder from the Connect ESdevice using the screwdriver.

4. Remove both 5 x 20 mm fuses. You can then discard the ceramic 5 x 20 mm fuses.
