23 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

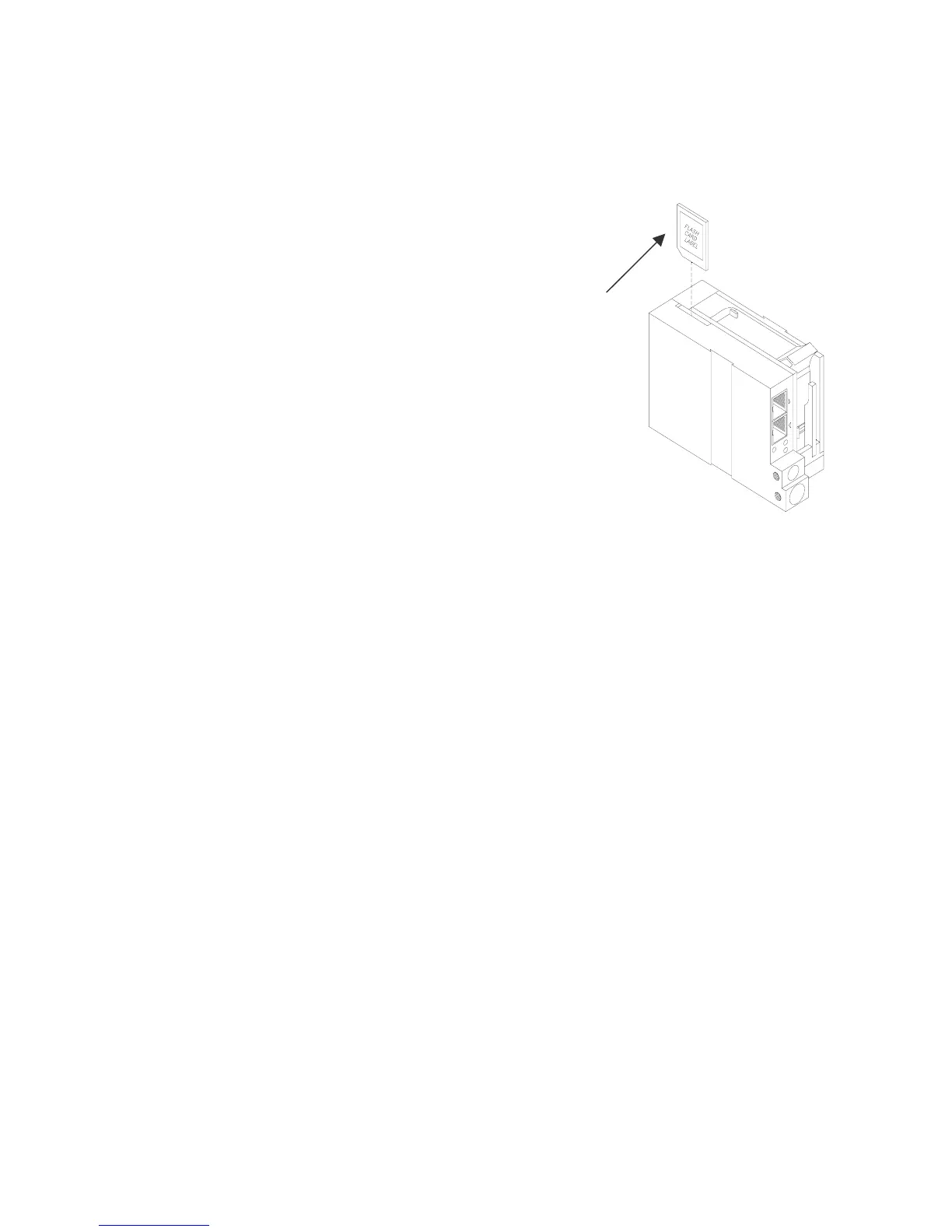

NOTE: THE FIGURE BELOW SHOWS THE CORRECT
ORIENTATION FOR INSERTING THE DATA FLASH CARD.
NOTE:
There are four fonts loaded into the EVOLUTION II printer
at any one time. Loading a new font will overwrite the existing
font or fonts. Print starts at the bottom nozzle of the print head
(dot 150 for line 2) and at the middle of the print head (dot 75 line
1). The printer is shipped with a 1/2” font, a 7/32” font, a 1/8” font
and a 3/32” font. The 1/2” font may be replaced with other than a
1/2” tall character. Alternate fonts that are loaded replace the
existing fonts. Inserting a data flash card containing alternate
fonts and cycling the power will temporarily use the alternate
fonts on the data flash card until the card is removed and either
the power is cycled or the print station is set to the STOPPED
mode. This eliminates the need to load the alternate font using
the LOAD CARD option.
INSERT THE DATA FLASH CARD INTO THE
SLOT PROVIDED AT THE TOP OF THE PRINT
CARRIAGE AS SHOWN. NOTE THE
ORIENTATION OF THE LABEL ON THE CARD.
PRESS THE CARD COMPLETELY INTO THE
SLOT. THE CARD SHOULD BE REMOVED
AFTER USE AND STORED IN A SAFE PLACE.
ONCE LOADED (FONTS & OPTIONS) THE CARD
IS SECURITY LOCKED WITH THE SERIAL
NUMBER OF THE PRINTER CARRIAGE AND
WILL NOT OPERATE IN ANOTHER PRINT
CARRIAGE.
