Page 84
Chapter 4
Installation Instructions
2. Make sure that the remote control batteries are fresh, and are installed
properly. If needed, make sure that the remote is in SAT mode to
control the satellite receiver.
3. Turn ON the television and receiver.
4. Display the
Point Dish and Signal Strength menu by pressing
MENU and then 6-1-1 (unless the receiver already displays this
menu).

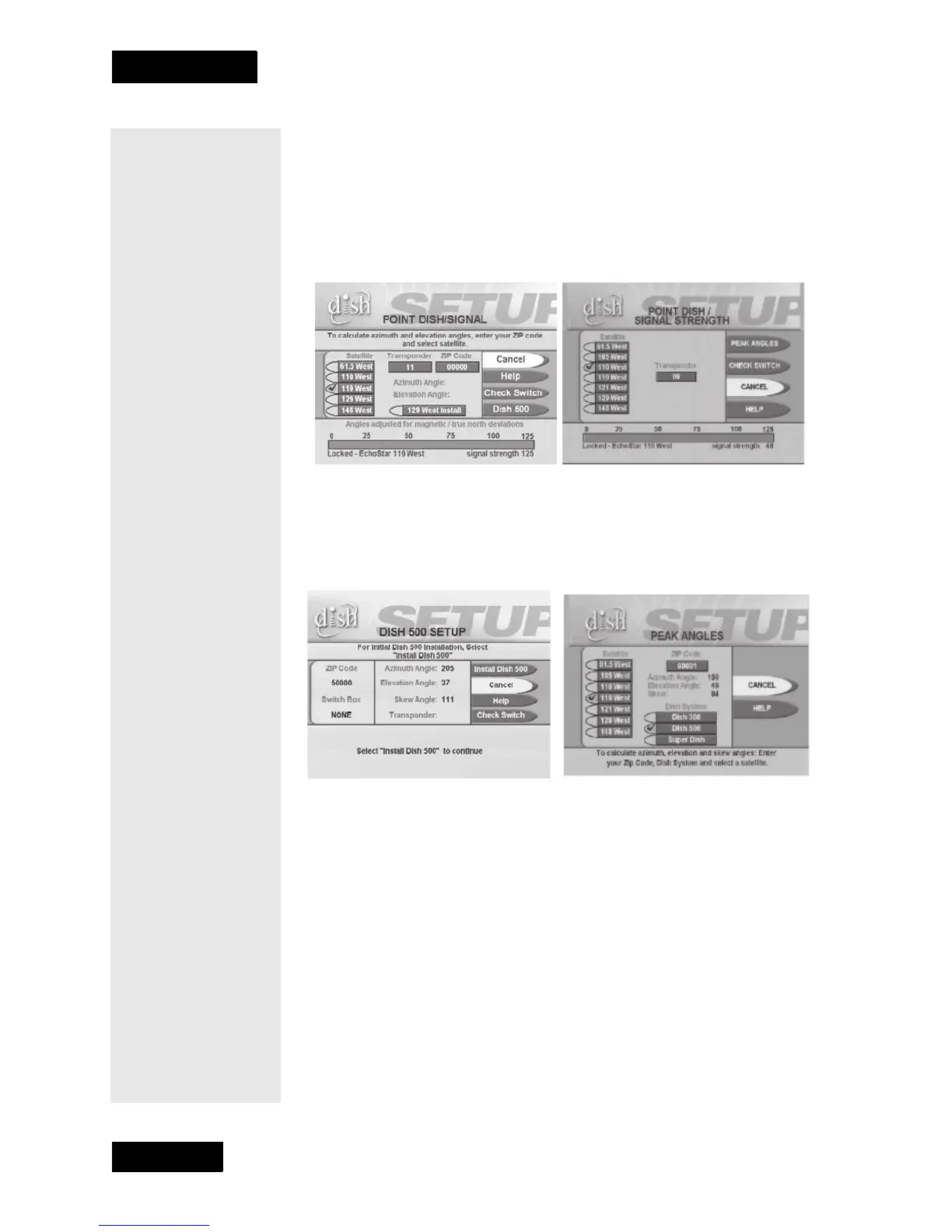

5. If your Point Dish/Signal screen looks like the one on the left,
continue to the next step. If your Point Dish/Signal screen looks like
the one on the right, select
Peak Angles.
6. Enter your ZIP code in the
ZIP Code field.
7. Select the
Dish 500 option.
8. The menu displays the azimuth, elevation, and skew angles. Write
down these numbers in the blanks provided in the margin.
9. Select
Cancel to exit out of this menu and return to the Point
Dish/Signal
menu.
10. Go to Mounting the Dish on page 85.
Azimuth: _________
Elevation: ________
Skew: ___________
