Distech Controls ECL-PTU Series User Manual

45ECL-PTU-207 Preloaded Applications
Bindings

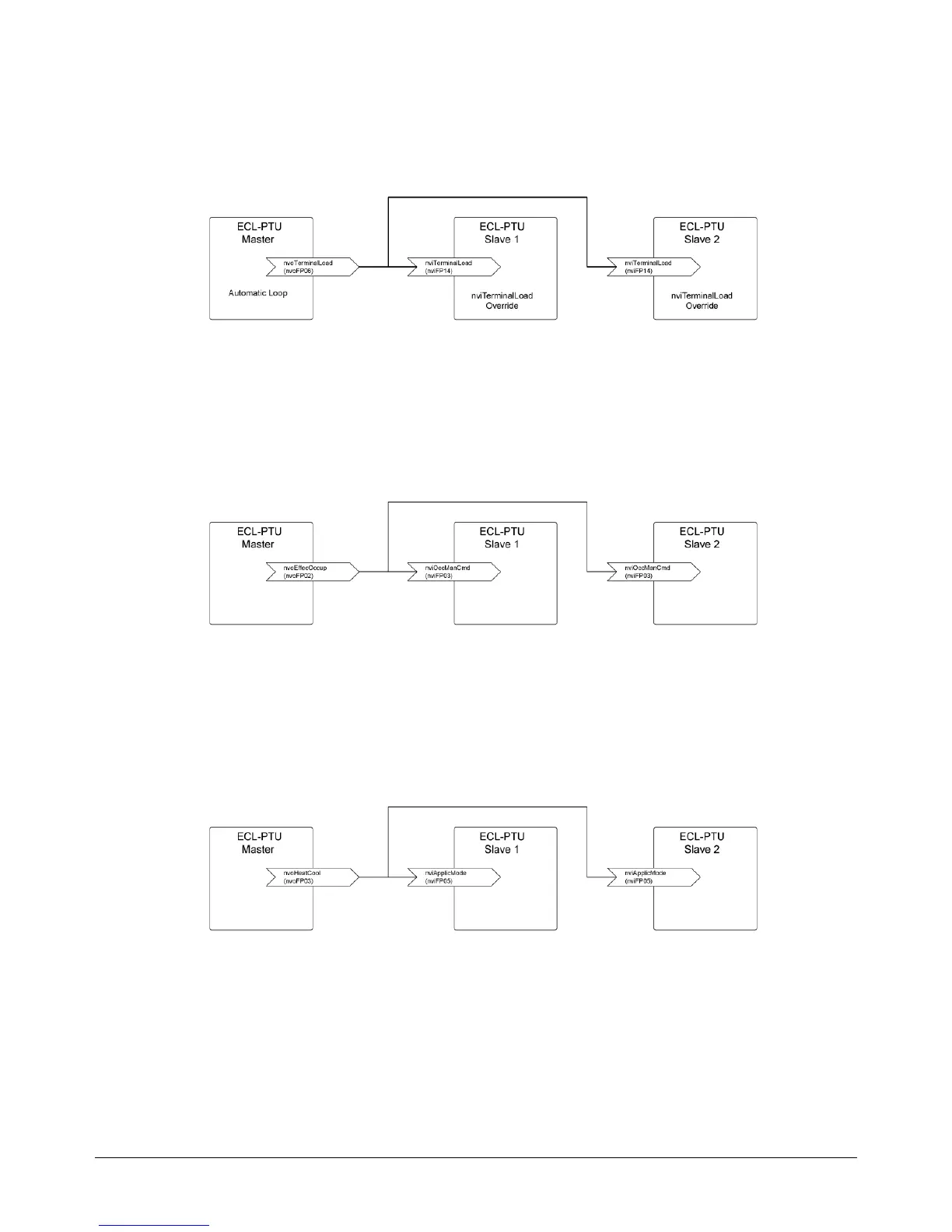

nvoTerminalLoad Bindings
Using nvoTerminalLoad, the master can control all the equipments in parallel
Figure1: nvoTerminalLoad-Bindings
nvoEffectOccup Bindings
Using nvoEffectOccup, the master can control the occupancy of slave controllers by linking nvoEffec-
tOccup to nviOccManCmd of slave controllers.
Figure2: nvoEffectOccup-Bindings
nvoHeatCool Bindings
Using nvoHeatCool, the master controller can make sure that all the controllers in a zone are con-
trolled based on the same operating mode.
Figure3: nvoHeatCool-Bindings
Master/Slave Control
