47ECL-PTU-207 Preloaded Applications

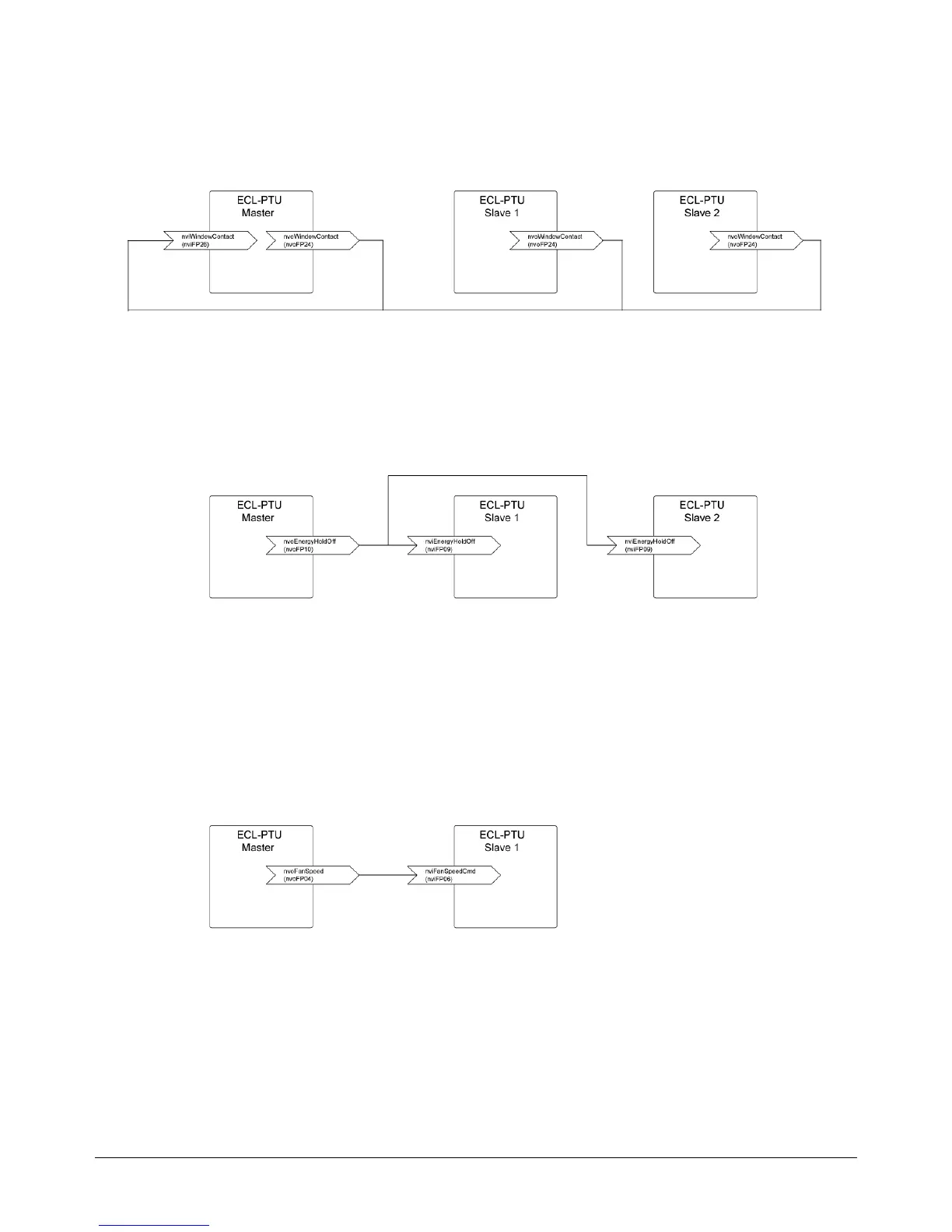

nvoWindowContact Bindings
All the controllers, including the master itself must send their nvoWindowContact to the variable nvi-
WindowContact of the master controller. The master will use these values to calculate the nvoEnergy-
HoldOff.
Figure7: nvoWindowContact-Bindings
nvoEnergyHoldOff Bindings
Using nvoEnergyHoldOff, the master can synchronise the energy hold off value between controllers
when a window is open in the zone.
Figure8: nvoEnergyHoldOff-Bindings
FanSpeed Bindings
nvoFanSpeed
Using nvoFanSpeed, the master send FanSpeed value to every slave via nviFanSpeedCmd.
Figure9: nvoFanSpeed
Master/Slave Control
