46 ECL-PTU-207 Preloaded Applications

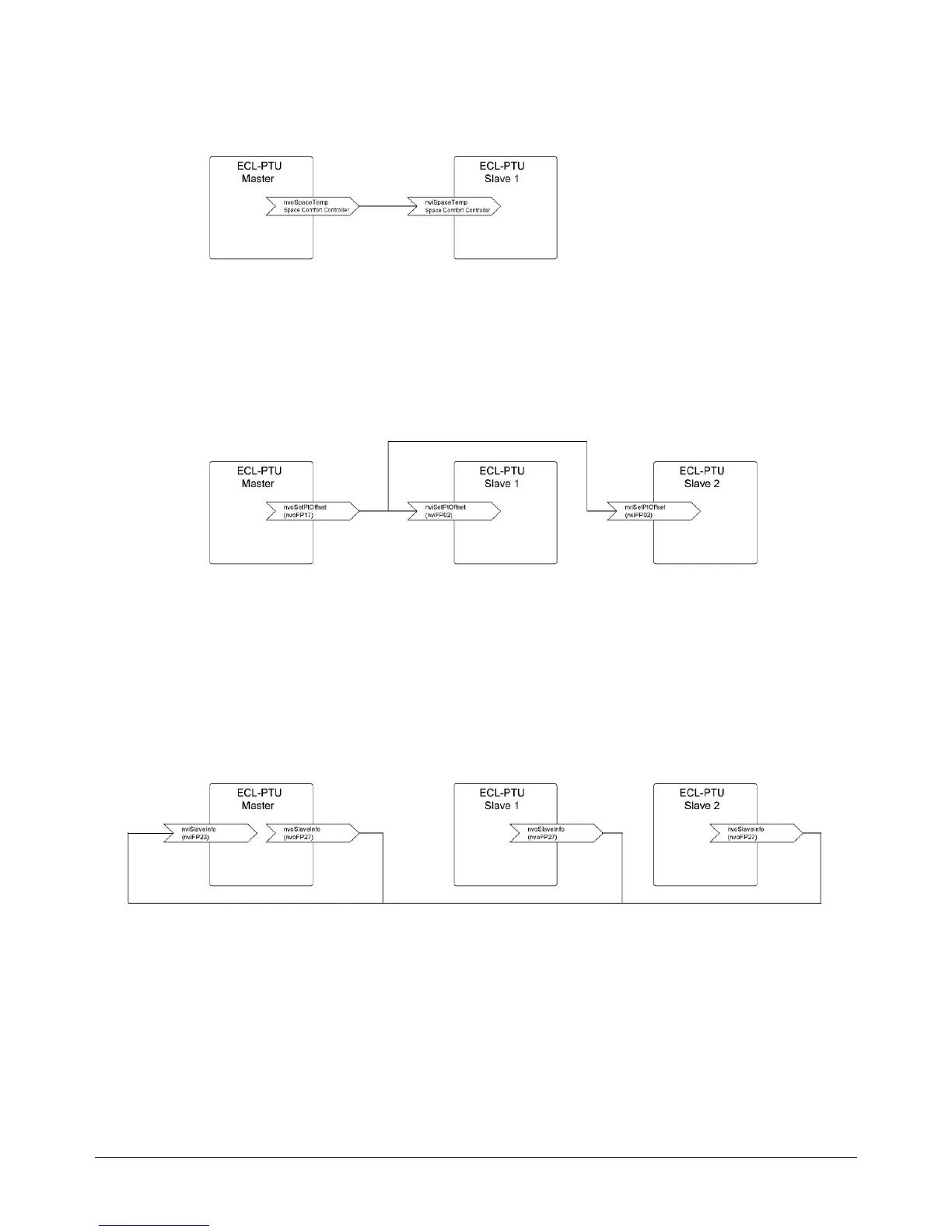

nvoSpaceTemp Bindings
Using nvoSpaceTemp, the master can transfer it’s own temperature to all the slaves in the zone.
Figure4: nvoSpaceTemp-Bindings
nvoSetPtOffset Bindings
Using nvoSetPtOffset, the master can transfer the setpoint offset to all the controllers in the zone. The
master will always output the last valid value received via nviSlaveInfo.
Figure5: nvoSetPtOffset-Bindings
nvoSlaveInfo Bindings
All the controllers, including the master itself must send their nvoSlaveInfo to the variable nviSlaveInfo
of the master controller. The master will use this variable to calculate occupancy detection and all
other relevant information.
Figure6: nvoSlaveInfo-Bindings
Master/Slave Control
