Using the dcgfxApplications
This chapter explains how to access the preloaded applications using EC-Net Pro and how to navigate
the dc gfx Applications interface. Various aspects of the dc gfx Applications interface are explained, in-
cluding how to configure equipment settings and setting up trends to be followed.
Accessing the Preloaded Applications with EC-Net Pro
The ECL-PTU Series preloaded applications can be found in the dc gfx Applications module in the
template side bar.
Certain elements must be installed on the EC-Net platform being used, namely:
£ EC-Net Support Package
£ dcImages
£ Haystack tagging
£ dcgfxApplications
For information on how to prepare an EC-Net station and how to install the dc gfx Applications palette
or module in an EC-BOS, refer to the Productivity Enhancing Tools User Guide .
To access the preloaded applications of an ECL-PTU controller, it must be first created in the BcpLon-
Network driver of the configured station and then matched with an existing device in the BcpLonNet-
work. The following procedure explains how to add devices to a configured station and then how to
match them with existing devices in the network:

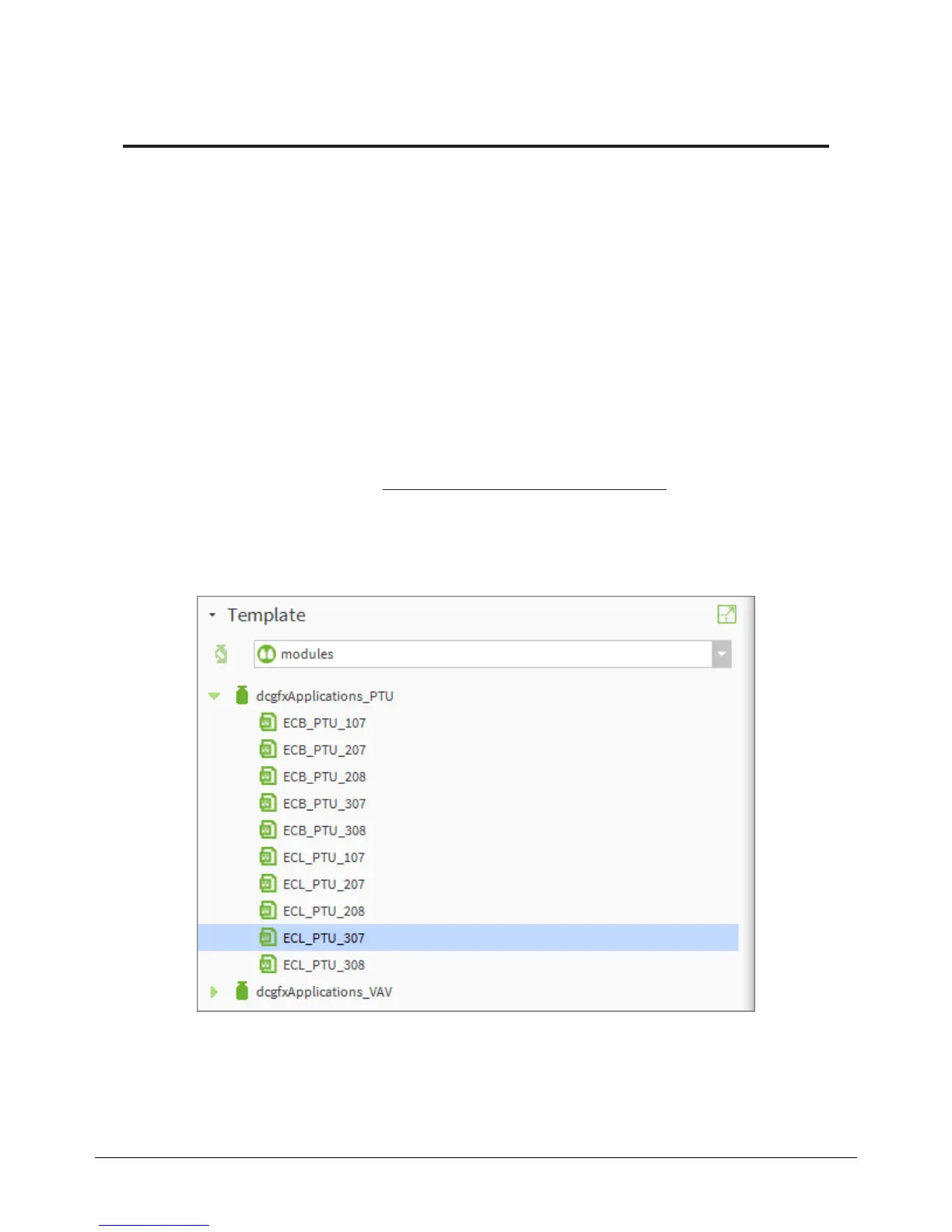

1. Open the gfxApplications modules folder in the template sidebar
Using the dcgfxApplications
