67ECL-PTU-207 Preloaded Applications
Discharge Air Configuration
The
Discharge Air Configuration
subsection allows the user to adjust discharge air settings such as
discharge air limits and setpoints.

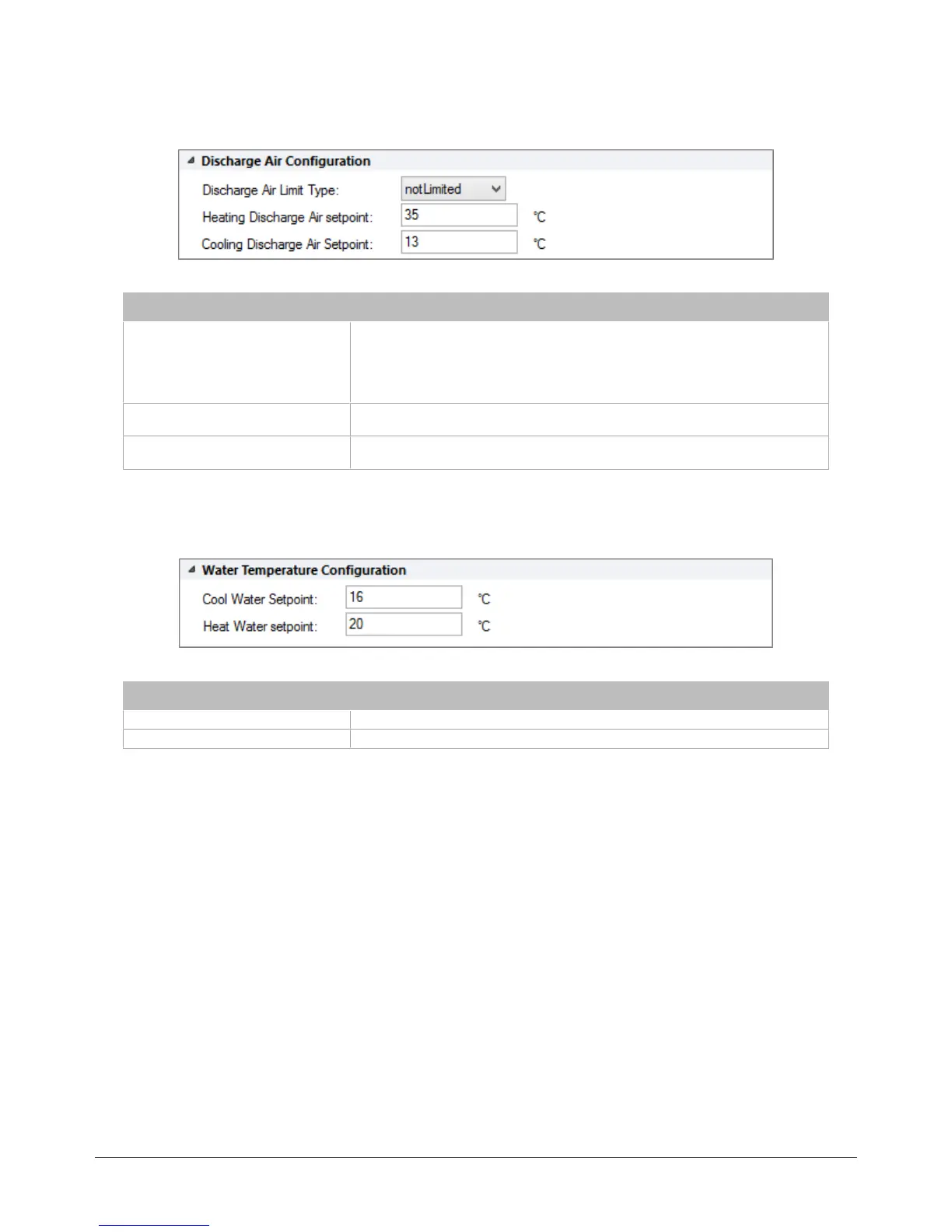

Figure41: Discharge Air Configuration subsection
Parameter Description
Discharge Air Limit Type
notLimited –
No limits for discharge air temperature.
lowLimit –
Limit to cooling discharge air temperature.
highLimit –
Limit to heating discharge air temperature.
highLowLimit –
Limit to heating and cooling discharge air temperature.
Heating Discharge Air Setpoint
Enter the desired setpoint for heating discharge air. The duct heater is limited when
the discharge air temperature reaches this setpoint.
Cooling Discharge Air Setpoint
Enter the desired setpoint for cooling discharge air. The duct cooling is limited when
the discharge air temperature reaches this setpoint.
Water Temperature Configuration
The Water Temperature Configuration subsection allows the user to adjust heating and cooling water
setpoints.
Figure42: Water Temperature Configuration subsection
Parameter Description
Cool Water Setpoint Enter the desired setpoint for cooling water.
Heat Water Setpoint Enter the desired setpoint for heating water.
