Distech Controls ECL-PTU Series User Manual

80 ECL-PTU-207 Preloaded Applications
Setting up Outputs
Output Configuration

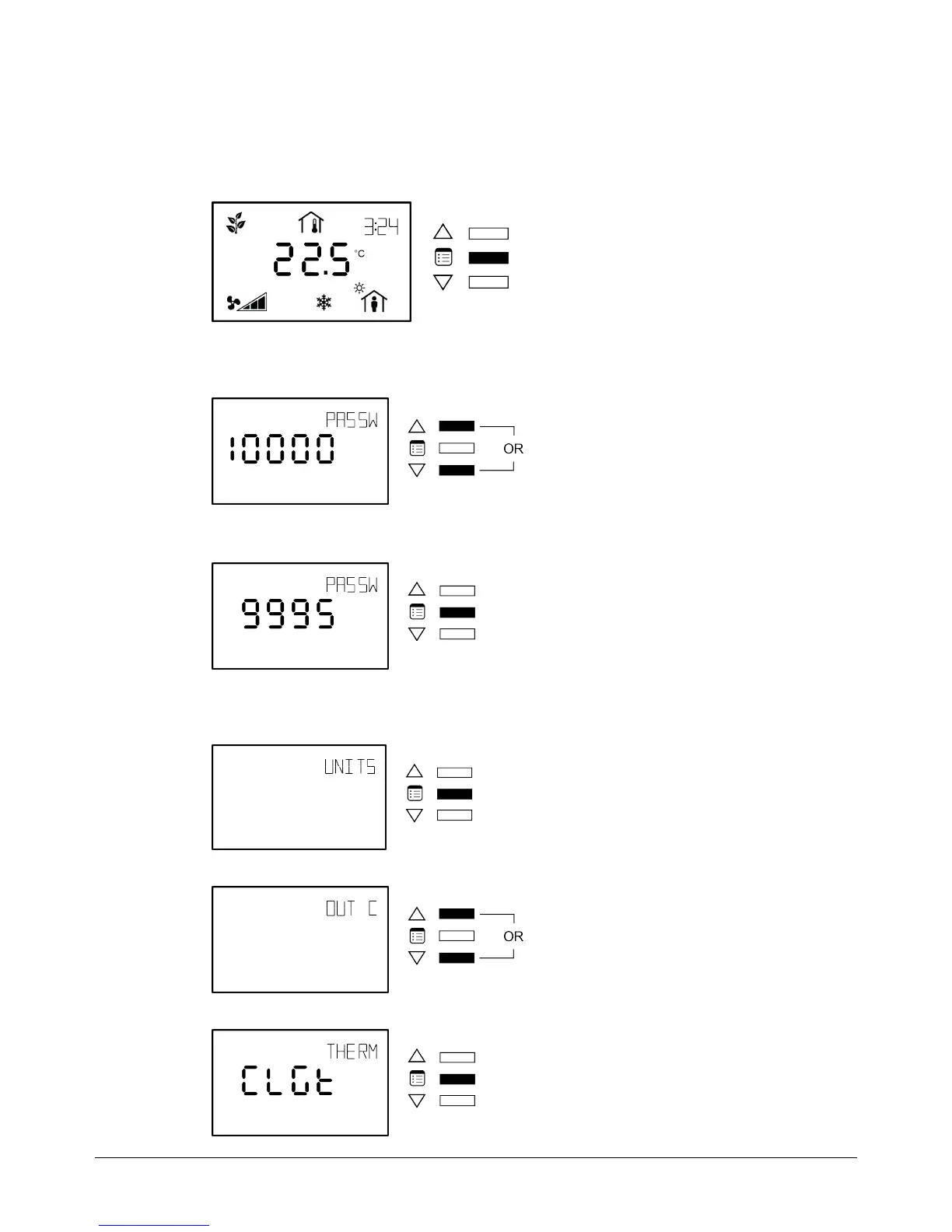

To enter the advanced menus:
1. Hold the Menu button for five seconds:
5 sec
The password field appears.
2. Use the arrow keys to increase or decrease the displayed number until it matches the configured
password.
Screen timeout: 15 s
By default, the password is 9995.
3. Press the Menu button to submit the password.
Screen timeout: 15 s
Upon submitting the correct password, the advanced menu is entered and the
Units
submenu is dis-
played.
4. Press the Menu button several times until OUT CFG appears on the display.
press several times
Screen timeout: 15 s
5. Press either of the arrow keys to enter the Outputs Configuration submenu.
Screen timeout: 30 s
6. Press the Menu button to navigate between the different submenus.
