79ECL-PTU-207 Preloaded Applications
Screen timeout: 30 s

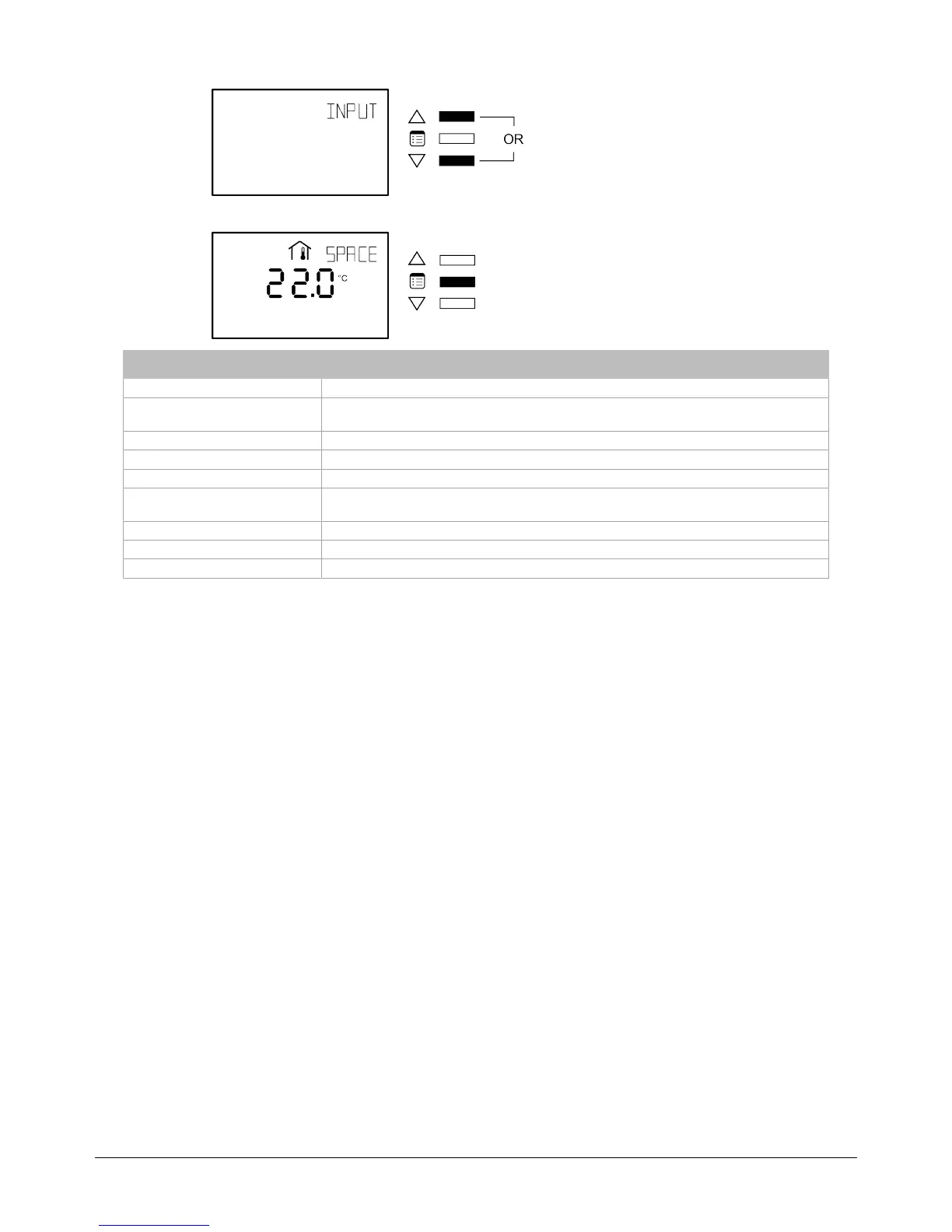

6. Press the Edit button to display successively the inputs values.
Screen timeout: 30 s
Code Description
UI1 Displays UI1 value (volts)
DISCH
Displays the actual discharge temperature value (-327°C if not configured or not
connected)
RETU Displays the actual return temperature value (-327°C if not configured or not connected)
WATE Displays actual water temperature value (-327°C if not configured or not connected)
SP OF Displays setpoint offset from UI2.
SPAC
Displays the actual space temperature value from SI3. (-327°C if not configured or not
connected)
DI4 Displays the actual state of DI4. (0 = Open, 1 = Close)
DI5 Displays the actual state of DI5. (0 = Open, 1 = Close)
DI6 Displays the actual state of DI6. (0 = Open, 1 = Close)
Table16: Displaying Input Values
