78 ECL-PTU-207 Preloaded Applications
Parameter Default Valid
Choices
Description
DI6
(EC5)
0 UNUSED DI5 is not used
X 1 AUX CONT NO Auxiliary contact is normally open
2 AUX CONT NC Auxiliary contact is normally closed
3 CHG OVER HEAT Changeover contact ( TRUE = Heat / FALSE = Cool)
4 CHG OVER COOL Changeover contact (TRUE = Cool / FALSE = Heat)
5 OCC SENSOR NO Occupancy sensor is normally open
6 OCC SENSOR NC Occupancy sensor is normally closed
Table15: Digital Input 6
Displaying Input Values

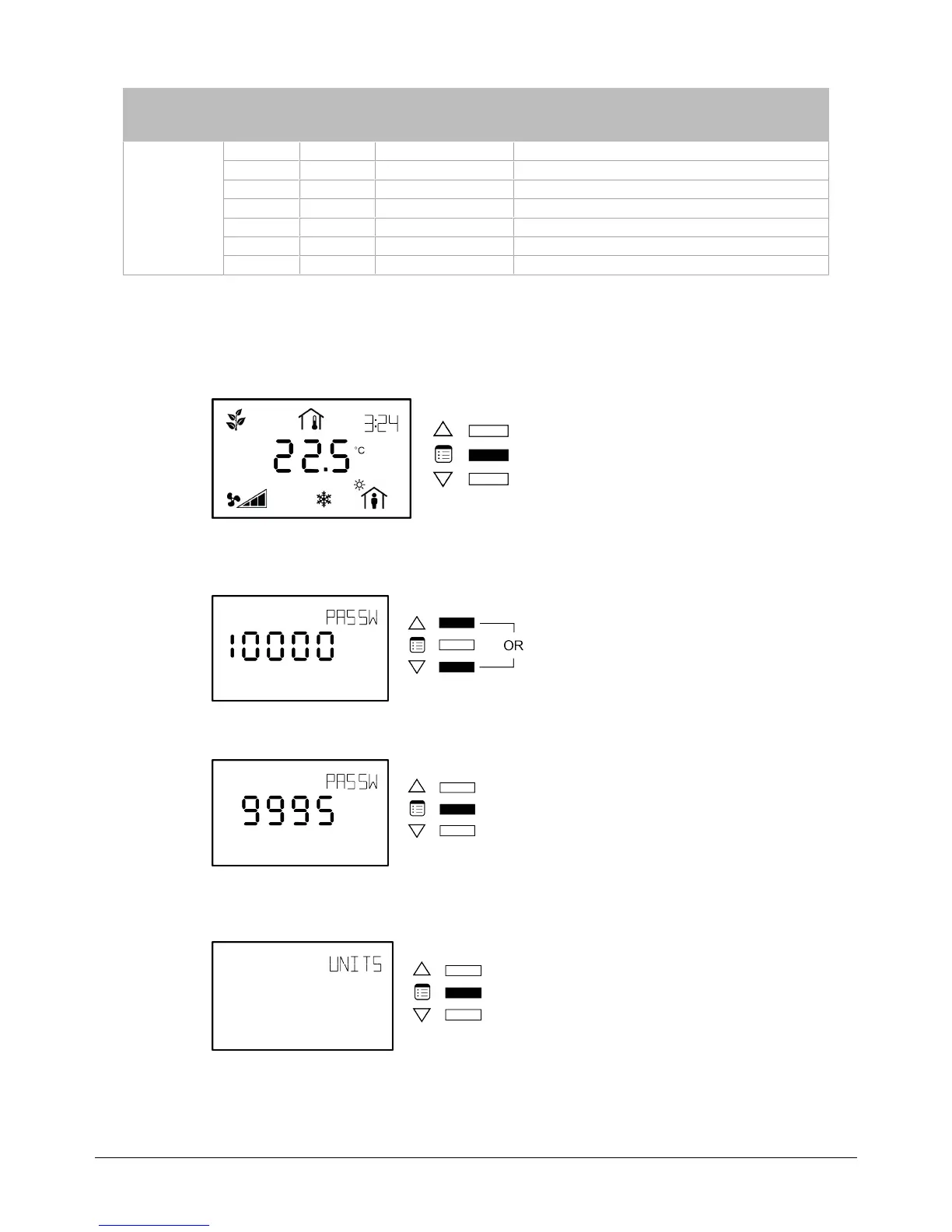

To enter the advanced menus:
1. Hold the Menu button for five seconds:
5 sec
The password field appears.
2. Use the arrow keys to increase or decrease the displayed number until it matches the configured
password.
Screen timeout: 15 s
By default, the password is 9995.
3. Press the Menu button to submit the password.
Screen timeout: 15 s
Upon submitting the correct password, the advanced menu is entered and the
Units
submenu is dis-
played.
4. Press the Menu button several times until INPUTS appears on the display.
press several times
Screen timeout: 15 s
5. Press either of the arrow keys to enter the Inputs Display submenu.
Allure EC-Smart-Vue Screen-by-Screen Guide
