68 ECL-PTU-207 Preloaded Applications
Damper Configuration
The configuration assistant contains several configuration parameters that control the damper’s be-
havior. For example, the damper type, position, and CO
2
setpoint can be set.

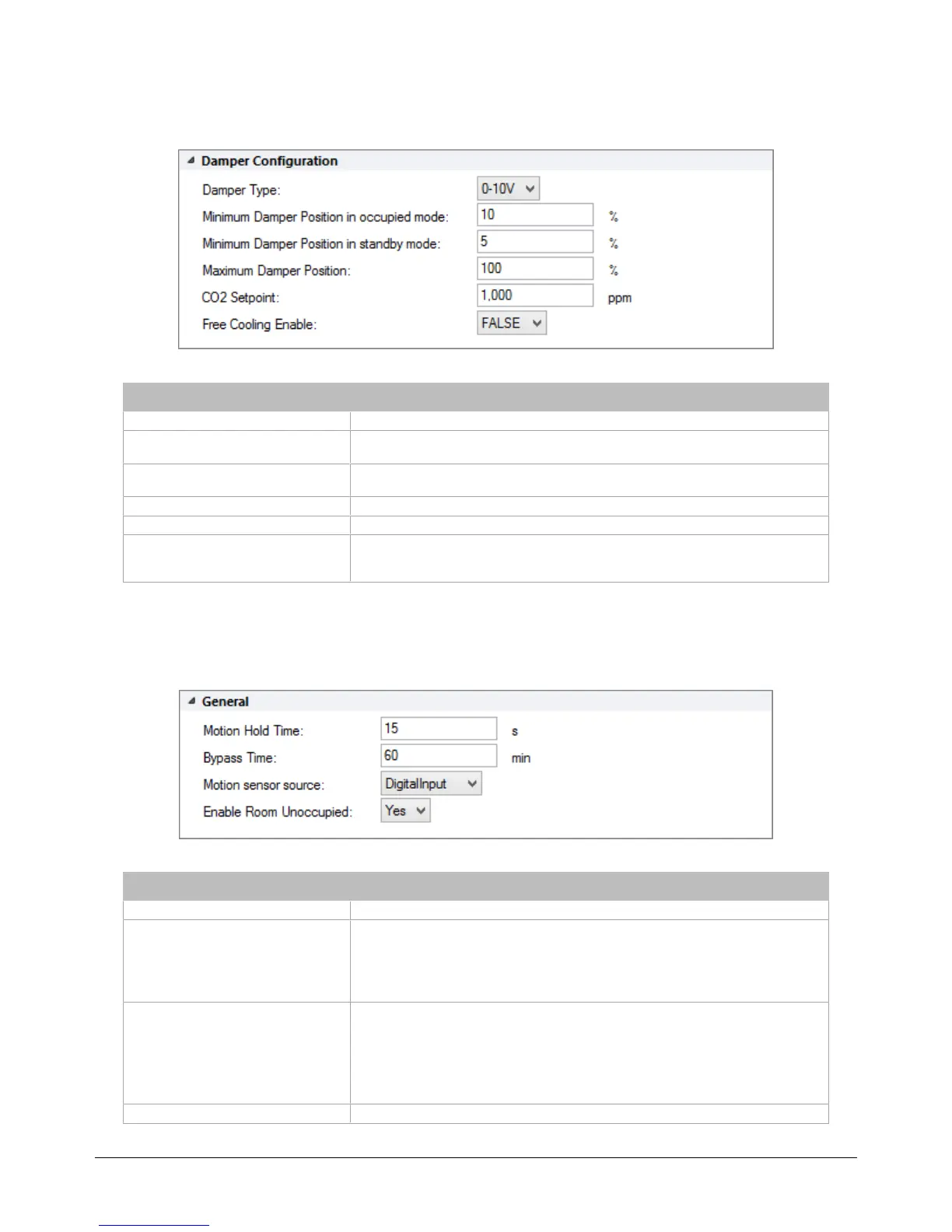

Figure43: Damper Configuration subsection
Parameter Description
Damper Type Set the desired damper signal type. Choose from
None
,
0-10V, 2-10V.
Minimum Damper Position in occupied
mode
Enter the maximum damper position while in occupied mode.
Minimum Damper Position in standby
mode
Enter the minimum damper position while in standby mode.
Maximum Damper Position Enter the overall maximum damper position..
CO
2
Setpoint Enter the CO
2
setpoint.
Free Cooling Enable
Free cooling is when the damper opening is calculated according to maximum
between CO
2
load and cooling load. Choose to enable (TRUE) or disable (FALSE)
this feature.
Occupancy Configuration
The
Occupancy Configuration
tab allows the user to configure general occupancy settings. The table
below provides a brief explanation of the available settings.
Figure44: General Occupancy Configuration subsection
Parameter Description
Motion Hold Time Enter the amount of time the motion sensor is on hold after first being initiated.
Bypass Time
The duration of time the controller remains in bypass mode when changed from
standby or unoccupied modes.
In addition, if a motion sensor is present, the bypass mode override time represents
how long the controller remains in occupied mode (no room occupancy is detected)
before returning the controller to standby mode.
Motion sensor source
Unused –
No motion sensor is used.
Multi-Sensor –
EC-Multi-Sensor is used.
ComSensor –
Communicating sensor (EC-Smart-Vue) is used.
DigitalInput –
A digital input is used:
Auto/All –
Auto or all types are being used.
Enable Room Unoccupied Select whether a room can be unoccupied.
Configuring the Preloaded Applications
