24 ECLYPSE Connected Thermostat (ECY-STAT)
Typical application examples are shown below.
Wi-Fi Client Connection Mode
Cut installation costs by leveraging existing wireless infrastructure and by eliminating the need for Eth-
ernet cables. This architecture is characterized by the point-to-point connection between an access
point and a client-controller.
Wireless Router
Interconnection Through Wi
-
Fi
Router
Internet
Leverage Existing Wireless Infrastructure
:
Use Wi
-
Fi to Eliminate Ethernet Cables
Eliminate Ethernet Cables

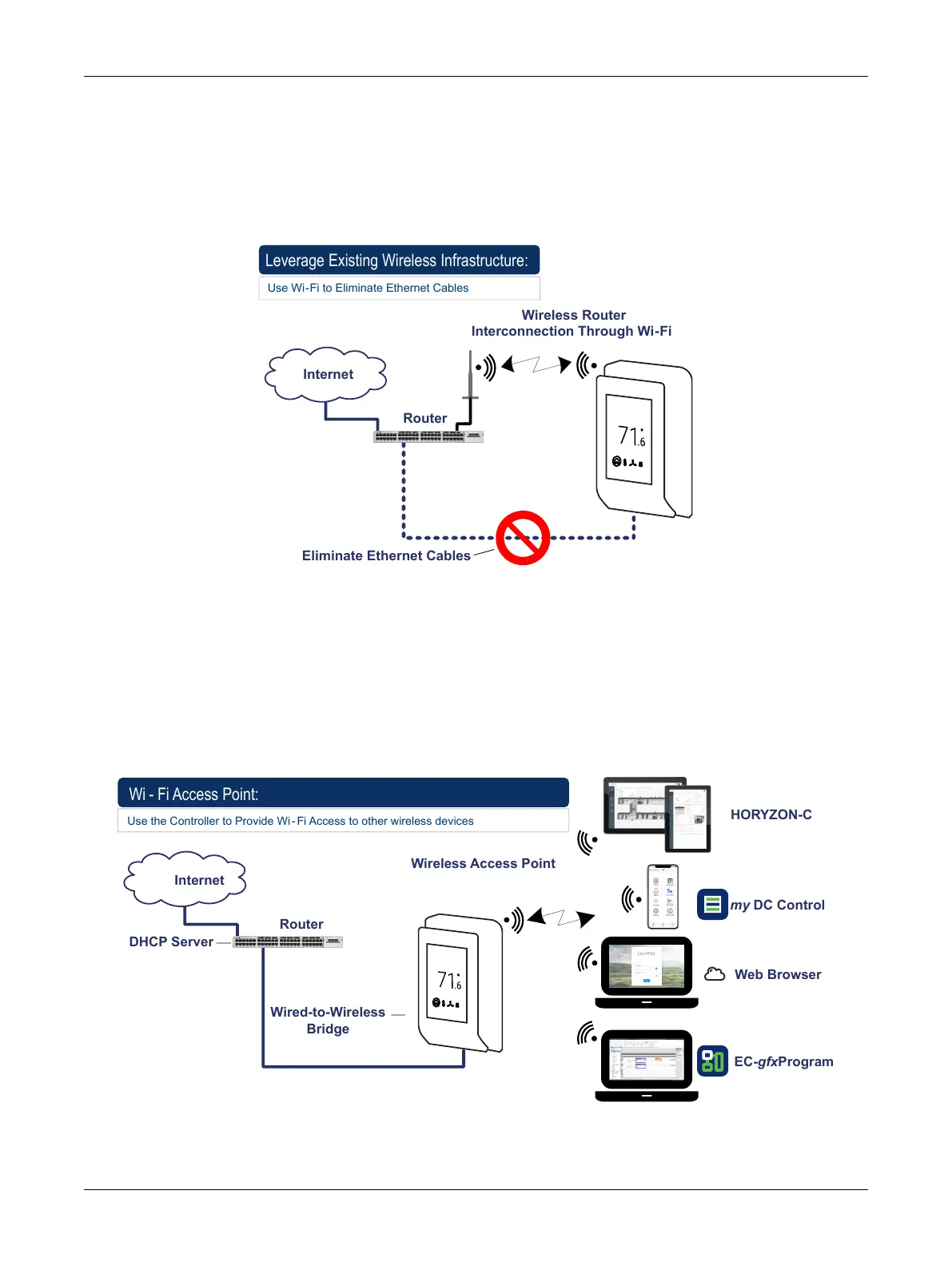

Figure12: Leveraging Existing Wireless Infrastructure by Eliminating Ethernet Cables
Wi-Fi Access Point
Should there be no available access point; an ECY-STAT controller can be configured as a wired-to-
wireless bridge to create an access point which can provide Wi-Fi access to other Wi-Fi enabled
clients. This access point operates off of the same subnetwork and has the same IP connectivity that
the controller has with its wired network connection. A variety of software applications are available for
system monitoring and override, commissioning, configuration and programming. To configure the Wi-
Fi access point connection mode, see Setting up a Wi-Fi Access Point Wireless Network.
Router
Internet
Wi
-
Use the Controller to Provide Wi
-
Fi Access to other wireless devices
Web Browser
EC-gfxProgram
my DC Control
Wireless Access Point
HORYZON-C
Fi Access Point:
DHCP Server
Wired-to-Wireless
Bridge
Figure13: Using an ECY-STAT Controller to Create an Access Point
