A second ECY-STAT controller can be configured as a wireless client. This can be used as a solution
to ‘jump’ architectural features that are not compatible with wires such as glass atriums. To configure
the Wi-Fi client connection mode, see Setting up a Wi-Fi Access Point Wireless Network.
An access point can provide Wi-Fi access to other Wi-Fi enabled clients and controllers.
Router
Controller
-
to
-
Controller Interconnection
:
Use Wi
-
Fi to Wirelessly Connect other Controllers
Controller Interconnection
Through Wi
-
Fi
Eliminate Ethernet Cables
Internet
Wireless Access Point
Wired - to-
Wireless Bridge

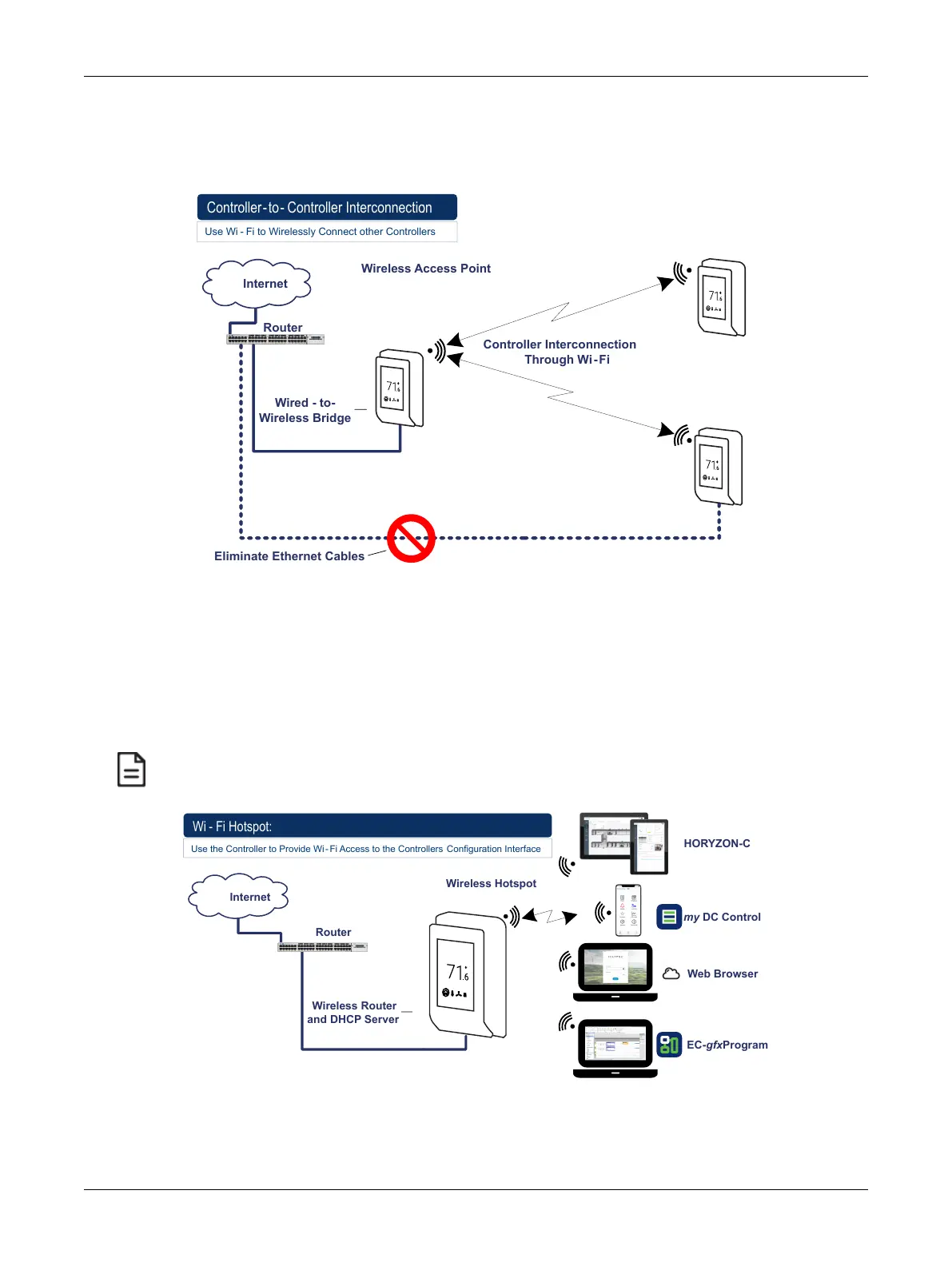

Figure14: Using an ECY-STAT Controller as a Wireless Bridge
Wi-Fi Hotspot
Should the wired network not use a DHCP server (uses fixed IP addresses); an ECY-STAT can be
configured to create a hotspot with a router that creates its own subnet and DHCP server which can
provide Wi-Fi access to other Wi-Fi enabled clients. This is the default connection method to the ECY-
STAT. A variety of software applications are available for system monitoring and override, commis-
sioning, configuration and programming.
A hotspot creates a subnetwork. As a result, any connected BACnet device will not be able to discover BACnet
devices on any other LAN subnetwork.
Router
Internet
Wi
-
Use the Controller to Provide Wi
-
Fi Access to the Controllers
Configuration Interface
Web Browser
EC-gfxProgram
my DC Control
Wireless Hotspot
Wireless Router
and DHCP Server
HORYZON-C
Fi Hotspot:
Figure15: Using an ECY-STAT Controller to Create a Hotspot
