XF6 Series Installation and Programming Guide Digital Monitoring Products
5
FIRE COMMAND LCD KEYPAD
A 7830F Fire Command Keypad is factory installed on the panel enclosure door. The display and keyboard are factory
pre-wired to the PROG header. For standby battery calculations, the LCD display draws 140 mA of current in normal or
standby conditions, and 180 mA in the alarm condition. For more information, refer to "Power Requirements".
Additional 7830F keypads can be added as needed.
MOUNTING ADDITIONAL KEYPADS, ZONE EXPANDERS, AND MODULES
All DMP keypad housings are designed to install on any 4” square box, 3-gang switch box, compatible backboxes, or
directly on a flat surface.
The DMP711, 714, 715, and 716 modules are each contained in molded plastic housings with removable covers. The base
provides you with mounting holes for installing the unit to a wall, switch plate, or other surface.
Mount any additional modules in the panel enclosure using the standard 3-hole mounting pattern. Refer to the
appropriate product guides for installation instructions.

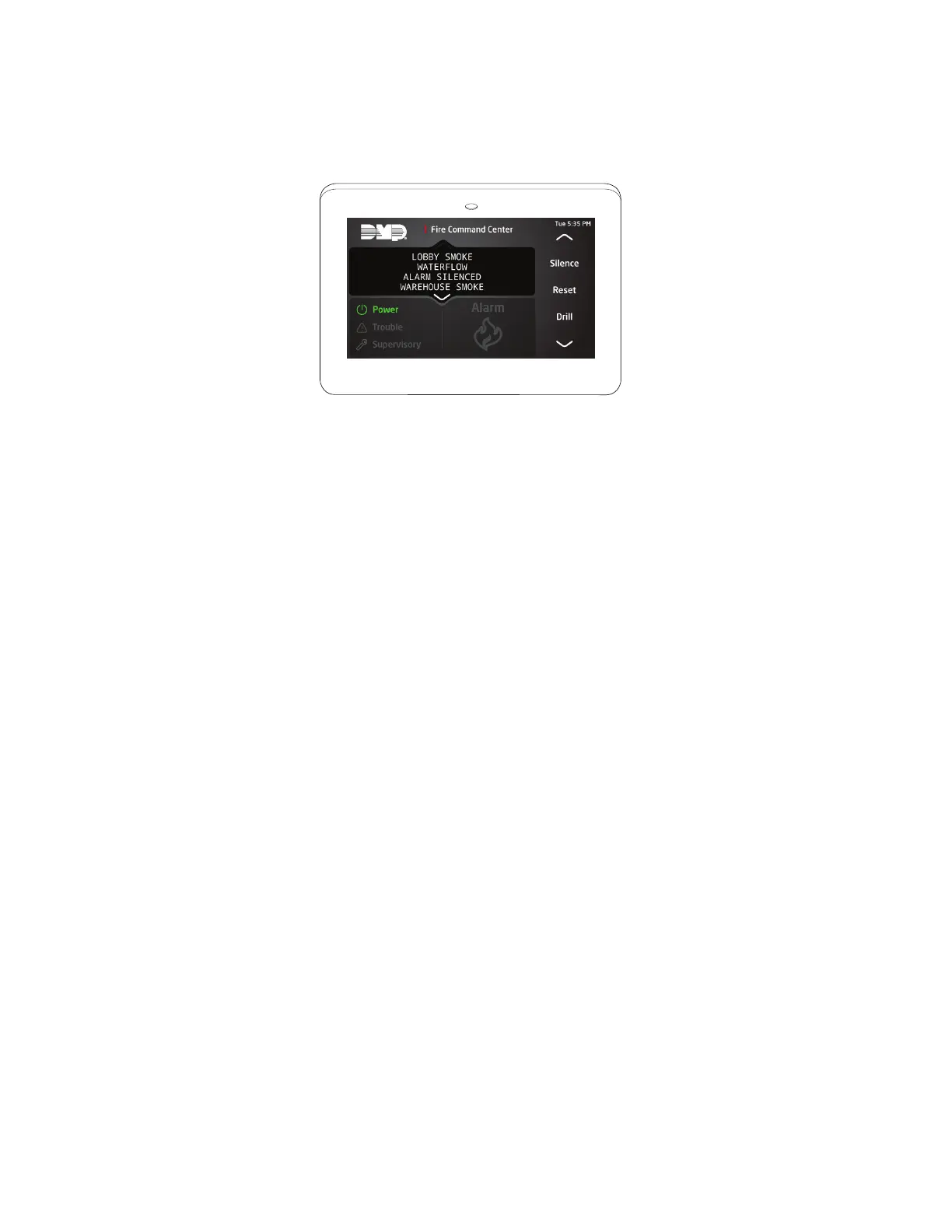

7830F Fire Command Keypad
