Dormakaba ED100LE - Page 30

30
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 10
 Pull arm installation

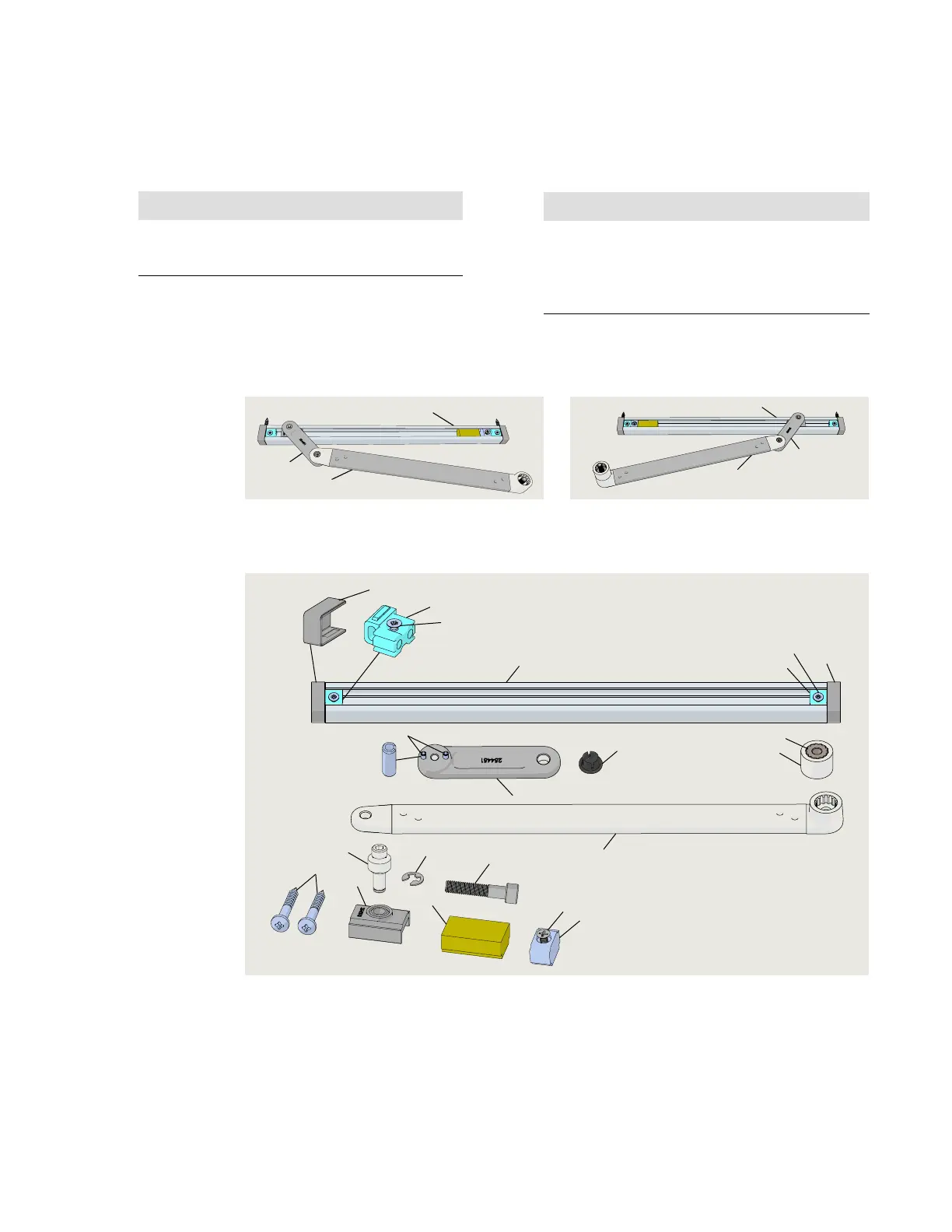

. Pull arm installation
. Pull arm assemblies
. Pull arm hardware
1 Track
2 End cap
3 Fixing piece
3.1 M5 x 15 Phillips
FHS
4 Pull arm
5 20 mm axle
extension
5.1 Splined
6 CPD lever
6.1 M6 x 10 SHCS
7 Slotted spring pin
8 Arm cap
9 Slide shoe
10 Pivot pin
11 Retaining ring
12 Bumper
13 M8 x 1.25 x 40
SHCS
14 Wood screws
15 Machine screws
16 Bumper stop
17 M5 x 13 FHMS
cross recessed
Fig. 10.3.1 Pull arm assembly HK4709-12X
Fig. 10.2.1 Arm with CPD lever and track
assembly, LH
1 Drive arm
2 CPD
3 Track
Fig. 10.2.2 Arm with CPD lever and track
assembly, RH
1
2
3
3.1
4
2
3
3.1
5
5.1
6
7
8
9
10
11
12
13
14
16
17
NOTICE
Reference Chapter 7 – EDLE installation
templates.
1
2
3
1
2
3
NOTICE
Double door pull arm installation.
Double door pull as a push installation.
Repeat steps in Chapter 10 for each pull arm
installation.
