17
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions

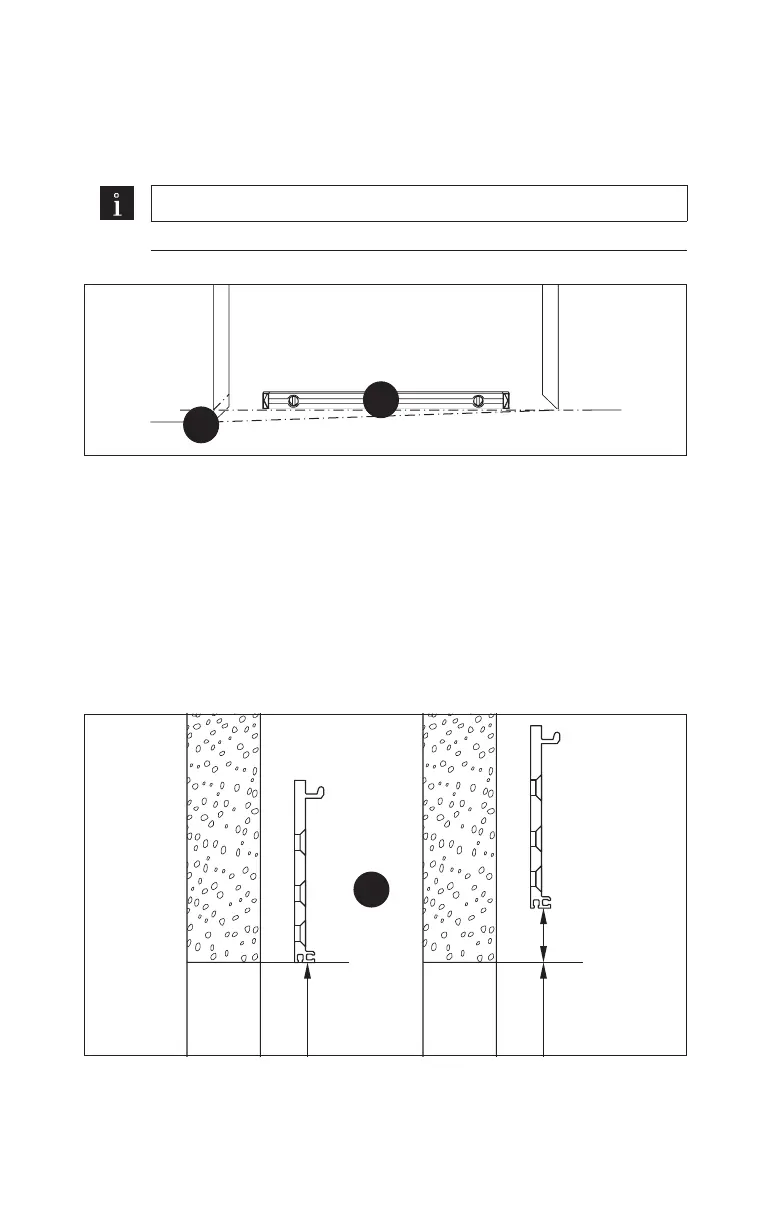

4.3.3 Mount the operator profile on the wall
1. Determine the highest point of the floor in the leaves’ area of travel.
Note
Use a leveling device.
Fig.13
2.
1.
2. Transfer the highest point of the floor to the wall.
3. The clear height (CH) can be found in the planning documents.
4. Mark the distance from the floor to the lower edge of the mounting plate.
If the internal cover with a height of 100mm is being used, the distanceX
from the floor to the lower edge of the mounting plate =CH.
If the internal cover with a height of 150mm is being used, the distanceX
from the floor to the lower edge of the mounting plate =CH+50mm.
The clear height must be adhered to.
Fig.14
4.
CH
CH 50
