ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions
5. Position the mounting plate centrally above the passage and mark the drill
holes.

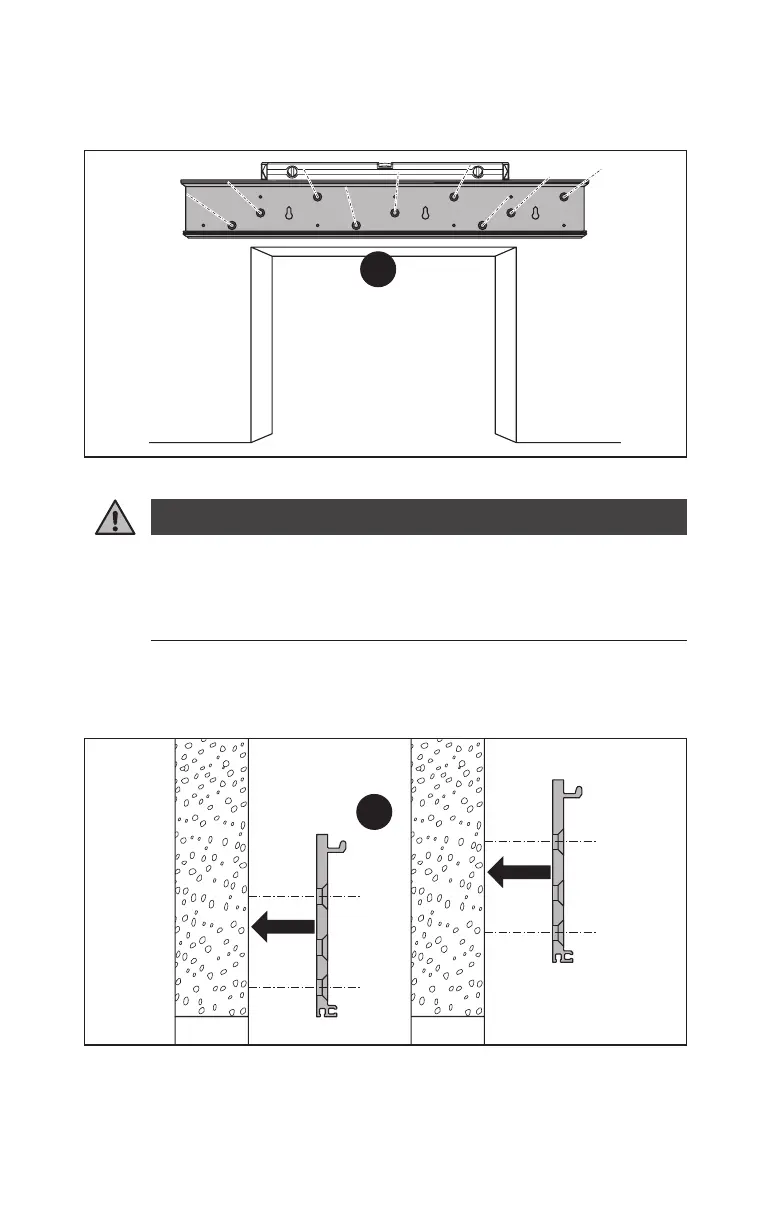

Fig.15
5.
WARNING
Risk of injury due to incorrect fixing materials!
If unsuitable fixing materials are used, there is a risk that parts may tear
out.
• Use dowels and screws that are suitable for the existing structure and
the weight of the door unit.
6. Drill the holes.
7. Screw the mounting plate to the wall.
Fig.16
7.
