Mounting instructions

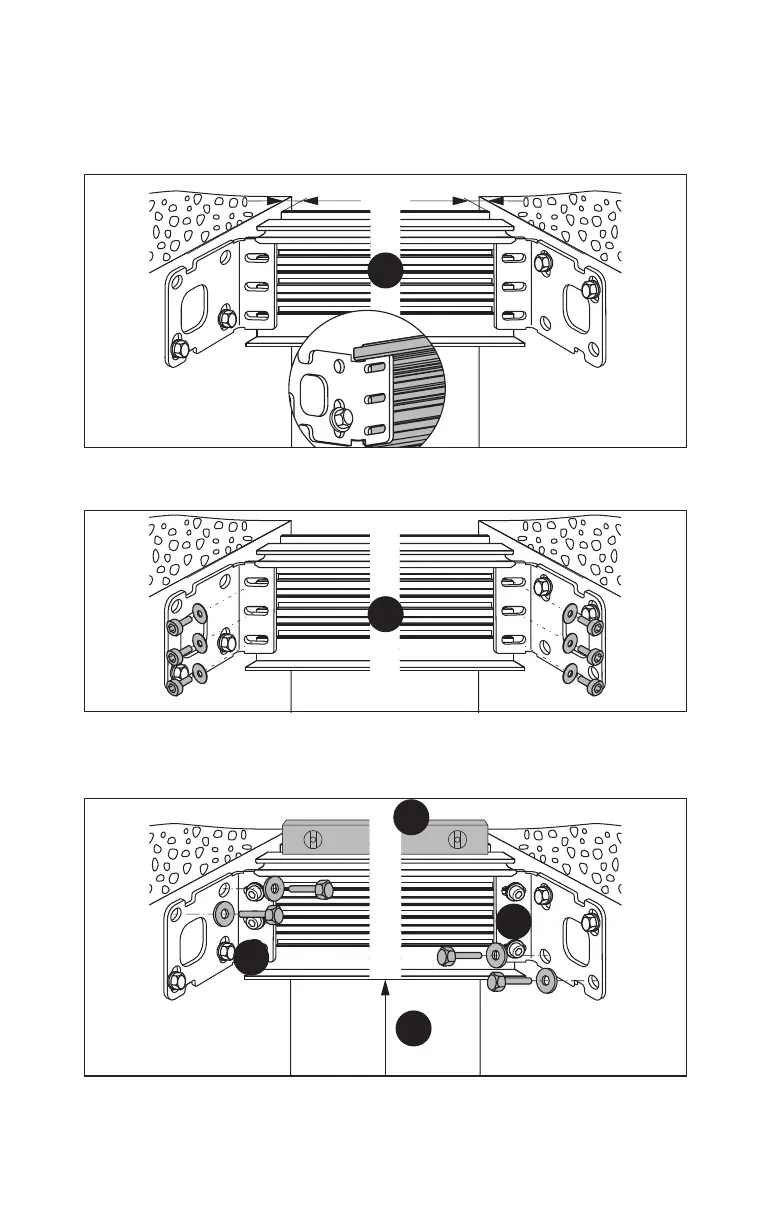

7. Hook the LM girder into the wall brackets. The required distance of the LM
girder from the wall can be found in the manual for the relevant profile
system.
Fig.23
7.
X X
8. Screw the LM girder onto the wall brackets.
Fig.24
8.
9. Align the LM girder horizontally and vertically. The clear height must be
adhered to.
Fig.25
9.
CH
9.
10.
10.
10. Drill through the remaining holes in the two wall brackets. Screw on the wall
brackets with 2 additional screws and washers each.
