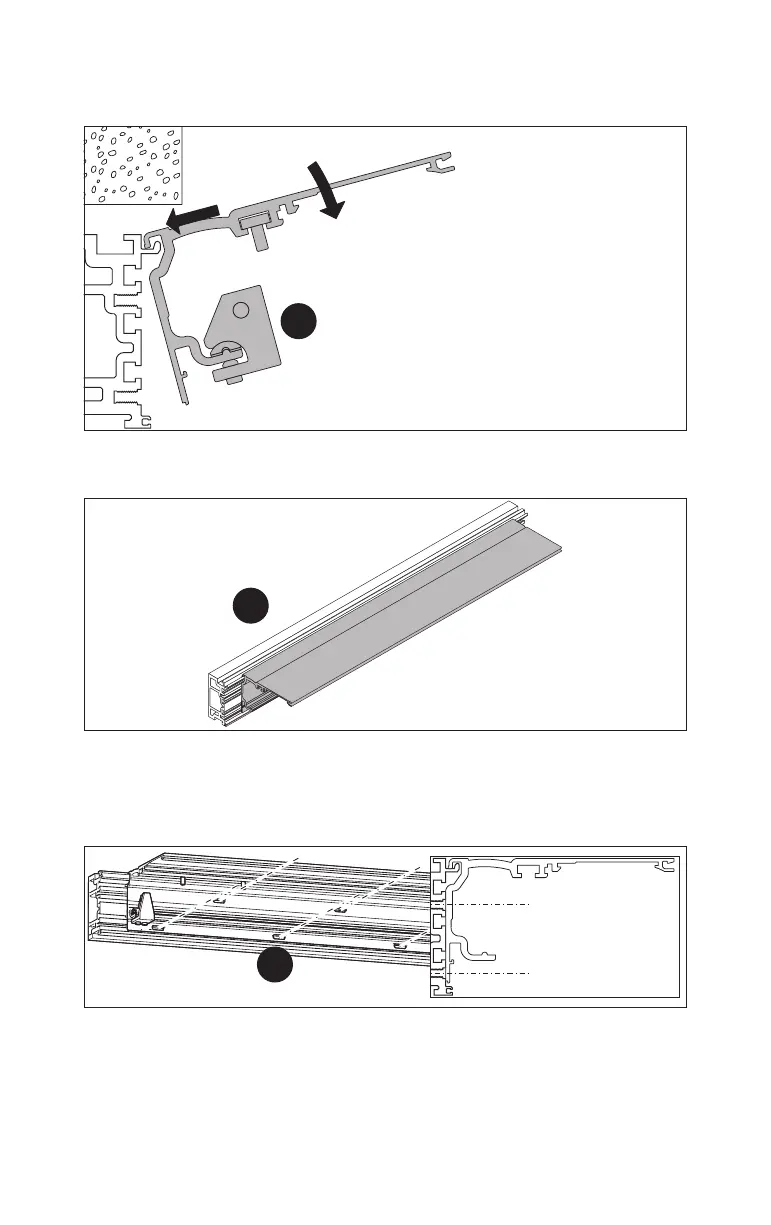

11. Hook in the drive profile.
Fig.26
11.
12. Align the operator profile centrally between the wall mountings.
Fig.27
12.
13. Use the cylinder head screws provided to screw the operator profile onto the
LM girder. To prevent noise during operation, screw the operator profile
through all slots.
Fig.28
13.
M6x20mm
M6x16mm
14. Clean the operator profile and running profile.
