Dräger D-Vapor

System overview
20
Instructions for use D-Vapor/D-Vapor 3000

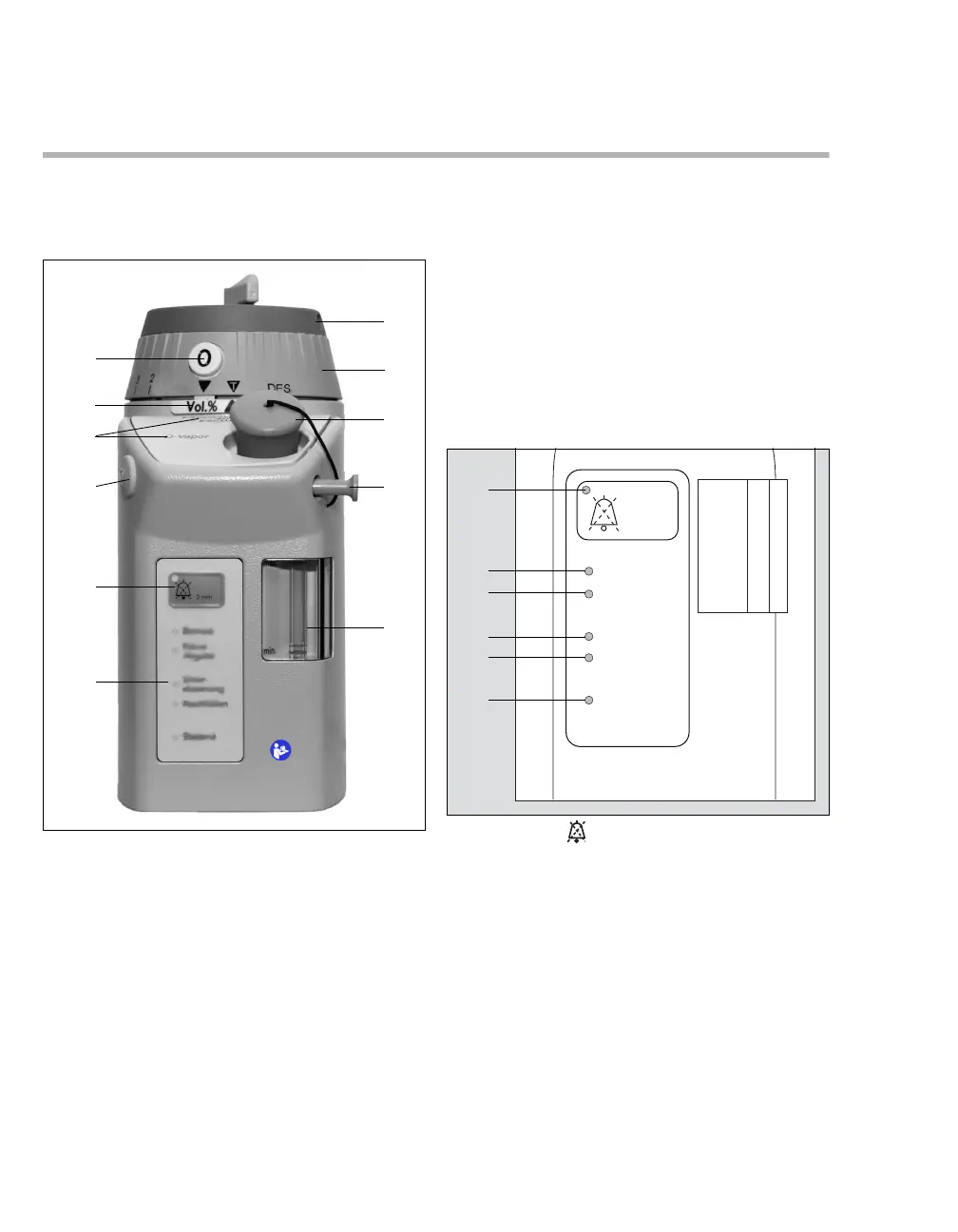

D-Vapor
Front
A Control dial cap with color coding of the
anesthetic agent and with Interlock coding
B Control dial with concentration markings
C Sealing plug
D Unlocking button for the sealing plug
E Sight glass for displaying the filling level
F Display panel
G Button for suppressing the acoustic alarm for
2 minutes
H Protective cap for equipotential equalization pin
I Indication of anesthetic agent and vaporizer
model
J Indication of concentration units
K 0 button for locking the control dial in the 0 or T
position
Display panel
A Yellow LED Audio paused 2 min
B Green LED Operational
C Red LED No Output
D Red LED Delivery Low
E Yellow LED Fill Up
F Yellow LED Battery
071
A
B
E
F
C
D
G
H
I
J
K
053
max.
min.
A
B
C
D
E
F
