Preparation
40
Instructions for use D-Vapor/D-Vapor 3000
For ISO conical adapters: the male cone of the
adapter is the vaporizer inlet; the female cone of
the adapter is the vaporizer outlet.

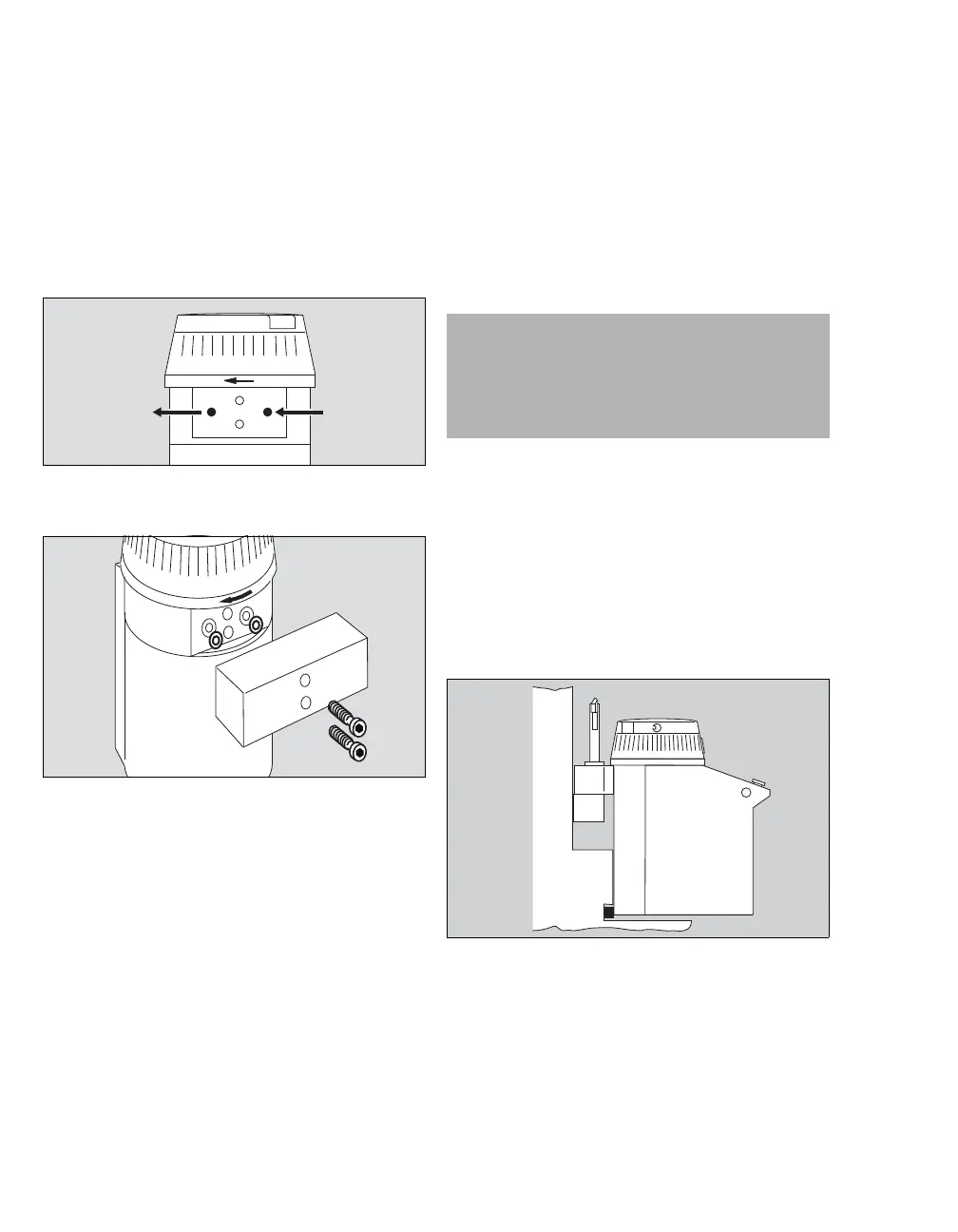

Fitting the plug-in adapter or the ISO
conical adapter (D-Vapor only)
1 Remove protecting cap on gas inlet/gas outlet
at the back, if fitted.
2 Use two new screws (A); do not re-use old
screws:
– Strength class 10.9, surface A2R
conforming to DIN ISO 4042, heat treated
– Dimensions DIN EN ISO 4762-M4 x length
depending on connector. Screws fitted
through the connector must be screwed into
place with a thread length of no less than
5 mm (0.2 in) and no more than 7 mm
(0.27 in). If screws less than 25 mm (1 in)
long are used, additional centering pins
must be fitted between the plug-in adapter
and the vaporizer.
– Do not use fan locking washers, plain
washers or similar.
3 Before fastening, check that the sealing
surfaces are clean and undamaged.
4 Place the sealing rings (B), part no. M 21929, on
the sealing areas around the gas passages.
5 Tighten screws to a torque of 270 to 300 Ncm
once; do not tighten any more.
6 Check that the connector is secure.
Connecting to a Titus anesthesia
workstation (D-Vapor only)
Before the connection is made, the workstation
must be converted for operation with the D-Vapor
(only by specialized service personnel).
D-Vapor 3000 is not suitable for use with Titus
anesthesia workstations.
Detail of conversion:
Rubber buffer (O
2 warning) fitted at the point where
vaporizer is suspended (A), fits flush with surface of
housing.
018019
WARNING
Risk of injury. Risk of incorrect output concen-
tration
If these requirements are not met, the vaporiz-
er might loosen and fall off.
021
