Description
110
Instructions for use D-Vapor/D-Vapor 3000
Influence of flow
Within the specified flow range, the concentration
delivered by the vaporizer is only slightly
dependent on the fresh-gas flow.
In the area of the solid lines (A), the vaporizer
meters with at least the required accuracy (see
"Technical Data", page 101).
In the area of the dashed lines (B), with a
simultaneously high flow rate and high
concentration, the vaporizer meters less than the
value set on the control dial. See "Technical Data",
page 101.

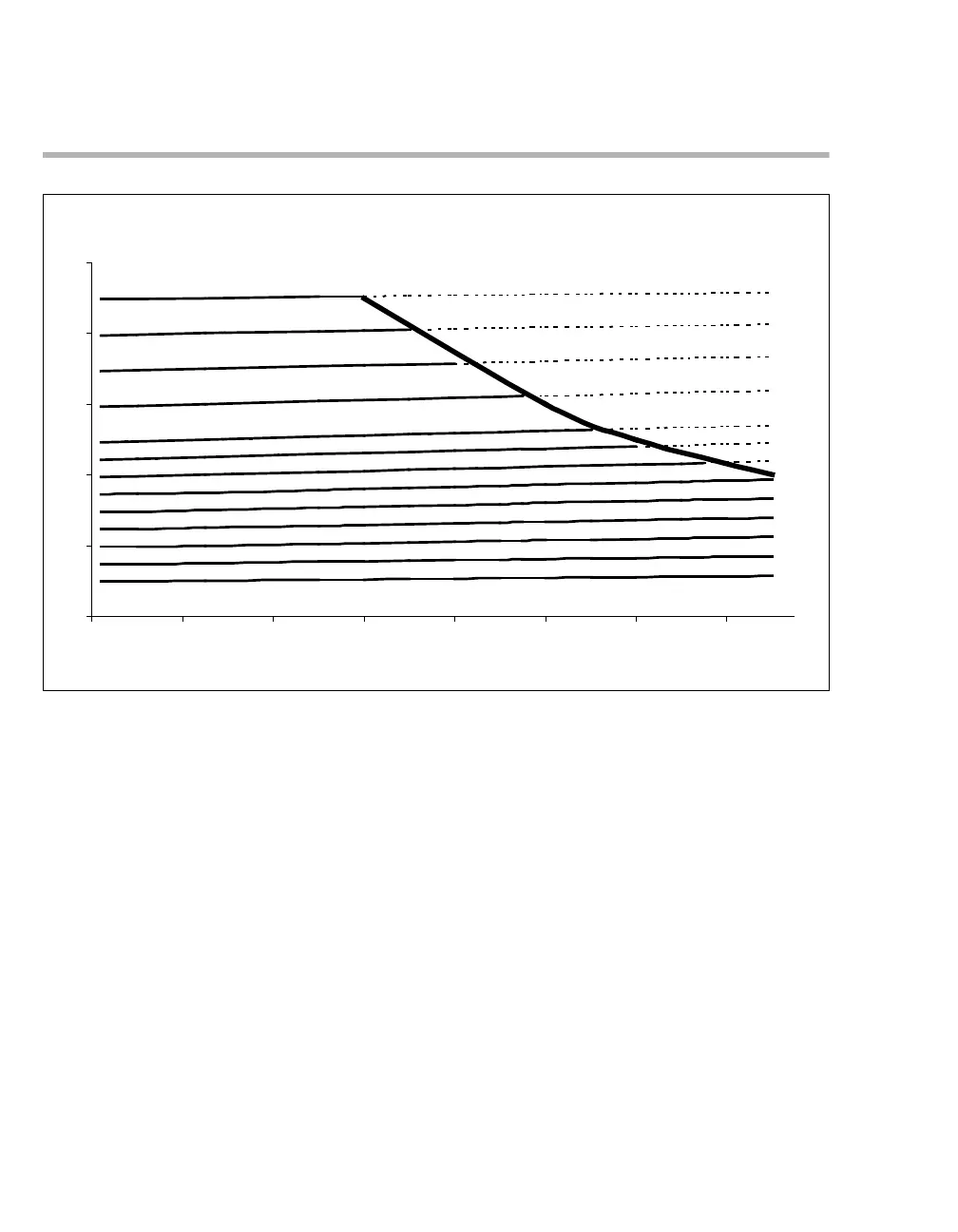

The diagram shows the typical influence of flow on
the concentration delivered at 22 °C (71.6 °F),
1013 hPa (14.69 psi) when operating with Air.
045
0
4
8
12
16
20
02468101214
18
16
14
12
10
9
8
7
6
5
4
3
2
A
B
Output concentration (Vol%) Set concentration (Vol%)
Fresh-gas flow (L/min)
