System overview

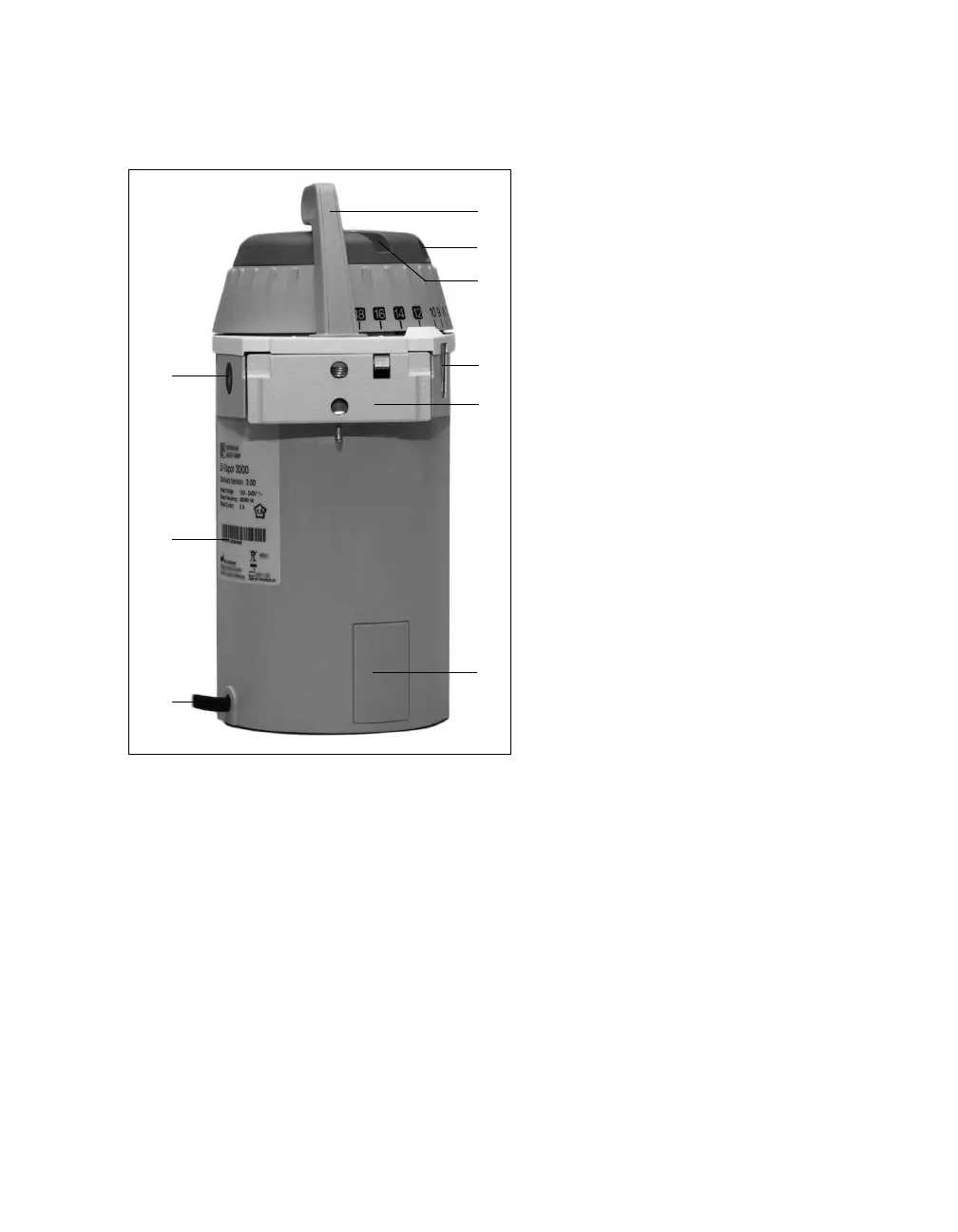

Rear
A Locking lever of plug-in adapter
B Opening for Interlock locking device (illustration
showing: Interlock 2)
C Slot for locking lever, so that the vaporizer can
only be removed from the anesthesia
workstation when the control dial is in the
T position
D Window for reading Vapor View data
E Connection system
for the Auto Exclusion plug-in adapter
D-Vapor 3000
is only available with this plug-in adapter
F Cover for RS232 interface
G Power cable
H Rating plate indicating manufacturer, model,
and serial number
I Window to allow light to enter in order to
illuminate the control dial and the sight glass
