Instructions for use D-Vapor/D-Vapor 3000 55
Operation
DW-2000, Dräger Auto Exclusion and
S-2000 plug-in adapters
Vaporizer not connected to the plug-in
connector
 Turn locking lever to locking position – it must
turn back automatically.
Re-engage locking lever in the control dial.
Newer versions of the DW-2000 plug-in adapter,
Auto Exclusion plug-in adapters, and S-2000 plug-
in adapters do not have any anesthetic agent code.

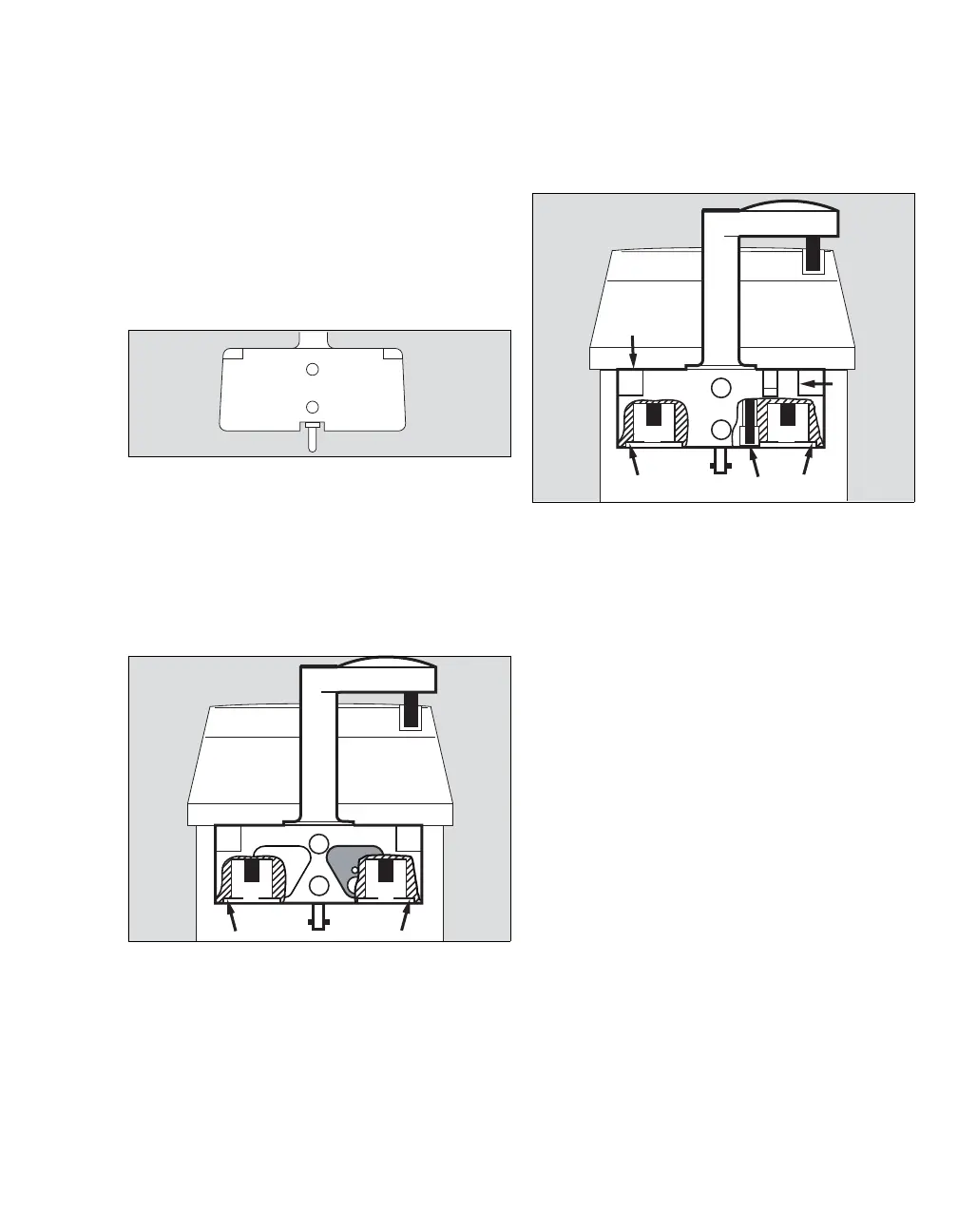

Plug-in adapter DW-2000 (D-Vapor only)
Only use white plug-in adapters for the D-Vapor.
1 Drop-in pin (A) on locking lever secure and
straight.
2 Both valve control pins (B) present.
3 Transverse pin (C) at the bottom of the locking
lever is tight, in the center and not bent.
4 Sealing surfaces (D) undamaged.
DrägerAuto Exclusion plug-in adapter
(D-Vapor/D-Vapor 3000)
1 Drop-in pin (A) on locking lever secure and
straight.
2 Both valve control pins (B) present.
3 Transverse pin (C) at the bottom of the locking
lever is tight, in the center and not bent.
4 Sealing surfaces (D) undamaged.
5 Cover plate (E) present and undamaged.
6 Auto Exclusion transmission pin (F) present,
movable, and cannot be removed.
7 Bearing pin (G) present, tight and flush with
housing.
