Instructions for use D-Vapor/D-Vapor 3000 29
Operating concept

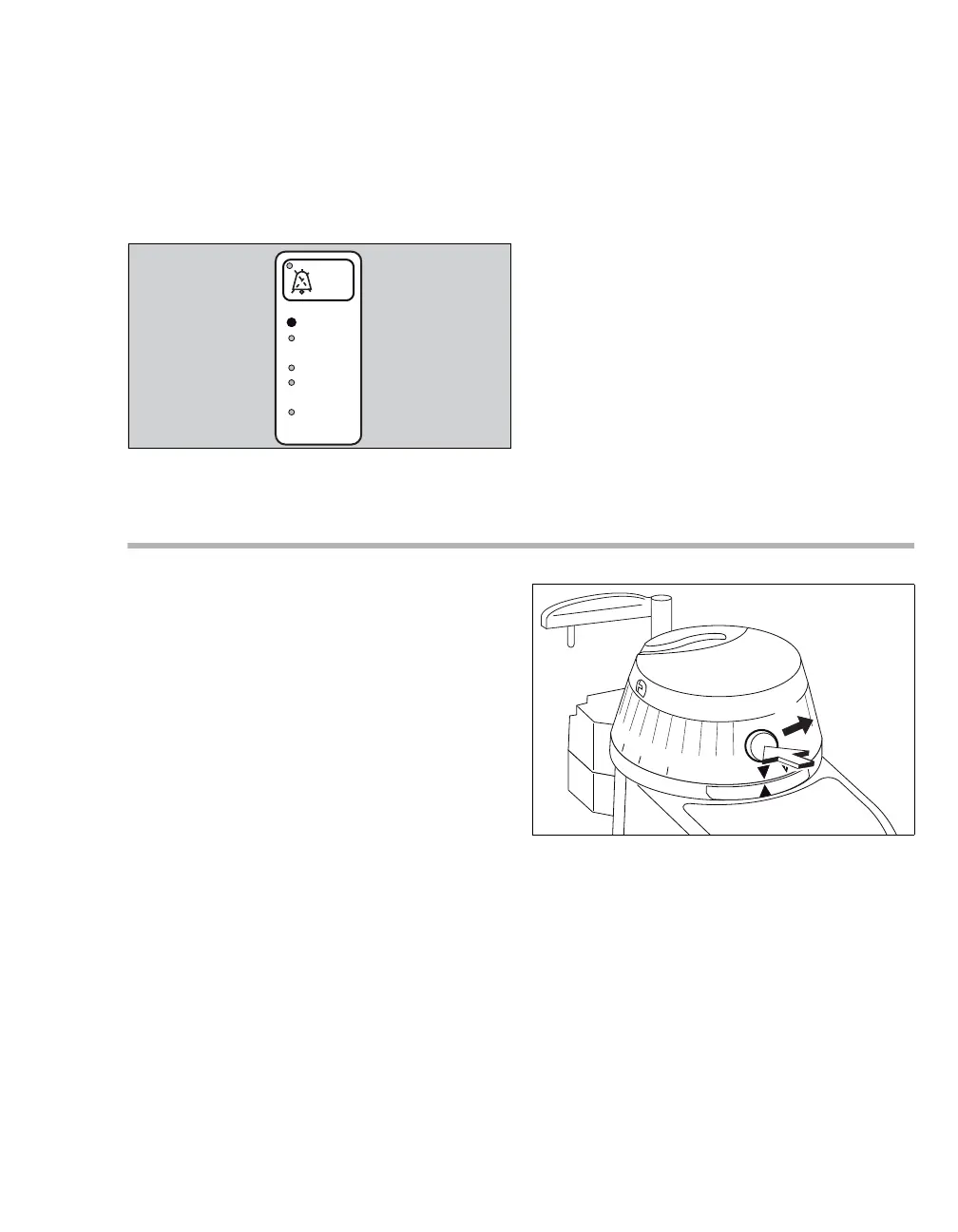

Vaporizer ready for operation
The Vaporizer is at the operating temperature. The
control dial is at the 0 or the T position. The
Operational LED (A) is lit.
Vaporizer dosing
The vaporizer is ready for use. The control dial is at
a position ≥2 Vol%. The Operational LED is lit.
Control dial
The operation of the control dial is identical for
D-Vapor and D-Vapor 3000.
The concentration of the anesthetic agent is set
with the control dial. In the 0 position (zero setting)
and the T position (transport setting), the control
dial is locked and can only be adjusted by keeping
the 0 button pressed.
All illustrations of a vaporizer on an anesthesia
workstation show a stylized anesthesia workstation
in the background.
All illustrations of the T position (transport setting)
only show the disconnected vaporizer itself.
Control dial position ON – switching on
and adjusting the concentration
Only adjust the concentration when the vaporizer is
connected to an anesthesia workstation.
1 Press the 0 button (A).
2 Turn the control dial (B) counterclockwise to the
required concentration of anesthetic agent.
If the vaporizer is not ready for use, an audible
alarm will sound, see chapter "Alarm cases"
on page 78.
