Dräger D-Vapor

Operating concept
32
Instructions for use D-Vapor/D-Vapor 3000
Plug-in adapter DW-2000 with Interlock 2
The DW-2000 plug-in adapter is connected to
Dräger plug-in connectors.
For anesthesia workstations with two plug-in
connectors combined with Interlock 2
The locking bar, which can only be engaged in the
control dial when in 0 position, only allows one
vaporizer to be used at any one time.

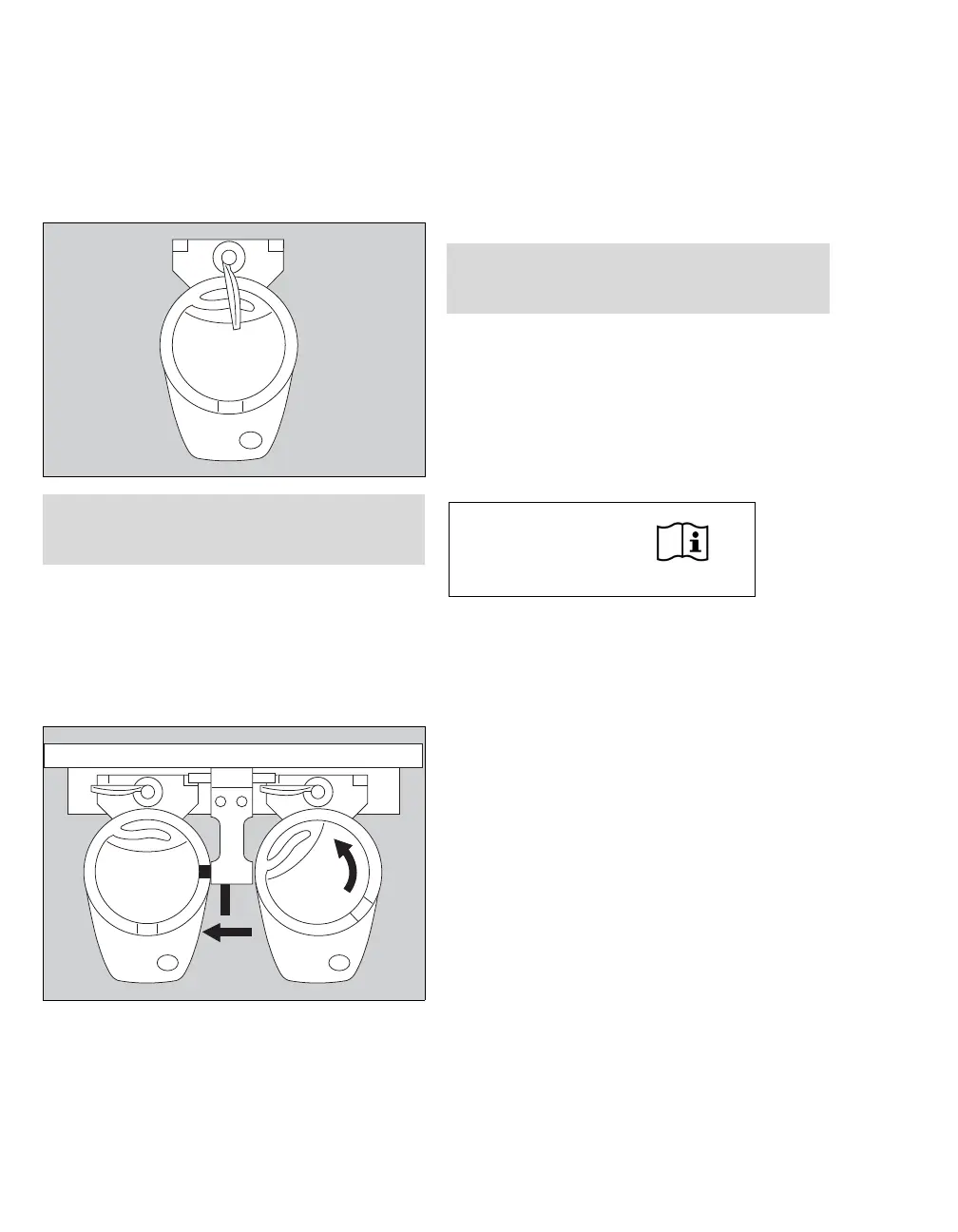

Illustration: left vaporizer blocked, right vaporizer
operational.
Dräger Auto Exclusion plug-in adapter
The Dräger Auto Exclusion plug-in adapter is
connected to Dräger Auto Exclusion plug-in
connectors or to Dräger plug-in connectors.
Anesthesia workstations with Auto Exclusion
plug-in connectors
Auto Exclusion plug-in connectors are designed
only for vaporizers with Auto Exclusion plug-in
adapters and are marked with the following symbol
on the anesthesia workstation.
005
NOTE
The DW-2000 plug-in adapter is not compatible
with the Dräger Auto Exclusion plug-in connector.
006
NOTE
The Dräger Auto Exclusion plug-in adapter is com-
patible with the DW-2000 plug-in connector.
Dräger-Vapor ®
Auto Exclusion
Operating Instructions
