Operating concept
30
Instructions for use D-Vapor/D-Vapor 3000

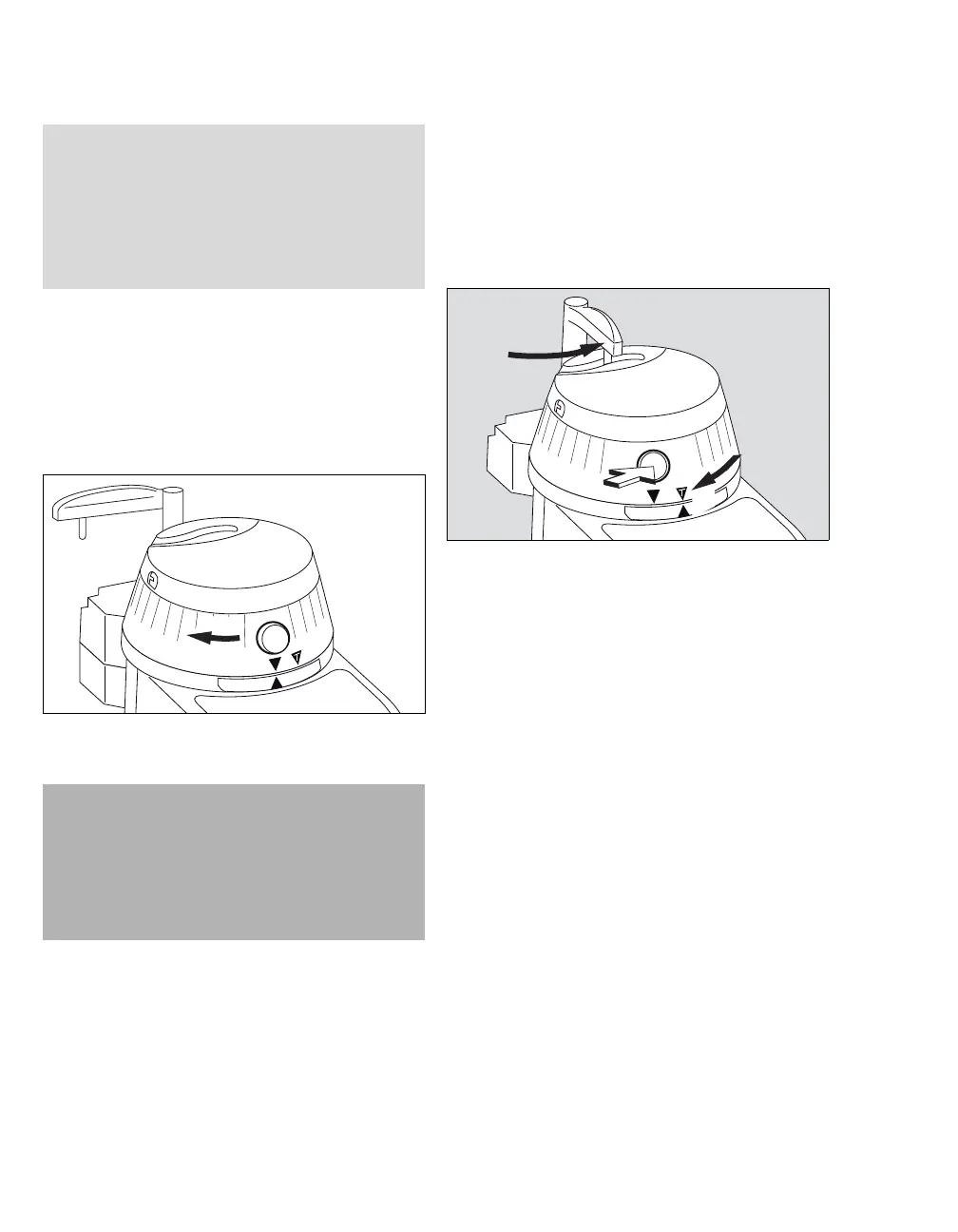

Control dial position 0 – switching off
Always set the control dial to the 0 position when
the vaporizer is connected to an anesthesia
workstation but no anesthetic agent is to be
administered.
1 Turn the control dial (A) clockwise to the
0 position – the 0 button engages.
Control dial position T – transport
setting
Always set the control dial to the T position when
the vaporizer is being disconnected from the
anesthesia workstation or is connected to the
parking holder.
1 Press the 0 button (A).
2 Turn the control dial (B) clockwise to the
T position – the 0 key engages.
3 Engage the locking lever (C) on the plug-in
adapter in the control dial.
NOTE
Concentration values greater than 12 Vol% are
shown in inverted form in order to draw attention to
the danger of a high output concentration and re-
stricted flow range.
The concentration range above 12 Vol% can only
be reached by pressing the 0 key a second time.
002
WARNING
Danger to the patient and the user.
Delivery of incorrect concentration or escape
of anesthetic agent from the vaporizer.
If the control dial is set to 0 or above 0, do not
use the vaporizer at an angle of more than 10°.
003
