Dräger D-Vapor

Preparation
48
Instructions for use D-Vapor/D-Vapor 3000

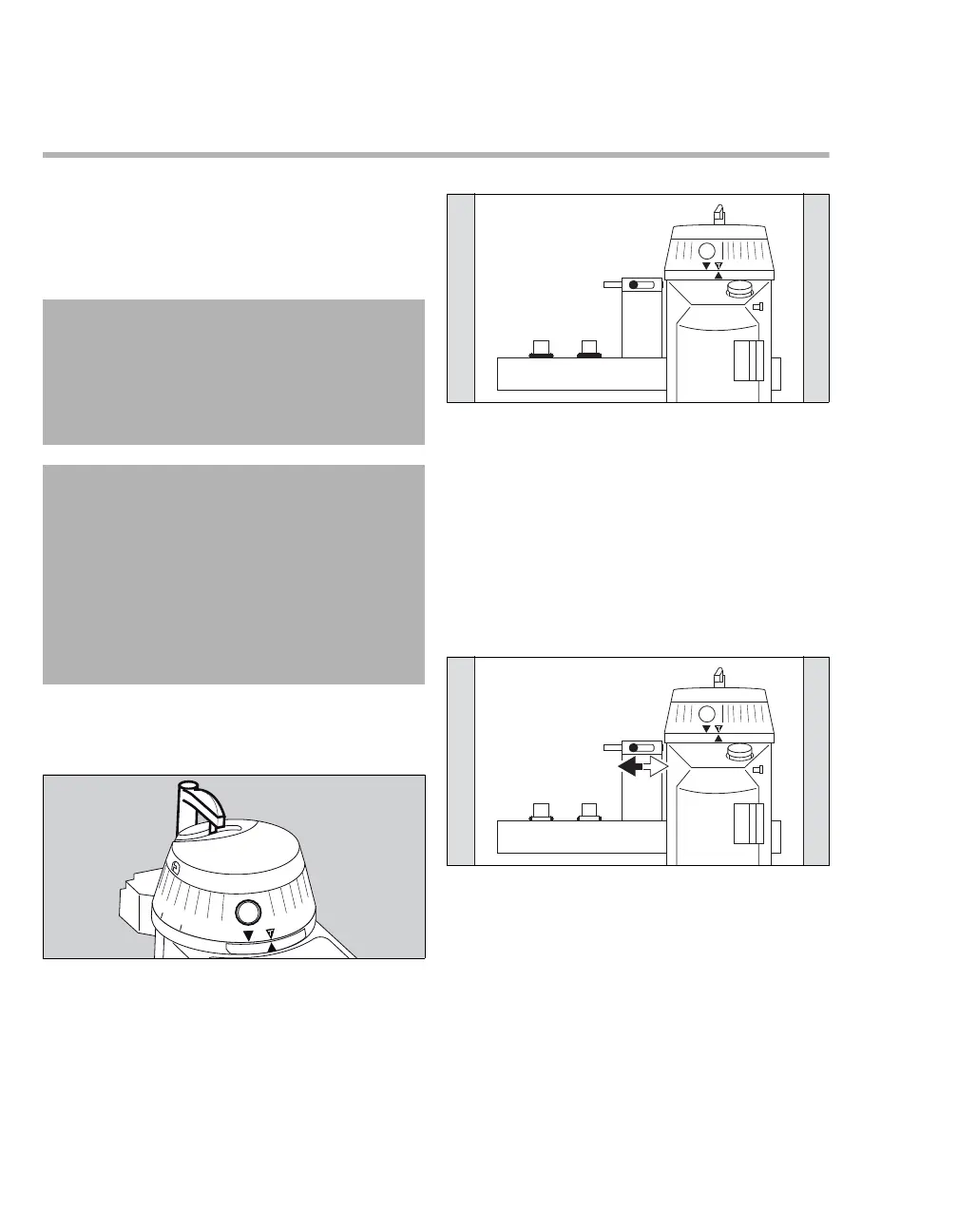

Connecting the vaporizer
 Observe instructions for use of the anesthesia
workstation.
 The control dial must be engaged in the
T position.
Vaporizer with plug-in adapter
1 The locking lever (A) must be in position over
the control dial.
2 On each pin of the plug-in connector (C), there
must be one sealing ring (B) that must not be
damaged. There should be no foreign objects
on the plug-in connector.
Anesthesia workstations with several
plug-in connectors
Two plug-in connectors and Interlock 2
 Before connecting the vaporizer, move the latch
of the Interlock 2 (A) to the opposite position. If
a vaporizer has already been connected and is
in operation, the vaporizer must first be set to
the 0 position.
WARNING
Risk of patient injury
Too high a fresh gas inlet pressure can result
in a pressure monitoring error and thus to un-
derdosing. The maximum fresh gas inlet pres-
sure must not exceed 200 kPa (29 psi).
WARNING
D-Vapor only
When using the anesthetic vaporizer D-Vapor
on a Titus anesthesia workstation, check that
the anesthesia workstation has been convert-
ed for operation with the anesthetic vaporizer
model D-Vapor, see page 40.
D-Vapor 3000 is not suitable for use with Titus
anesthesia workstations.
026
0
2
3
A
027058
0
B
B
CC
0
A
