Operating concept
 Only plug vaporizers with Auto Exclusion plug-
in adapters into Auto Exclusion plug-in
connectors.
When a vaporizer is switched on, a pin on the
underside of the plug-in adapter is pushed out. Via
an internal mechanism, this pin prevents other
vaporizers on adjacent connectors from being
switched on.

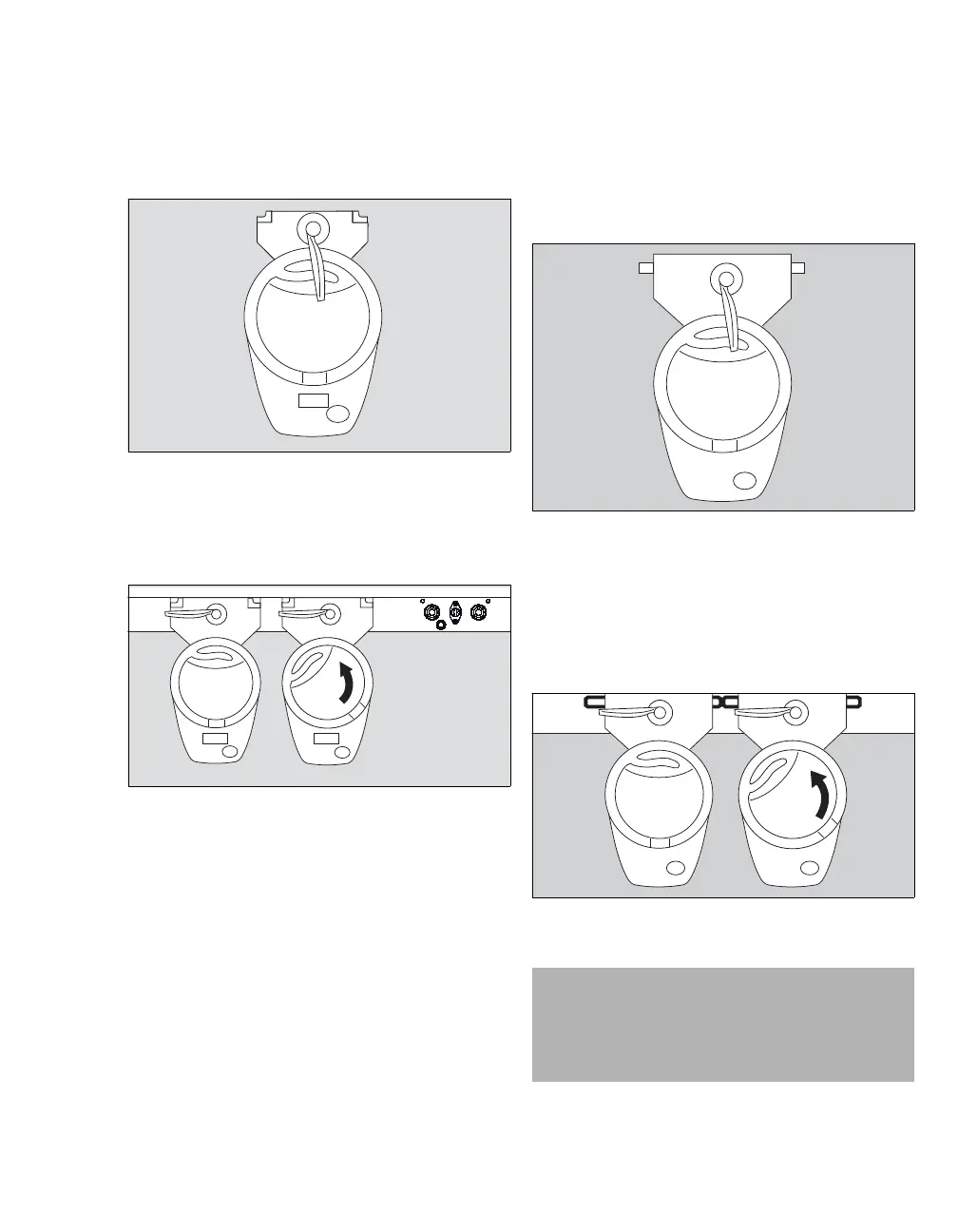

Illustration: left vaporizer blocked, right vaporizer
operational.
Plug-in adapter S-2000 with Interlock S
The S-2000 plug-in adapter with Interlock S is
connected to Selectatec-compatible plug-in
connectors.
For anesthesia workstations with several plug-
in connectors combined with Interlock S
When a vaporizer is switched on, two pins on the
side of the relevant plug-in adapter are pushed out.
These pins prevent other vaporizers on adjacent
plug-in connectors from being switched on.
Illustration: left vaporizer blocked, right vaporizer
operational.
049050
AUTO
EXCLUSION
AUTO
EXCLUSION
AUTO
EXCLUSION
007008
WARNING
When operating an anesthesia workstation
with three vaporizers and Interlock S,
Interlock S may cease to function effectively
when the middle vaporizer is disconnected.
