DSE Model 5510 Autostart Control and Instrumentation System Operators Manual
057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 31
5 DESCRIPTION OF CONTROLS

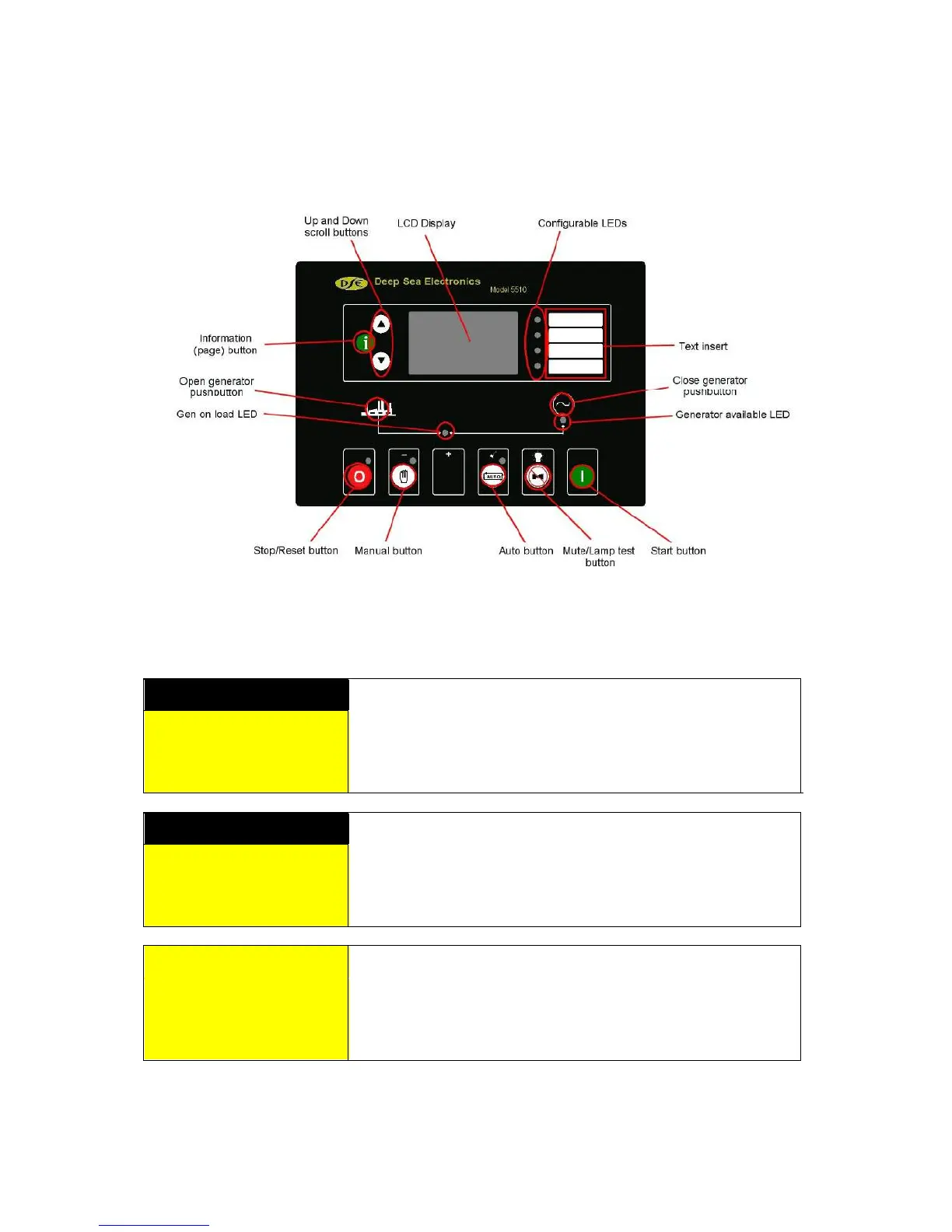

The following section details the function and meaning of the various controls on the module.
5.1 TYPICAL LCD DISPLAY SCREENS
5.1.1 TYPICAL STATUS DISPLAY
Status
Indicates that the module is in Automatic and that the system is in
standby. The unit will respond to an active remote start signal.
Waiting in Auto
Status Indicates that the module is in automatic and that a start sequence
has been initiated, by remote start input. The module is attempting
to crank the generator.
Cranking attempt
2 00.06
Auto mode
Generator available
If no alarms are present the LCD will display this default page.
L-N 229
229229
229v 0
00
0A
L-L 400 v 50.0hz
Pf 0.00 0KW
