DSE Model 5510 Autostart Control and Instrumentation System Operators Manual
057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 67

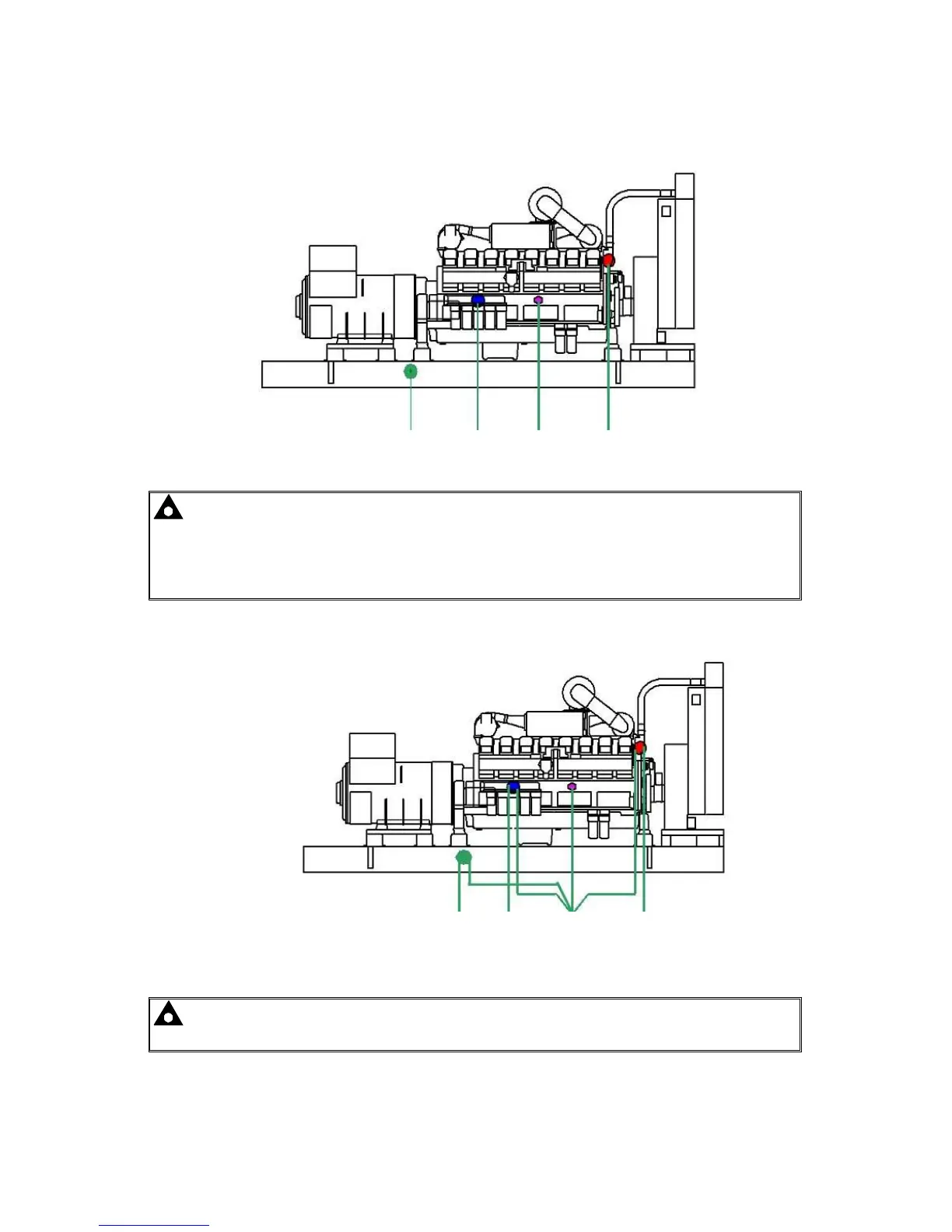

15 SENDER WIRING RECOMMENDATIONS
15.1 USING EARTH RETURN (SINGLE WIRE) SENDERS.
59 57 60 58
Fuel level
Oil
Pressure
EARTH
Coolant
temperature
NOTE:- . It is important that terminal 60 ( sender common ) is soundly connected to an
earth point on the ENGINE BLOCK, not within the control panel and must be a sound
electrical connection to the sender bodies. If you use PTFE insulating tape on the sender
thread when using earth return senders, ensure you do not insulate the entire thread as this
will prevent the sender body from being earthed via the engine block.
15.2 USING INSULATED RETURN (TWO WIRE) SENDERS.
59 57 60 58
Fuel
level
Oil
Pressur
e
EARTH
Coolant
temperature
NOTE:- . It is important that terminal 60 ( sender common ) is soundly connected to an
earth point on the ENGINE BLOCK, not within the control panel .
