DSE Model 5510 Autostart Control and Instrumentation System Operators Manual
057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 6
2.1 CLARIFICATION OF NOTATION USED WITHIN THIS PUBLICATION.
NOTE:
Highlights an essential element of a procedure to ensure correctness.
CAUTION!:
Indicates a procedure or practice which, if not strictly observed, could result
in damage or destruction of equipment.
WARNING!:
Indicates a procedure or practice which could result in injury to personnel or
loss of life if not followed correctly.
Deep Sea Electronics Plc owns the copyright to this manual, which cannot
be copied, reproduced or disclosed to a third party without prior written
permission.

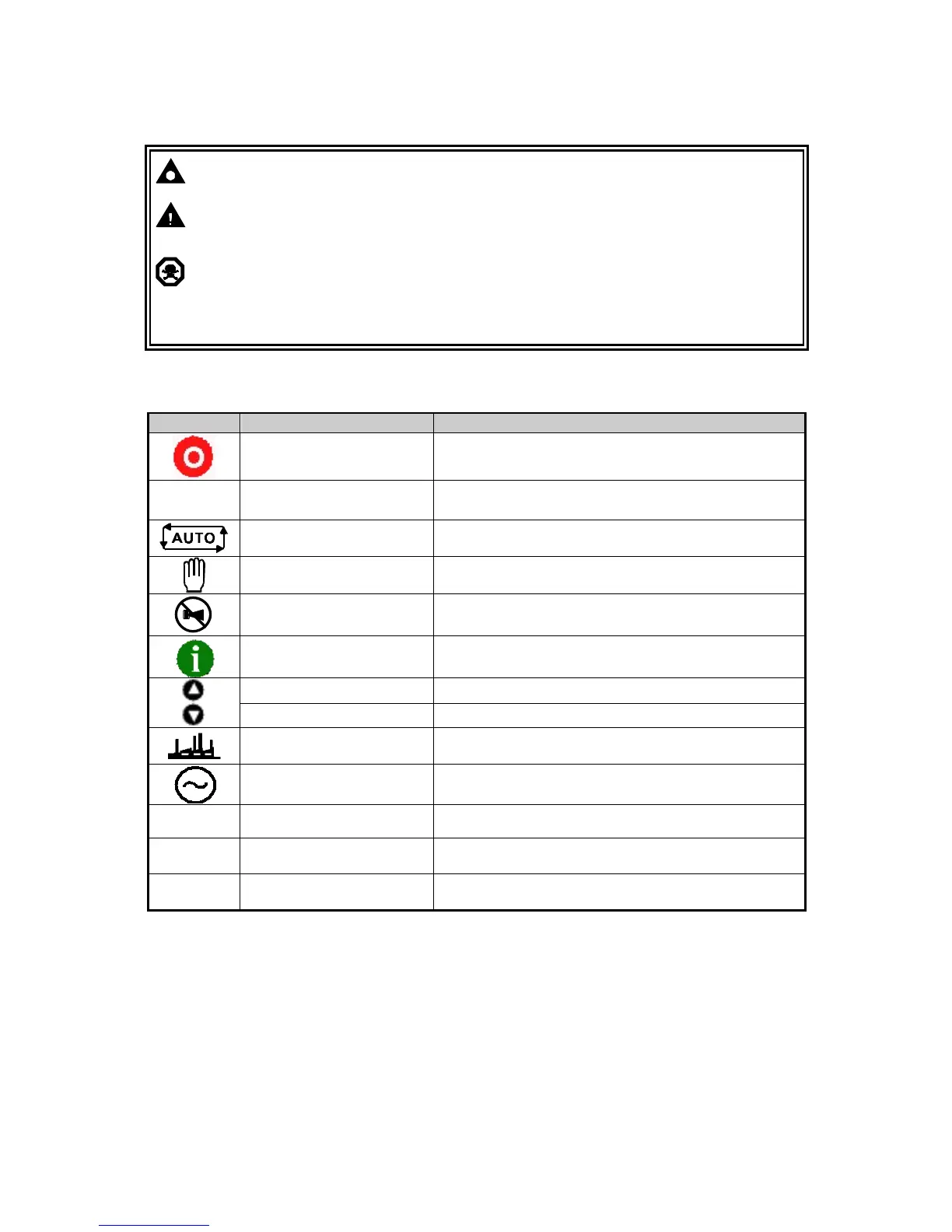

2.2 ICON DESCRIPTIONS
Symbol Meaning Description
Stop/Reset Stop the generator and reset any alarm conditions.
I
Start Start the generator (if in an appropriate mode).
Auto
The controller will automatically start the generator
when given a remote start command.
Manual
The controller will start the generator under manual
control. (Separate Start command may be necessary)
Alarm Mute and lamp test
Silences the audible warning device and illuminates all
LEDs to provide lamp test functionality.
Information Changes the display to another page
Up Selects the previous item on the page
Down Selects the next item on the page
Open generator
Open generator load switching device (manual mode
only)
Close generator
Close generator load switching device (manual mode
only)
Accept Edit or save current selection (configuration mode only)
+
Increase Increase current selection (configuration mode only)
-
Decrease Decrease current selection (configuration mode only)
