Before Using

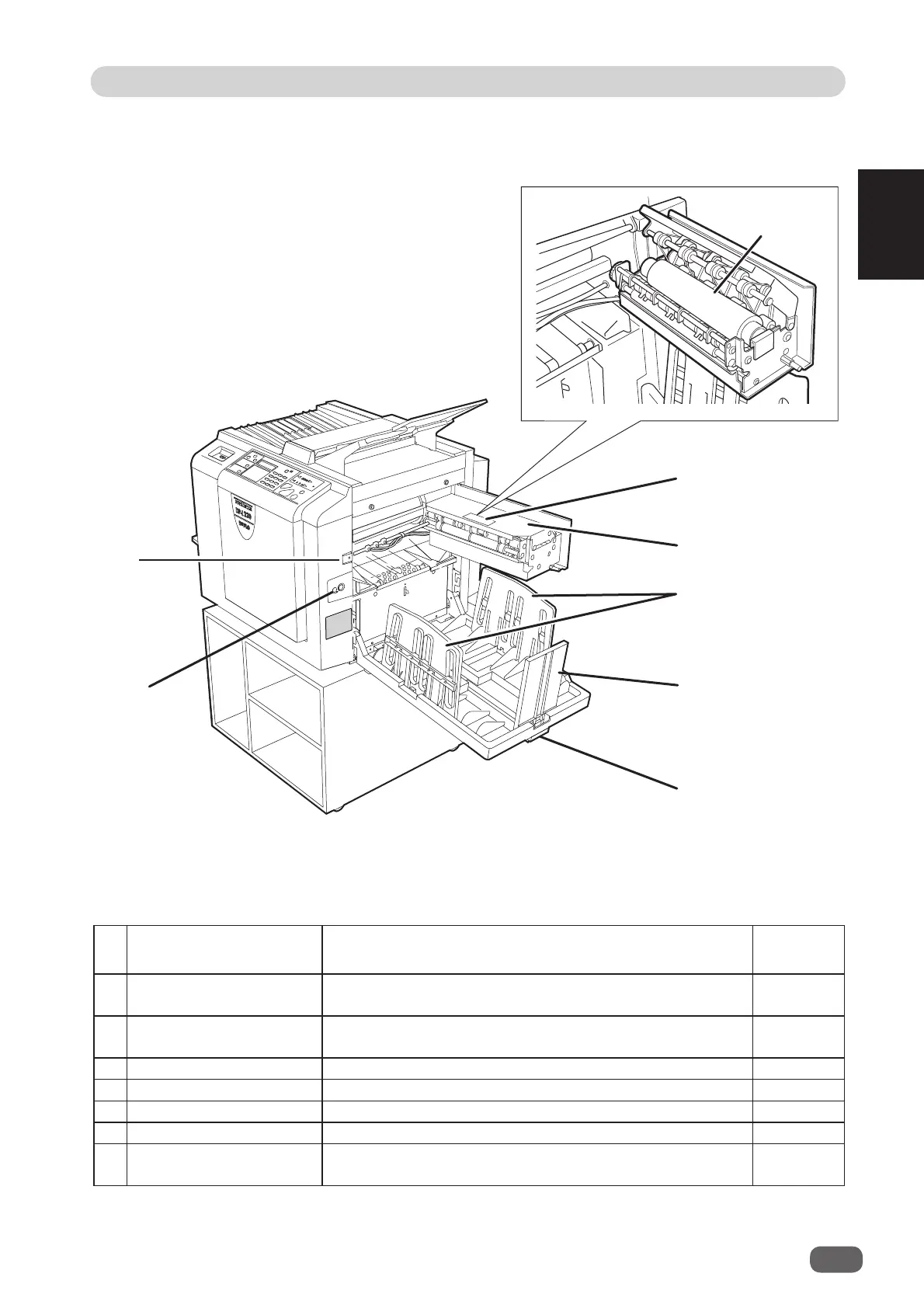

Part Names and Their Functions
No. Name Function
Reference
page
14
Master ejection box open
button
Press to open the master ejection box.
84 ,82
15
JOG switch Press and hold to rotate the drum for a set time. Use to
remove paper jams, etc..
67
16 Print tray Holds the printed paper. 18
17 Paper stopper Slide to match the size of printed paper. 18
18 Side fences Slide to match the size of printed paper. 18
19 Master ejection box Open to replace the master ejection core, etc.. 65 ,84
20
Master ejection box
cover open lever
Press to open the master ejection box cover. Use when
disposing of used master, etc.
65
14
15
20
19
18
17
16
Master ejection
core
To Next Page
