16

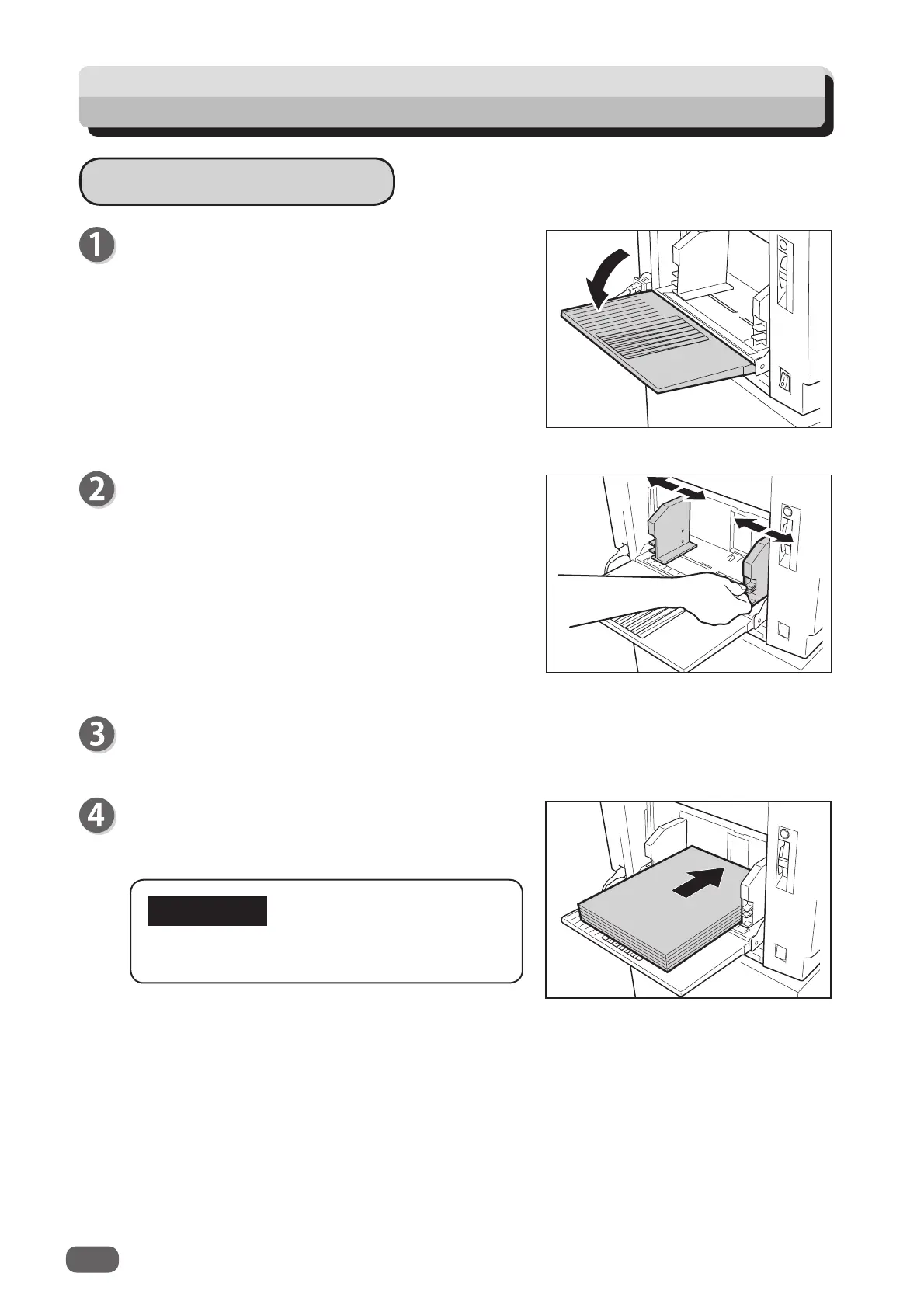

Open the support tray
.
Preparing for Printing
IMPORT
ANT
How to Set Papers
Hold the lever and adjust the side guides to the
paper size.
Loosen sheets and align them.
Load a stack of aligned sheets between the side
guides and press the stack lightly toward the
machine.
●
Y
ou can load the feed tray with approximately
1,300 sheets of 64 gsm high-grade paper
.
33
35
Table of Contents
Default Chapter
6
Notes on Safety (Please Read and Observe)
6
Precautions for Use
6
Locations of Warning Labels
11
Function Index
12
Table of Contents
15
Chapter 1 Before Using
19
Part Names and Their Functions
20
Printer Appearance
20
Control Panel
24
Main Screen
26
Turning Power ON/OFF
27
Turning on Printer Power
27
Turning off Printer Power
28
Standard Mode
28
UID Control Function
29
Document/Printing Paper Specifi Cation
30
Acceptable Documents
30
Acceptable Printing Paper
30
How Master Making and Printing Is Performed
31
Master Making
31
Printing
31
Chapter 2 Chapter 1
33
Basic Operations
33
Preparing for Printing
34
How to Set Papers
34
Adjusting Paper Feed Pressure
35
How to Supply or Replace Paper While Printing
35
How to Set the Print Tray
36
How to Adjust Printed Pages
37
Loading Documents
38
Loading Document
38
How to Load Document
38
Basic Printing
39
Printing Using Basic Functions
39
Basic Printmaking
40
Selecting Master Making Size
41
Master Making Area
41
How to Set Master Making Size
41
Selecting Image Mode
43
Text, Text/Photo, Photo
43
Adjusting the Print Speed
44
Print Speed Adjustment
44
How to Adjust the Print Speed
44
Enlargement and Reduction
45
Enlarging/Reducing from Standard-Size Document to Standard-Size Paper
45
Free Zoom
47
Minor Reduction
49
Chapter 3 Printing with Useful Function
51
IN 1" Layout
52
How to Set 2 in 1
53
Adjusting Darkness
54
Master Darkness
54
How to Adjust the Master Darkness
54
Batch Print/Sequential Batch Print
56
How to Enter Batch Print
57
How to Enter Sequential Batch Print
60
Dividing Sections with Tape (Available Only with Tape Cluster Unit Installed)
63
Adjusting the Print Position
64
Print Position Adjustment
64
How to Adjust the Print Position
64
Chapter 4 Other Functions
65
Memory Mode
66
How to Save the Settings
66
How to Retrieve the Settings
68
How to Clear the Settings
69
Confi Dential Safeguard
70
How to Set Confi Dential Safeguard
70
Online Mode (Available Only with Interface Kit Installed)
71
Online Mode( Available Only with Interface Kit Installed)
71
Making Prints Using Personal Computer
71
How to Make Prints in Online Mode
71
Energy Save Mode
72
Ink Save Mode
73
How to Set Ink Save Mode
73
Total Counter Display
74
Chapter 5 Replacing Consumables
75
Replacing the Ink Pack
76
How to Replace the Ink Pack
76
Replacing the Roll Master
79
How to Replace the Roll Master
79
Disposing of Used Master
83
How to Dispose of Used Master
83
Replacing the Drum Unit
85
How to Remove the Drum Unit
85
How to Set Drum Unit
87
Troubleshooting
89
Chapter 6 If a Problem Occurs
90
Power Does Not Turn on
90
Master Making/Printing Is Not Possible
90
When Messages Appear
91
Service Call
93
Supplying Paper While Printing
94
If Paper Runs out During Printing
94
Adding Paper While Printing
94
Changing Paper Selection While Printing
95
Paper Jams
98
Paper Jam on the Feeder Side (Feed Tray)
98
Paper Jam on the Ejection Side (Print Tray Side)
99
When a Master Ejection Error Has Occurred
102
When a Master Setting Error Has Occurred
105
How to Remove the Master
105
Chapter 7 Daily Maintenance
107
Daily Maintenance
108
Specifi Cations
109
Chapter 8
110
Specifi Cations
110
5
