Operation
24 Operating Instructions 171/173 - 02.0 - 09/2019

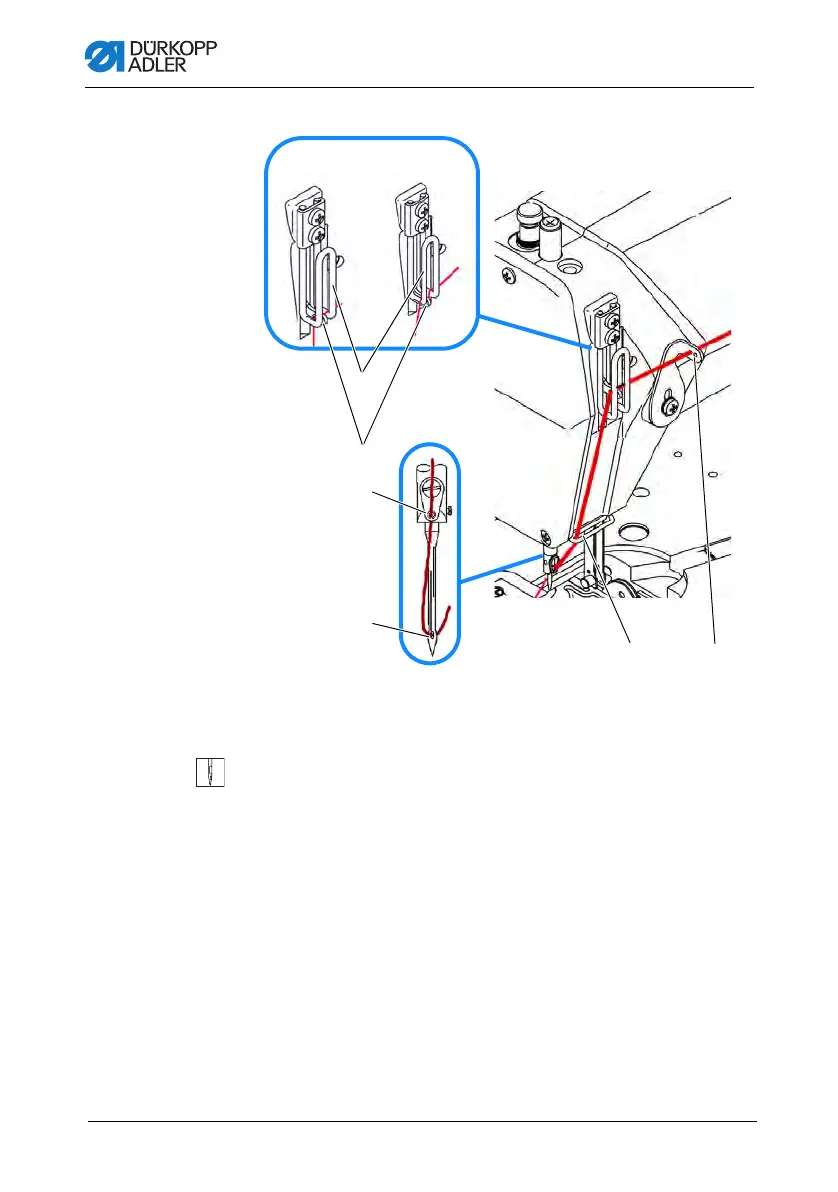

Fig. 6: Threading the needle thread (3)
10. Feed the thread from the right to the left through
the deflector (14).
11. Insert the thread from right to left through the thread
regulator (9) and thread lever (10):
• For tight/normal seams (A):
Feed the thread through the thread lever (10) and then
directly downwards.
• For balloon stitch and very elastic threads (B): Feed
the thread through the thread lever (10) and then via the
left bar of the thread regulator (9).
12. Feed the thread from above downwards through the thread
guide (13).
13. Feed the thread from above forwards and downwards to the
rear through the thread guide (11).
(9) - Needle thread regulator
(10)- Thread lever
(11)- Thread guide
(12)- Needle eye
(13)- Thread guide
(14)- Deflector
