Setup
Operating Instructions 171/173 - 02.0 - 09/2019 79
6. Tighten the screw (3).

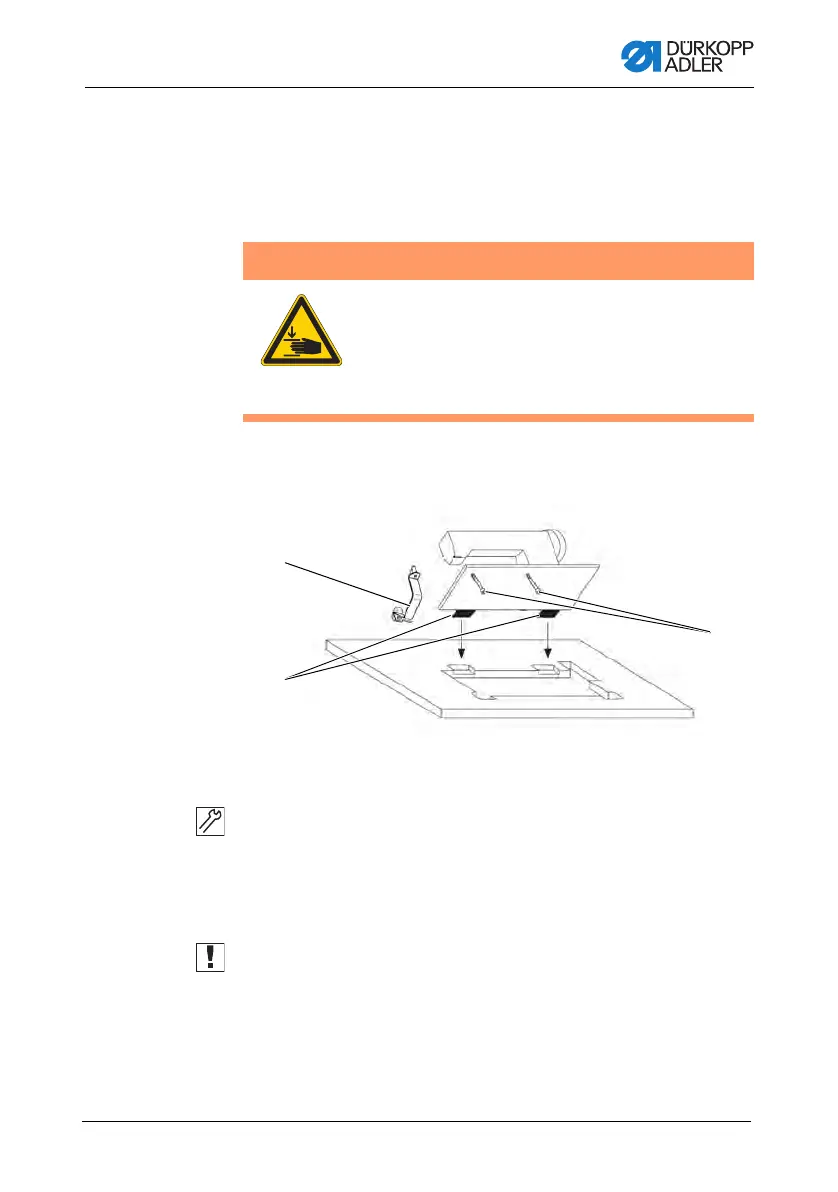

7.7 Inserting the machine head
Fig. 44: Inserting the machine head
To insert the machine head:
1. Insert the machine upper section at a 45° angle from
above with the hinge upper parts (2) in the rubber inlays.
2. Tilt the machine head.
Important
Remove the protective bar (1) and the screws (3).
3. Erect the machine head.
WARNING
Risk of injury!
The machine head is heavy and can cause
crushing injuries if handled in a careless manner.
NEVER stick your hands between machine head
and tabletop.
(1) - Protective bar
(2) - Hinge upper parts
(3) - Screws
