4.11.3 Lifting the carrier roller
To sew corners or radii, the carrier roller can be lifted a little using
the button on the machine arm.
Using the lever, the carrier roller can be raised completely out of
the sewing area.

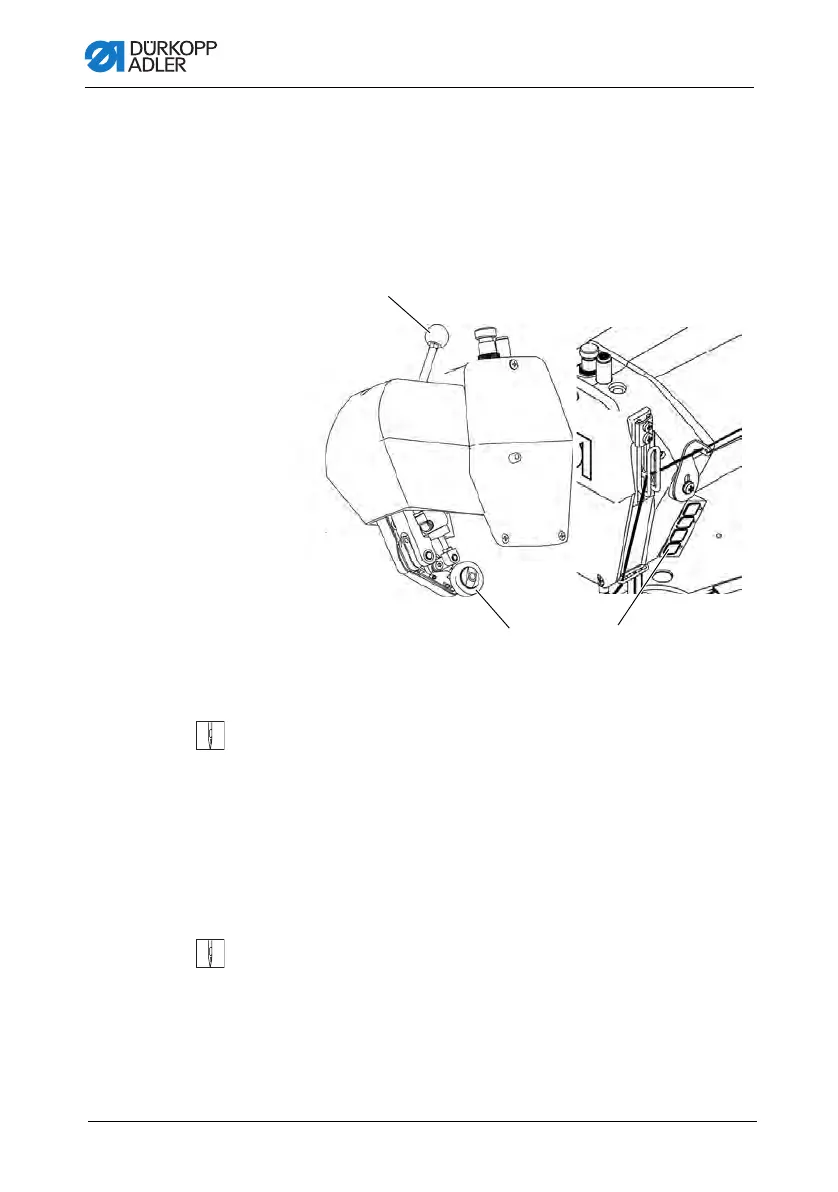

Fig. 25: Lifting the carrier roller
To lift the carrier roller briefly:
1. Press the button (3).
 The LED on the button (3) lights up.
The carrier roller (2) is raised.
2. Press the button (3) again.
 The LED on the button (3) goes out.
The carrier roller (2) is lowered.
To lift the carrier roller completely:
1. Pull the lever (1) to the front.
 The lever (1) engages.
The carrier roller (2) is completely raised.
(1) - Lever
(2) - Carrier roller
(3) - Button
