Setup
72 Operating Instructions 171/173 - 02.0 - 09/2019
7.3 Assembling the stand

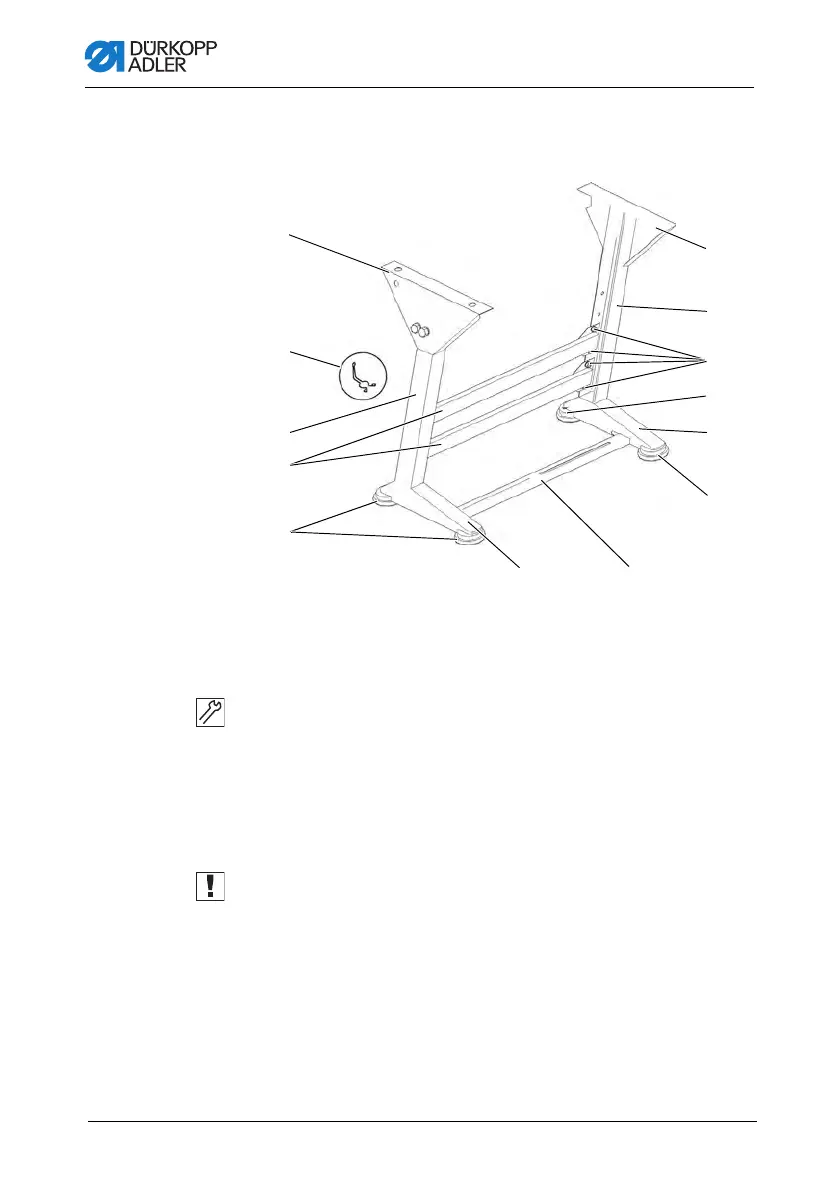

Fig. 38: Assembling the stand
To assemble the stand:
1. Screw the cross bars (4) onto the stand bars (3).
2. Screw the cross strut (7) onto the foot struts (6).
3. Screw the head sections (1) onto the stand bars (3).
4. Push the stand frame feet (5) onto the foot struts (6).
Important
The frame must sit evenly on the ground with all 4 feet.
5. Tighten the screws (8).
6. Screw the oil can holder (2) at the rear to the upper cross
bar (4).
(1) - Head sections
(2) - Oil can holder
(3) - Stand bars
(4) - Cross bars
(5) - Stand feet
(6) - Foot struts
(7) - Cross strut
(8) - Screws
⑥⑦
