Setup
Operating Instructions 171/173 - 02.0 - 09/2019 83
14. Assemble the handwheel (1).
7.10 Assembling the knee lever

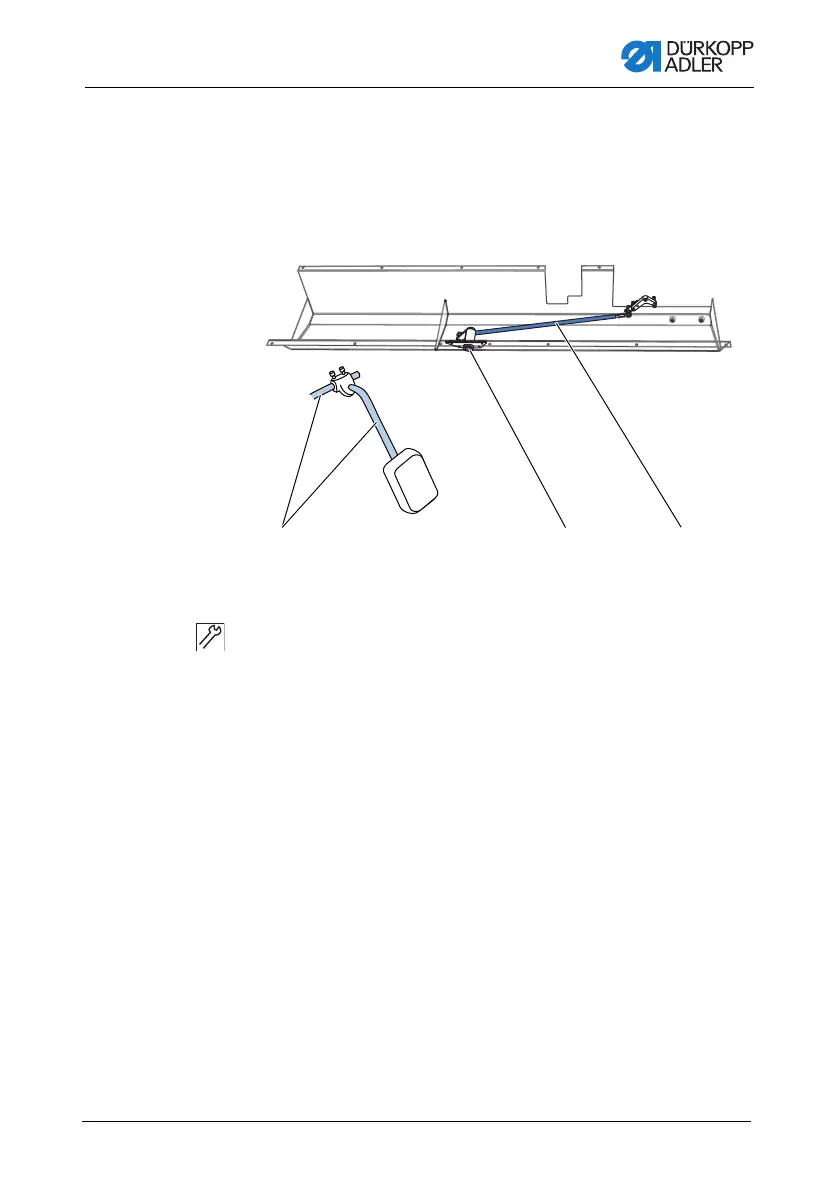

Fig. 49: Assembling the knee lever
To assemble the knee lever:
1. Tilt the machine head.
2. Assemble the transmission rod (3) in the oil pan.
3. Screw the knee lever rods (1) together.
4. Guide the knee lever rod (1) through the hole (2) in the oil pan.
5. Connect the knee lever rod (1) to the transmission rod (3).
(1) - Knee lever rod
(2) - Hole
(3) - Transmission rod
①②③
