Setup
Operating Instructions 171/173 - 02.0 - 09/2019 73
7.4 Tabletop
7.4.1 Completing the tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use the dimen-
sions given in the diagram Appendix ( p. 103) as a template.

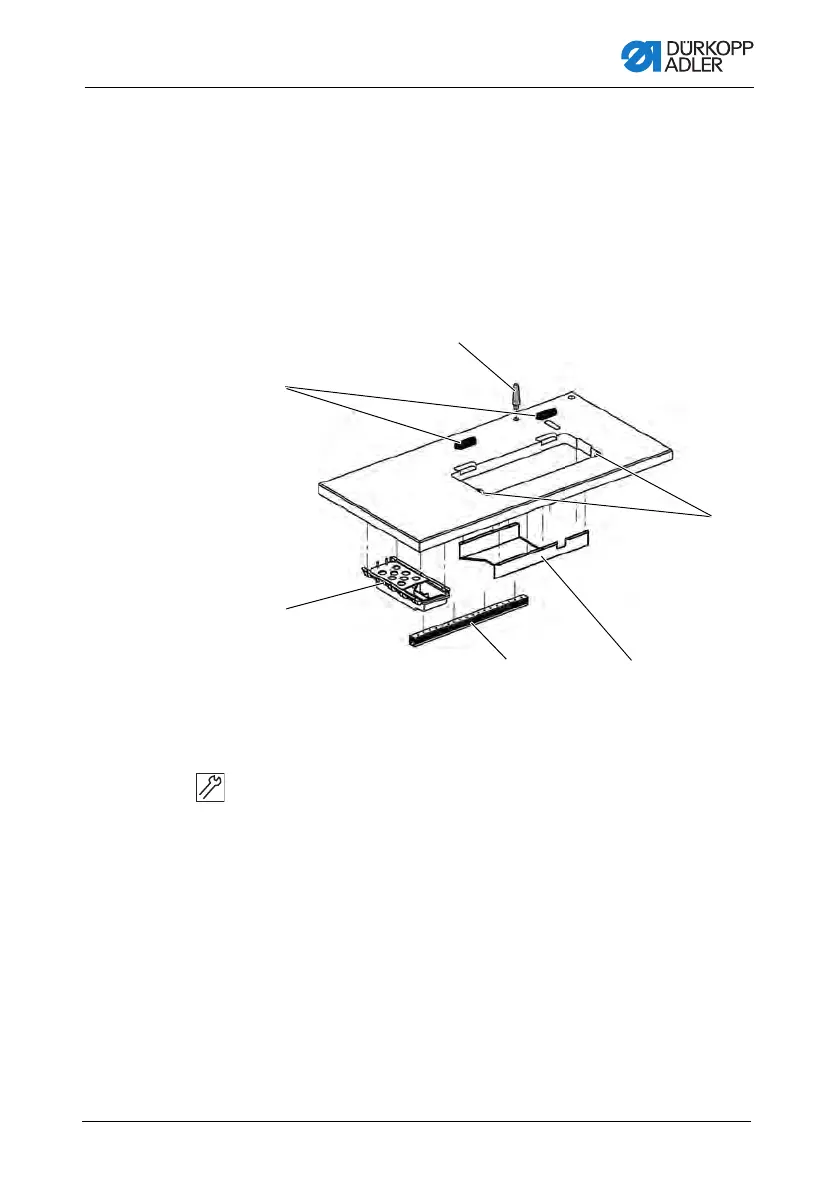

Fig. 39: Completing the tabletop
To complete the tabletop:
1.
Insert the machine head support (1) in the hole of the table plate.
(only required for class 171).
2. Fit the rubber mounts (2) into the recesses.
3. Fit the rubber corners into the corners (6) in the tabletop cut-
out.
4. Screw the drawer (3) on the left under the tabletop.
5. Screw the cable duct (4) at the back under the tabletop.
6. Mark the fastening positions of the oil pan (5).
7. Screw the oil pan (5) with wood screws under the tabletop
cutout.
(1) - Machine head support (only 171)
(2) - Rubber mounts
(3) - Drawer
(4) - Cable duct
(5) - Oil pan
(6) - Corners
