Setup
Operating Instructions 171/173 - 02.0 - 09/2019 75
7.4.3 Assembling the reel stand

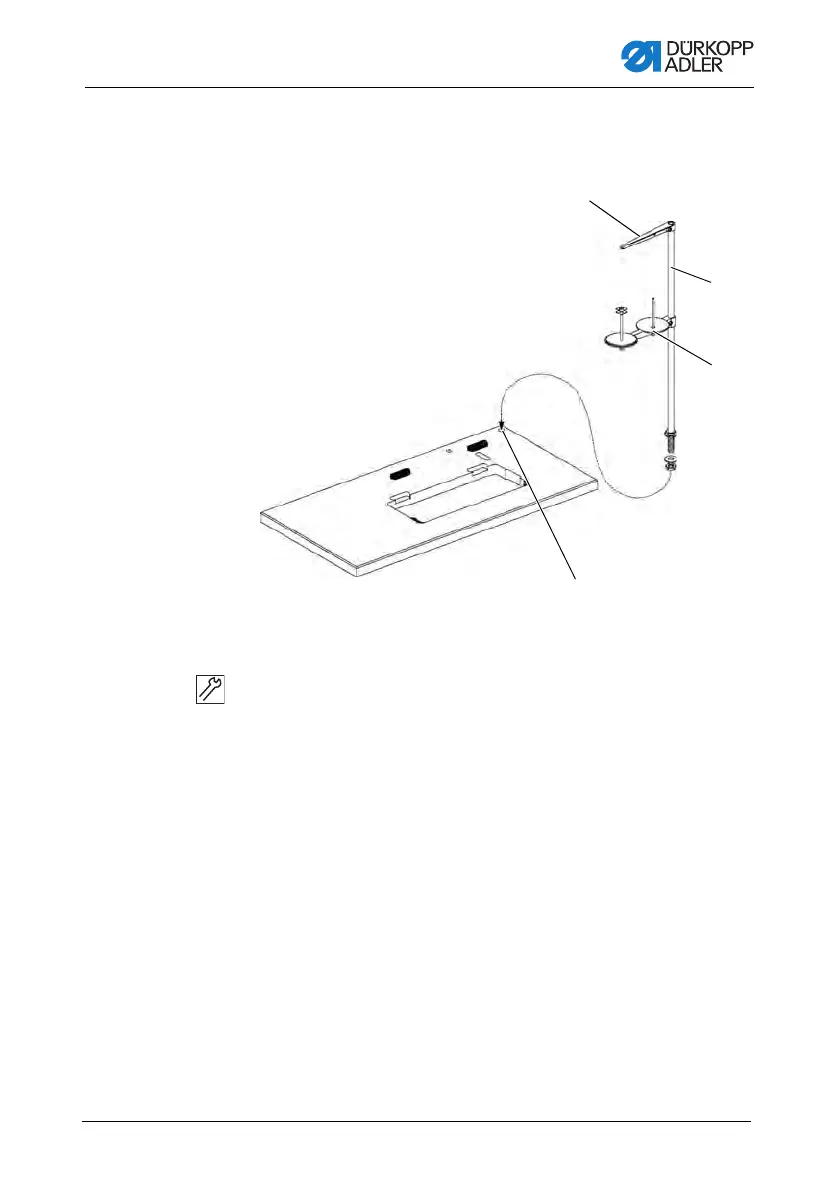

Fig. 41: Assembling the reel stand
To assemble the reel stand:
1. Insert the reel stand (2) in the hole (4).
2. Fasten the reel stand (2) with nut and washer.
3. Screw the thread reel holder (3) and the thread guide (1) onto
the reel stand (2)
The thread guide (1) and the thread reel holders (3) must be
exactly parallel to each other.
(1) - Thread guide
(2) - Reel stand
(3) - Thread reel holder
(4) - Hole
