6.3 Servicing the pneumatic system
6.3.1 Setting the operating pressure
Proper setting
Refer to the Technical data ( p. 99) chapter for the permissible
operating pressure. The operating pressure cannot deviate by
more than ± 0.5 bar.
Check the operating pressure on a daily basis.

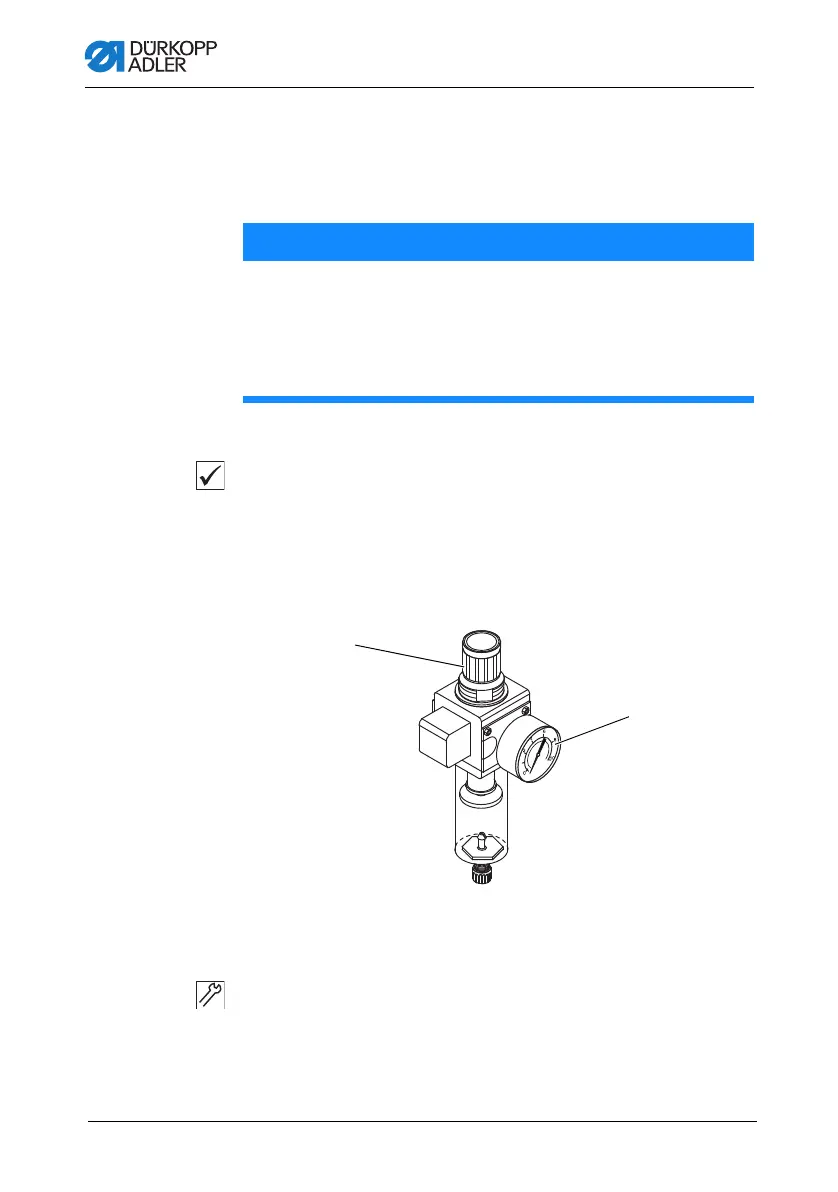

Fig. 35: Setting the operating pressure
To set the operating pressure:
1. Pull the pressure controller (1) up.
NOTICE
Property damage from incorrect setting!
Incorrect operating pressure can result in damage to the
machine.
Ensure that the machine is only used when the operating
pressure is set correctly.
(1) - Pressure controller (2) - Pressure gage
②
①
